RM38N0EC _58 Vehicle Interior _111833 LIGHTING (INT) _0499878 INSTRUMENT PANEL BOX LIGHT A

LIGHTING (INT) INSTRUMENT PANEL BOX LIGHT REMOVAL

PROCEDURE

Hide Display 55900 1.REMOVE AIR CONDITIONING CONTROL ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING PANEL>REMOVAL202111,999999,_58,_111841,_0499807,RM100000001Z0A5,

Hide Display 58925B 2.REMOVE UPPER CONSOLE BOX INSULATOR

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202111,202203,_58,_111843,_0501135,RM100000001Z52W_01_0127,202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0127,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0127,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0127,

Hide Display 81080W 3.REMOVE NO. 3 INTERIOR ILLUMINATION LIGHT ASSEMBLY

a.

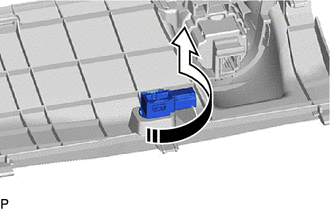

E475222C01

0,0 0,0 false

V113147

Remove in this Direction

Turn the No. 3 interior illumination light assembly as shown in the illustration to remove it.
