LIGHTING (INT) GLOVE BOX LIGHT REMOVAL

PROCEDURE

Hide Display 67913B 1.REMOVE FRONT DOOR SCUFF PLATE RH

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202111,202203,_58,_111843,_0501311,RM100000001Z5HB_02_0001,202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0001,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0001,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0001,

Hide Display 62111C 2.REMOVE COWL SIDE TRIM BOARD RH

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202111,202203,_58,_111843,_0501311,RM100000001Z5HB_02_0003,202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0003,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0003,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0003,

Hide Display 55607 3.REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202111,202203,_58,_111843,_0501135,RM100000001Z52W_01_0026,202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0026,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0026,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0026,

Hide Display 55550 4.REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202111,202203,_58,_111843,_0501135,RM100000001Z52W_01_0029,202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0029,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0029,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0029,

Hide Display 5.REMOVE CONSOLE BOX ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202111,999999,_58,_111843,_0501136,RM100000001Z534,

Hide Display 55433B 6.REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202111,202203,_58,_111843,_0501135,RM100000001Z52W_01_0044,202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0044,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0044,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0044,

Hide Display 81260 7.REMOVE GLOVE BOX LIGHT ASSEMBLY

a.

E447261

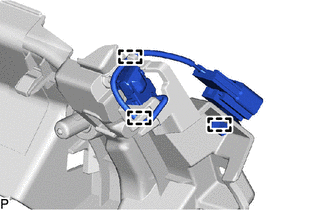

Disengage the 3 clamps.

b.

E447262

Disengage the 2 claws and guide to remove the glove box light assembly.
