RM38N0EC _51 Engine / Hybrid System _111785 M20C-FKS, M20D-FKS ENGINE CONTROL _0503272 ACCELERATOR PEDAL A

M20C-FKS, M20D-FKS ENGINE CONTROL ACCELERATOR PEDAL REMOVAL

PROCEDURE

Hide Display 67914B 1.REMOVE FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202111,202203,_58,_111843,_0501311,RM100000001Z5HB_02_0001,202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0001,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0001,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0001,

Hide Display 62112A 2.REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202111,202203,_58,_111843,_0501311,RM100000001Z5HB_02_0003,202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0003,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0003,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0003,

Hide Display 55606 3.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202111,202203,_58,_111843,_0501135,RM100000001Z52W_01_0006,202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0006,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0006,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0006,

Hide Display 78110K 4.REMOVE ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY

NOTICE:: ·

Avoid physical shock to the accelerator pedal (with sensor) rod assembly.

·

Do not disassemble the accelerator pedal (with sensor) rod assembly.

·

The accelerator pedal (with sensor) rod assembly does not require lubrication.

·

Do not apply oil or other lubricants to the accelerator pedal (with sensor) rod assembly. If applied, the accelerator pedal (with sensor) rod assembly must be replaced.

Disconnect the accelerator pedal (with sensor) rod assembly connector.

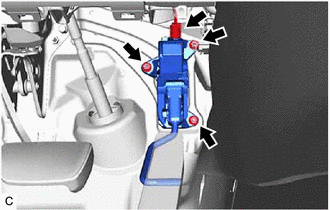

Remove the 3 nuts and disconnect the rod of the accelerator pedal (with sensor) rod assembly from the accelerator pedal assembly to remove the accelerator pedal (with sensor) rod assembly.

NOTICE:: If the accelerator pedal (with sensor) rod assembly has been struck or dropped, replace it.

Hide Display 78118 5.REMOVE ACCELERATOR PEDAL PAD

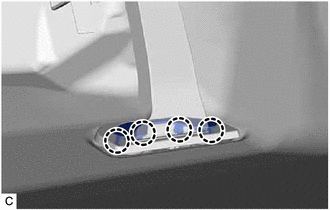

Disengage the 4 claws and remove the accelerator pedal pad from the accelerator pedal assembly.

Hide Display 78010F 6.REMOVE ACCELERATOR PEDAL ASSEMBLY

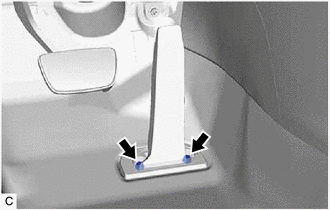

Remove the 2 bolts.

2.333,1.708 2.333,1.427 false 2.344,3.063 2.344,2.781 false 2.26,1.698 2.573,1.896 0.313,0.198 10 false *a 2.271,3.052 2.583,3.25 0.313,0.198 10 false *a

*a	Vehicle Body
	Remove in this Direction (1)
	Remove in this Direction (2)

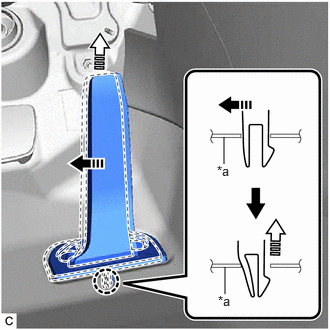

Push the accelerator pedal assembly in the direction indicated by the arrow (1) shown in the illustration to disengage the claw.

Pull the accelerator pedal assembly in the direction indicated by the arrow (2) shown in the illustration to remove it.
