K120 / K120F / K121 / K121F CVT OIL COOLER REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during transmission oil cooler removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of CVT Fluid	Air bleed the oil pump with motor assembly	Stop and Start System	(202111,999999,_51,_111803,_0509671,RM1000000020651,)
Replacement of CVT Fluid	ATF thermal degradation estimate reset	The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly	(202111,202303,_52,_111806,_0499726,RM100000001YZJA,202303,999999,_52,_111806,_0584611,RM1000000029R1M,)

PROCEDURE

Hide Display 51420 1.REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (LUBRICATION)>OIL PAN AND OIL LEVEL SENSOR>REMOVAL202111,202303,_51,_111787,_0503327,RM100000001ZE5M_02_0036,202303,999999,_51,_111787,_0503348,RM100000002B2JU_01_0021,

Hide Display 53737B 2.REMOVE FRONT FENDER APRON SEAL LH

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202111,202203,_51,_111786,_0499722,RM100000001YZIH_01_0141,202203,202303,_51,_111786,_0499722,RM1000000022F78_01_0141,202303,202406,_51,_111786,_0499722,RM100000002A0JY_01_0141,202406,202409,_51,_111786,_0499722,RM100000002MXOE_01_0141,202409,999999,_51,_111786,_0499722,RM100000002OLFC_01_0141,

Hide Display 3.DRAIN CONTINUOUSLY VARIABLE TRANSAXLE FLUID

Click hereDrivetrain>K120 / K120F / K121 / K121F (CVT)>OIL PAN>REMOVAL202111,202203,_52,_111806,_0499732,RM100000001YZL6_02_0002,202203,202406,_52,_111806,_0499732,RM1000000022ETK_02_0002,202406,999999,_52,_111806,_0499732,RM100000002MPYO_02_0002,

Hide Display 16264D 4.REMOVE FLOW SHUTTING VALVE (WATER VALVE)

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (COOLING)>FLOW SHUTTING VALVE (for CVT)>REMOVAL202111,999999,_51,_111791,_0503630,RM100000001ZF9R,

Hide Display 16264D 5.REMOVE NO. 2 WATER BY-PASS HOSE

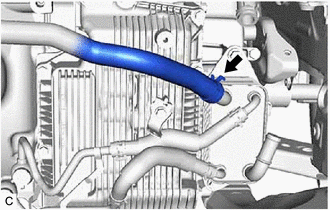

Slide the clip and remove the No. 2 water by-pass hose from the transmission oil cooler.

Hide Display 16261G 6.DISCONNECT NO. 1 WATER BY-PASS HOSE

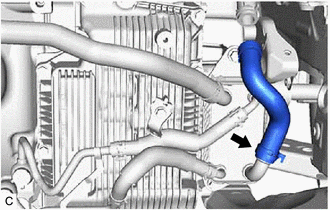

Slide the clip and disconnect the No. 1 water by-pass hose from the transmission oil cooler.

Hide Display 7.DISCONNECT OIL COOLER HOSE

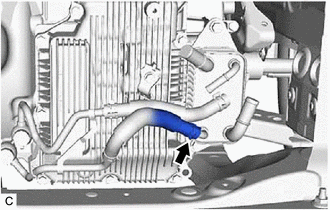

Slide the clip and disconnect the outlet No. 1 oil cooler hose from the transmission oil cooler.

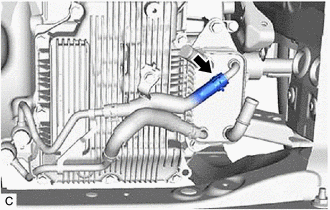

Slide the clip and disconnect the inlet oil cooler hose from the transmission oil cooler.

Hide Display 33493C 8.REMOVE TRANSMISSION OIL COOLER

Remove the 2 bolts and transmission oil cooler from the rear transaxle case sub-assembly.

HINT:: Use a container to catch any coolant and CVT fluid which flow out of the transmission oil cooler.
