RM38N0EC _51 Engine / Hybrid System _111791 M20C-FKS, M20D-FKS COOLING _0503630 FLOW SHUTTING VALVE(for CVT) A

M20C-FKS, M20D-FKS COOLING FLOW SHUTTING VALVE(for CVT) REMOVAL

PROCEDURE

Hide Display 53896B 1.REMOVE FRONT FENDER FRONT SPLASH SHIELD LH

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202111,202203,_51,_111786,_0499722,RM100000001YZIH_01_0304,202203,202303,_51,_111786,_0499722,RM1000000022F78_01_0304,202303,202406,_51,_111786,_0499722,RM100000002A0JY_01_0304,202406,202409,_51,_111786,_0499722,RM100000002MXOE_01_0304,202409,999999,_51,_111786,_0499722,RM100000002OLFC_01_0304,

Hide Display 53895B 2.REMOVE FRONT FENDER FRONT SPLASH SHIELD RH

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202111,202203,_51,_111786,_0499722,RM100000001YZIH_01_0303,202203,202303,_51,_111786,_0499722,RM1000000022F78_01_0303,202303,202406,_51,_111786,_0499722,RM100000002A0JY_01_0303,202406,202409,_51,_111786,_0499722,RM100000002MXOE_01_0303,202409,999999,_51,_111786,_0499722,RM100000002OLFC_01_0303,

Hide Display 51441 3.REMOVE NO. 1 ENGINE UNDER COVER

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202111,202203,_51,_111786,_0499722,RM100000001YZIH_01_0003,202203,202303,_51,_111786,_0499722,RM1000000022F78_01_0003,202303,202406,_51,_111786,_0499722,RM100000002A0JY_01_0003,202406,202409,_51,_111786,_0499722,RM100000002MXOE_01_0003,202409,999999,_51,_111786,_0499722,RM100000002OLFC_01_0003,

Hide Display 51420 4.REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202111,202203,_51,_111786,_0499722,RM100000001YZIH_01_0004,202203,202303,_51,_111786,_0499722,RM1000000022F78_01_0004,202303,202406,_51,_111786,_0499722,RM100000002A0JY_01_0004,202406,202409,_51,_111786,_0499722,RM100000002MXOE_01_0004,202409,999999,_51,_111786,_0499722,RM100000002OLFC_01_0004,

Hide Display 5.DRAIN ENGINE COOLANT

Click hereGeneral>MAINTENANCE>M20C-FKS, M20D-FKS COOLANT>REPLACEMENT202111,999999,_V1,_112220,_0503655,RM100000001ZFD9_02_0001,

Hide Display 12601B 6.REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202111,202203,_51,_111786,_0499722,RM100000001YZIH_01_0288,202203,202303,_51,_111786,_0499722,RM1000000022F78_01_0288,202303,202406,_51,_111786,_0499722,RM100000002A0JY_01_0288,202406,202409,_51,_111786,_0499722,RM100000002MXOE_01_0288,202409,999999,_51,_111786,_0499722,RM100000002OLFC_01_0288,

Hide Display 17750A 7.REMOVE INLET AIR CLEANER ASSEMBLY

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE CONTROL)>THROTTLE BODY>REMOVAL202111,999999,_51,_111785,_0503267,RM100000001ZE11_01_0028,

Hide Display 8.REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE CONTROL)>THROTTLE BODY>REMOVAL202111,999999,_51,_111785,_0503267,RM100000001ZE11_01_0027,

Hide Display 16671 9.REMOVE FLOW SHUTTING VALVE (WATER VALVE)

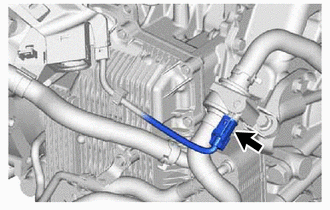

a.

A478265

Disconnect the flow shutting valve (water valve) connector.

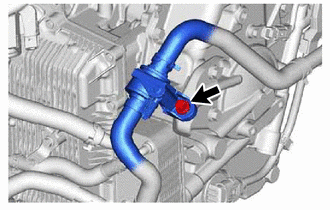

b.

A478266

Remove the bolt and flow shutting valve (water valve).

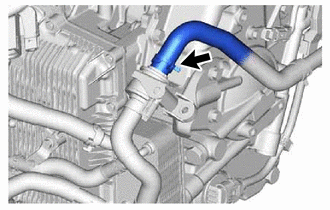

c.

A478267

Slide the clip and disconnect the No. 4 water by-pass hose from the flow shutting valve (water valve).

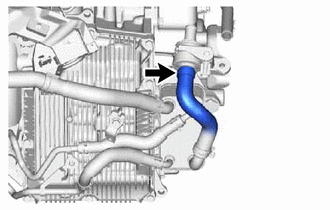

d.

A478268

Slide the clip and disconnect the No. 2 water by-pass hose from the flow shutting valve (water valve).
