NETWORKING  CAN COMMUNICATION SYSTEM(for SFTM Made HV Model)  Parking Assist ECU Communication Stop Mode


DESCRIPTION

Detection Item Symptom Trouble Area
Parking Assist ECU Communication Stop Mode Communication stop for "Panoramic View Monitor" is indicated on the "Communication Bus Check" screen of the GTS.
(Click here)
·

Parking assist ECU branch wire or connector

·

Power source circuit of parking assist ECU

·

Parking assist ECU ground circuit

·

Parking assist ECU



WIRING DIAGRAM

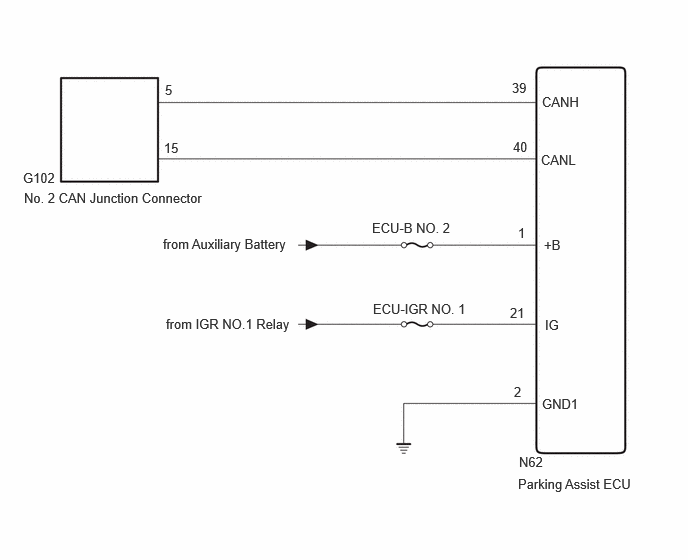

C502852E06
0.25,1.979 2.385,2.385 2.135,0.406 10 false No. 2 CAN Junction Connector 0.24,1.771 0.771,2.229 0.531,0.458 10 false G102 1.708,1.458 2.042,1.719 0.333,0.26 10 false 15 1.719,0.854 2.052,1.115 0.333,0.26 10 false 5 5.333,0.833 5.667,1.094 0.333,0.26 10 false 39 5.344,1.448 5.677,1.708 0.333,0.26 10 false 40 5.313,3.177 5.771,3.406 0.458,0.229 10 false 21 3.885,3.135 5.104,3.51 1.219,0.375 10 false ECU-IGR NO. 1 5.354,4 5.688,4.26 0.333,0.26 10 false 2 5.646,4.125 6.219,4.458 0.573,0.333 10 false GND1 5.677,3.302 6.135,3.583 0.458,0.281 10 false IG 5.667,2.469 6.021,2.75 0.354,0.281 10 false +B 5.646,0.979 6.271,1.229 0.625,0.25 10 false CANH 5.635,1.583 6.313,1.896 0.677,0.313 10 false CANL 5.396,4.958 6.802,5.354 1.406,0.396 10 false Parking Assist ECU 1.698,2.458 3.167,2.792 1.469,0.333 10 false from Auxiliary Battery 1.729,3.292 3.365,3.865 1.635,0.573 10 false from IGR NO.1 Relay 3.875,2.292 5.031,2.583 1.156,0.292 10 false ECU-B NO. 2 5.396,2.344 5.854,2.573 0.458,0.229 10 false 1 5.406,4.729 6.563,4.938 1.156,0.208 10 false N62

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


NOTICE:
·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for SFTM Made HV Model)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

Before measuring the resistance of the CAN bus, turn the power switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.

·

After the power switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the auxiliary battery.

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the power switch on (IG) and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for SFTM Made HV Model)>DIAGNOSIS SYSTEM



HINT:
·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK FOR OPEN IN CAN BUS WIRE (PARKING ASSIST ECU BRANCH WIRE)
a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

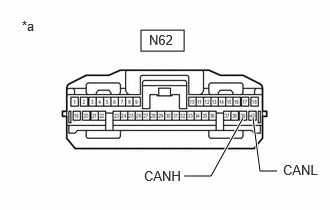

C502849C01
1.469,0.313 1.917,0.531 0.448,0.219 2.635,1.229 2.708,1.781 2.708,1.781 2.885,1.781 true 2.531,1.229 2.198,1.833 2.198,1.833 1.917,1.833 true 1.552,0.333 2.01,0.531 0.458,0.198 10 false N62 2.948,1.688 3.406,1.885 0.458,0.198 10 false CANL 1.5,1.75 1.958,1.948 0.458,0.198 10 false CANH 0.229,0.188 0.688,0.385 0.458,0.198 10 false *a
*a Front view of wire harness connector
(to Parking Assist ECU)


Disconnect the parking assist ECU connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N62-39 (CANH) - N62-40 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω



Result:
Proceed to
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

NG

REPAIR OR REPLACE CAN BRANCH WIRE OR CONNECTOR

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.

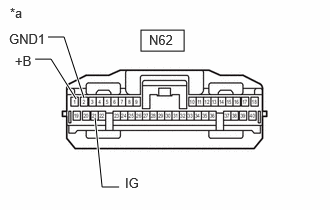

C502849C03
1.469,0.313 1.917,0.531 0.448,0.219 0.99,1.229 1.063,1.948 1.063,1.948 1.24,1.948 true 0.792,1.031 0.531,0.615 0.531,0.615 0.365,0.615 true 0.875,1.021 0.667,0.385 0.667,0.385 0.5,0.385 true 1.552,0.333 2.01,0.531 0.458,0.198 10 false N62 1.302,1.823 1.76,2.021 0.458,0.198 10 false IG 0.094,0.323 0.552,0.521 0.458,0.198 10 false GND1 0.156,0.552 0.458,0.844 0.302,0.292 10 false +B 0.104,0.052 0.563,0.25 0.458,0.198 10 false *a
*a Front view of wire harness connector
(to Parking Assist ECU)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N62-2 (GND1) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω



b.

Reconnect the cable to the negative (-) auxiliary battery terminal.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
N62-1 (+B) - Body ground Power switch off 11 to 14 V
N62-21 (IG) - Body ground Power switch on (IG) 11 to 14 V
Power switch off Below 1 V



Result:
Proceed to
OK
NG



OK

REPLACE PARKING ASSIST ECU

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PARKING ASSIST ECU>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
