PARK ASSIST / MONITORING PARKING ASSIST ECU REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during parking assist ECU removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedures	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Parking assist ECU	Import/Export constant value	Panoramic view monitor system	(202304,999999,_56,_083082,_0586733,RM1000000029R9F,)

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedures	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Parking assist ECU	Import/Export constant value	Panoramic view monitor system	(202304,999999,_56,_083082,_0586733,RM1000000029R9F,)

PROCEDURE

Hide Display 58810J 1.REMOVE CONSOLE BOX ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202304,999999,_58,_083106,_0400608,RM1000000029Q1K,

Hide Display 58996A 2.REMOVE NO. 2 CONSOLE BOX MOUNTING BRACKET

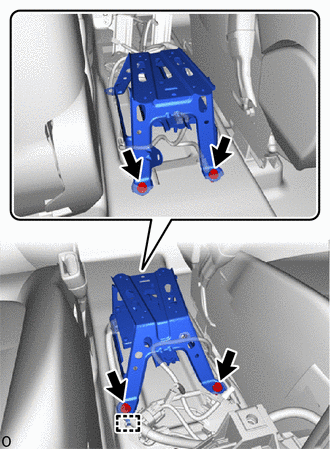

Remove the 4 bolts.

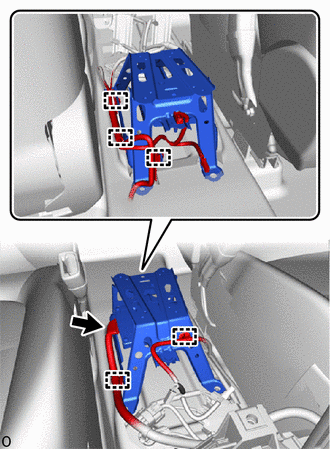

Detach the guide and remove the No. 2 console box mounting bracket.

Disconnect the connector.

Detach the wire harness clamp.

Hide Display 86792C 3.REMOVE PARKING ASSIST ECU

Remove the 2 nuts and parking assist ECU.
