RM36D0EC _58 Vehicle Interior _083100 SUPPLEMENTAL RESTRAINT SYSTEMS _0400497 CURTAIN SHIELD AIRBAG ASSEMBLY N

SUPPLEMENTAL RESTRAINT SYSTEMS CURTAIN SHIELD AIRBAG ASSEMBLY DISPOSAL

CAUTION / NOTICE / HINT

CAUTION:: Before performing pre-disposal deployment of any SRS part, review and closely follow all applicable environmental and hazardous material regulations. Pre-disposal deployment may be considered hazardous material treatment.

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: ·

An airbag or pretensioner may be activated by static electricity. To prevent this, be sure to touch a metal surface with your bare hands to discharge static electricity before performing this procedure.

·

Do not perform this procedure indoors or on rough roads where safety cannot be ensured. Also, do not deploy SRS parts near residential areas.

·

If this procedure is performed indoors or on rough roads where safety cannot be ensured, unforeseen injuries may occur. Also, the deployment noise creates a nuisance to nearby residents.

HINT:: When scrapping a vehicle equipped with an SRS or disposing of the curtain shield airbag assembly, be sure to deploy the airbag first in accordance with the following procedure. If any abnormality occurs with the airbag deployment, contact the Service Department of the distributor.

Hide Display 2.DISPOSE OF CURTAIN SHIELD AIRBAG ASSEMBLY (When Installed to Vehicle)

NOTICE:: ·

When disposing of a curtain shield airbag assembly, use an unneeded vehicle to deploy the airbag.

·

Be sure to perform the following procedure when deploying the airbag.

HINT:: Prepare an auxiliary battery as the power source to deploy the airbag.

0.99,1.208 0.792,0.771 0.792,0.771 0.646,0.771 false 0.323,0.688 0.781,0.885 0.458,0.198 10 SST

Check the function of SST.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>STEERING PAD>DISPOSAL202409,999999,_58,_083100,_0400493,RM100000002O71B_01_0013,

SST: 09082-00700

Refer to Precaution.

for GTMC Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>PRECAUTION202405,999999,_58,_083100,_0694959,RM100000002LV12,

for SFTM Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>PRECAUTION202409,999999,_58,_083100,_0694957,RM100000002NSNT,

Disconnect the cable from the negative (-) auxiliary battery terminal.

for M20C-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>REMOVAL202409,999999,_V1,_083136,_0418197,RM100000002NHPI,

for M20D-FKS: Click hereGeneral>MAINTENANCE>M20D-FKS BATTERY>REMOVAL202409,999999,_V1,_083136,_0403617,RM100000002NHPJ,

for A25B-FXS: Click hereGeneral>MAINTENANCE>A25B-FXS AUXILIARY BATTERY>REMOVAL202409,999999,_V1,_083136,_0403618,RM100000002NHPL,

for A25D-FXS: Click hereGeneral>MAINTENANCE>A25D-FXS AUXILIARY BATTERY>REMOVAL202409,999999,_V1,_083136,_0477834,RM100000002NHPM,

for A25F-FXS: Click hereGeneral>MAINTENANCE>A25F-FXS AUXILIARY BATTERY (Production date from 2021/08)>REMOVAL202409,999999,_V1,_083136,_0486275,RM100000002NHPN,

CAUTION:: ·

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Remove the roof headlining assembly.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202304,999999,_58,_083106,_0400609,RM1000000029RST,

Disconnect the curtain shield airbag assembly connector.

NOTICE:: When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; ·

for GTMC Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202405,999999,_58,_083100,_0694959,RM100000002LV1F,

·

for SFTM Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202405,999999,_58,_083100,_0694957,RM100000002LV4B,

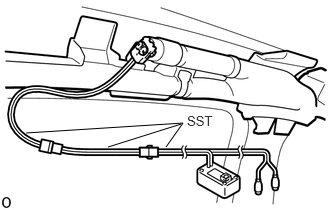

Install SST.

0.271,1.385 1.906,1.281 1.906,1.281 1.729,1.531 false 1.125,1.531 1.885,1.292 false 1.948,1.177 2.406,1.375 0.458,0.198 10 false SST

After connecting the following SST to each other, connect them to the curtain shield airbag assembly.

SST: 09082-00700
09082-00802 (09082-10801, 09082-20801)

CAUTION:: ·

Do not deploy the curtain shield airbag assembly if it rattles due to looseness and the tightening bolts and clips, etc., for the inflator and deployment part of the curtain shield airbag assembly falling off.

·

Do not deploy the curtain shield airbag assembly if the deployment part fell off.

·

If the curtain shield airbag assembly is deployed when it rattles or parts have fallen off, the curtain shield airbag assembly may fly off and cause serious injuries.

NOTICE:: To avoid damaging SST connector or wire harness, do not lock the secondary lock of the twin lock.

ii.

0.458,1.167 0.677,1.167 false 0.677,1.167 0.927,1.396 false 1.698,1.802 2.01,1.958 0.313,0.156 10 false *a 0.177,1.104 0.573,1.323 0.396,0.219 10 false SST

*a	10 m (32.8 ft.) or more

Move SST at least 10 m (32.8 ft.) away from the rear side window of the vehicle.

iii.

Maintaining sufficient clearance for SST wire harness in the rear side window, close all doors and windows of the vehicle.

CAUTION:: ·

Do not deploy with all the doors and door windows open.

·

If deployed with all the doors and door windows open, dust and gas may enter the eyes or be breathed in.

NOTICE:: Take care not to damage SST wire harness.

iv.

Connect the red clip of SST to the positive (+) auxiliary battery terminal and the black clip of SST to the negative (-) auxiliary battery terminal.

Deploy the airbag.

Check that no one is inside the vehicle or within a 10 m (32.8 ft.) radius of the vehicle.

ii.

Press SST activation switch to deploy the airbag.

CAUTION:: ·

Do not deploy with people inside or around the vehicle.

·

If deployed with people inside or around the vehicle, serious injuries may occur.

HINT:: The airbag is deployed as the LED of SST activation switch comes on.

Remove the curtain shield airbag assembly.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CURTAIN SHIELD AIRBAG ASSEMBLY>REMOVAL202409,999999,_58,_083100,_0400497,RM100000002NG0F,

CAUTION:: ·

The curtain shield airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.

·

If not left alone for 30 minutes or more, burns may occur when touched.

·

Do not apply water etc. to a curtain shield airbag assembly with a deployed airbag.

·

If water is applied to the curtain shield airbag assembly immediately after deployment, burns may occur from the resulting steam.

·

Always wear safety glasses and gloves when handling a deployed curtain shield airbag assembly.

·

If the curtain shield airbag assembly is touched without wearing safety glasses and gloves, hot parts may cause burns and dust may enter the eyes.

·

After removal, quickly seal the curtain shield airbag assembly in a plastic bag.

Dispose of the curtain shield airbag assembly.

Place the curtain shield airbag assembly in a plastic bag, tie it tightly and dispose of it according to local regulations.

CAUTION:: ·

The curtain shield airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.

·

If not left alone for 30 minutes or more, burns may occur when touched.

·

Do not apply water etc. to a curtain shield airbag assembly with a deployed airbag.

·

If water is applied to the curtain shield airbag assembly immediately after deployment, burns may occur from the resulting steam.

·

Always wear safety glasses and gloves when handling a deployed curtain shield airbag assembly.

·

If the curtain shield airbag assembly is touched without wearing safety glasses and gloves, hot parts may cause burns and dust may enter the eyes.

·

Never dispose of a curtain shield airbag assembly with an undeployed airbag.

·

If an undeployed curtain shield airbag assembly is disposed of, and then deploys for any reason, unforeseen injuries may occur.

·

Always wash your hands with water after completing the operation.

Hide Display 3.DISPOSE OF CURTAIN SHIELD AIRBAG ASSEMBLY (When not Installed to Vehicle)

NOTICE:: Be sure to observe the following procedure when deploying the airbag.

HINT:: Prepare an auxiliary battery as the power source to deploy the airbag.

0.99,1.208 0.792,0.771 0.792,0.771 0.646,0.771 false 0.323,0.688 0.781,0.885 0.458,0.198 10 SST

Check the function of SST.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>STEERING PAD>DISPOSAL202409,999999,_58,_083100,_0400493,RM100000002O71B_01_0014,

SST: 09082-00700

Refer to Precaution.

for GTMC Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>PRECAUTION202405,999999,_58,_083100,_0694959,RM100000002LV12,

for SFTM Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>PRECAUTION202409,999999,_58,_083100,_0694957,RM100000002NSNT,

Remove the curtain shield airbag assembly.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CURTAIN SHIELD AIRBAG ASSEMBLY>REMOVAL202409,999999,_58,_083100,_0400497,RM100000002NG0F,

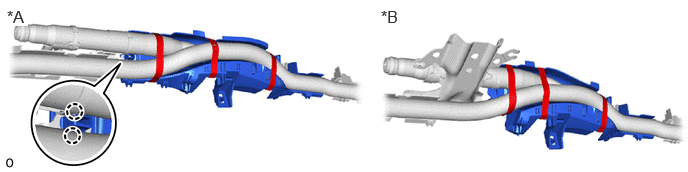

except Moon Roof:

Cut off the 3 cable ties and detach the claw to remove the center retainer.

0.073,0.073 0.292,0.271 0.219,0.198 12 true *A 3.969,0.073 4.281,0.313 0.313,0.24 12 false *B

except Moon Roof

for Moon Roof

for Moon Roof:

Cut off the 3 cable ties and remove the center retainer.

1.01,0.646 1.427,0.833 false 0.823,0.51 1.135,0.667 0.313,0.156 10 false *a

Cut Here

Cut off the deployment section of the curtain shield airbag assembly.

CAUTION:: ·

Wear safety glasses and gloves.

·

The dust may enter the eyes or be breathed in.

2.854,0.99 3.094,1.167 0.24,0.177 10 false *a

*a	Wire Diameter
	Stripped Wire Cross Sectional Area

Using braided wire, tie down the curtain shield airbag assembly to an unneeded tire.

Wire:: Cross-sectional area of stripped wire; 1.25 mm² (0.0019 in.²) or more

CAUTION:: If the wire harness is too thin or an alternative object is used to tie down the curtain shield airbag assembly, it may snap when the airbag is deployed. Always use a wire for vehicle use with a cross-sectional area of at least 1.25 mm² (0.0019 in.²).

HINT:: To calculate the area of the cross-sectional area of stripped wire:; Area = 3.14 x (Diameter)² / 4

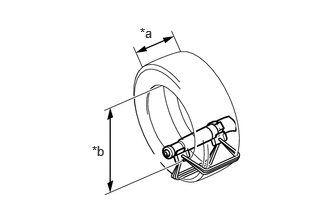

1.458,0.26 1.698,0.51 0.24,0.25 10 *a 0.958,1.49 1.188,1.771 0.229,0.281 10 *b

*a	Width
*b	Inner Diameter

Position the curtain shield airbag assembly inside the tire with the outlet facing inside.

Minimum tire size:: Must exceed the following dimensions; Width:; 185 mm (7.28 in.); Inner diameter:; 360 mm (1.18 ft.)

CAUTION:

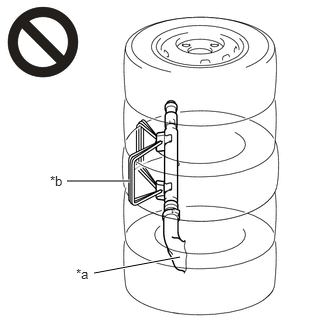

0.698,1.885 1.354,1.885 true 1.875,2.677 0.979,2.844 true 0.792,2.771 1.104,2.927 0.313,0.156 10 false *a 0.521,1.802 0.833,1.958 0.313,0.156 10 false *b

*a	Outlet
*b	Remove looseness

Do not install the curtain shield airbag assembly with the outlet facing down.

When securing the curtain shield airbag assembly, make sure there is no looseness in the wire harness.

If installed with the outlet facing down or looseness in the wire harness, the deployed curtain shield airbag assembly and tire may fly off and cause serious injuries.

NOTICE:: The tire may be damaged by the airbag deployment, so use an unneeded tire.

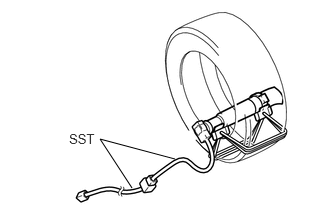

Install SST.

1.823,1.656 1.042,1.448 1.042,1.448 1.375,1.958 false 0.719,1.365 1.177,1.563 0.458,0.198 10 false SST

After connecting the following SST to each other, connect them to the curtain shield airbag assembly.

SST: 09082-00802 (09082-10801, 09082-20801)

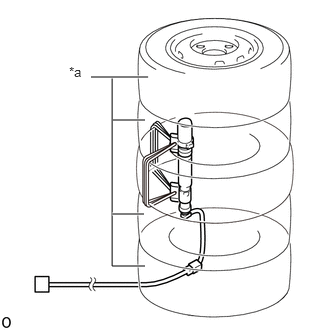

Place the tires.

1.167,0.792 1.167,2.771 1.167,2.771 1.51,2.771 true 1.167,2.229 1.5,2.229 true 1.177,1.25 1.51,1.25 true 0.948,0.802 1.542,0.802 true 0.719,0.667 1.031,0.823 0.313,0.156 10 false *a

*a	Tires (2 or more)

Place at least 2 tires under the tire to which the curtain shield airbag assembly is tied.

Minimum Tire Size:: Width:; 185 mm (7.28 in.); Inner Diameter:; 360 mm (1.18 ft.)

NOTICE:: Do not place SST connector under the tire because it could be damaged.

ii.

Place at least 2 tires onto the tire to which the curtain shield airbag assembly is tied. The top tire should have a wheel installed.

NOTICE:: The wheel and tires may be damaged by the airbag deployment, so use an unneeded wheel and tires.

iii.

Tie the tires together with 2 wires.

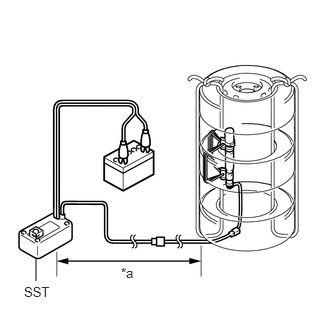

Install SST.

0.375,2.688 0.375,2.927 false 1.26,2.76 1.5,2.917 0.24,0.156 10 false *a 0.25,2.958 0.583,3.156 0.333,0.198 10 false SST

*a	10 m (32.8 ft.) or more

Connect the SST connector.

SST: 09082-00700

NOTICE:: To avoid damaging SST connector or wire harness, do not lock the secondary lock of the twin lock. Also, secure some slack for SST wire harness inside the tire.

ii.

Move SST at least 10 m (32.8 ft.) away from the airbag tied down to the tire.

Deploy the airbag.

Connect the red clip of SST to the positive (+) auxiliary battery terminal and the black clip of SST to the negative (-) auxiliary battery terminal.

ii.

Check that no one is within a 10 m (32.8 ft.) radius of the tire to which the curtain shield airbag assembly is tied.

iii.

Press SST activation switch to deploy the airbag.

CAUTION:: ·

Do not deploy with people around the tire.

·

If deployed with people around the tire, serious injuries may occur.

HINT:: The airbag is deployed as the LED of SST activation switch comes on.

Dispose of the curtain shield airbag assembly.

CAUTION:: ·

The curtain shield airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.

·

If not left alone for 30 minutes or more, burns may occur when touched.

·

Do not apply water etc. to a curtain shield airbag assembly with a deployed airbag.

·

If water is applied to the curtain shield airbag assembly immediately after deployment, burns may occur from the resulting steam.

·

Always wear safety glasses and gloves when handling a deployed curtain shield airbag assembly.

·

If the curtain shield airbag assembly is touched without wearing safety glasses and gloves, hot parts may cause burns and dust may enter the eyes.

·

Never dispose of a curtain shield airbag assembly with an undeployed airbag.

·

If an undeployed curtain shield airbag assembly is disposed of, and then deploys for any reason, unforeseen injuries may occur.

·

Always wash your hands with water after completing the operation.

Remove the curtain shield airbag assembly from the tire.

ii.

Place the curtain shield airbag assembly in a plastic bag, tie it tightly, and dispose of it according to local regulations.
