THEFT DETERRENT / KEYLESS ENTRY SMART ENTRY AND START SYSTEM(for Entry Function, Gasoline Model) OPERATION CHECK
CHECK CUSTOMIZE PARAMETERS
- NOTICE:
-
The operation check below is based on the non-customized initial condition of the vehicle.
CHECK ENTRY UNLOCK FUNCTION
Perform a wireless lock door operation to lock the door, touch the unlock sensor built into the backside of the front door outside handle assembly of the driver door while carrying the electrical key transmitter sub-assembly and check that the door unlocks.
Inspect the entry unlock detection area. Hold the electrical key transmitter sub-assembly at the same height as the door outside handle assembly and approximately 0.7 to 1 m (2.30 to 3.28 ft.) from the vehicle as shown in the illustration and check that the LED (red) of the electrical key transmitter sub-assembly blinks.
| *1 | Electrical key transmitter sub-assembly |
| *a | 0.7 to 1 m (2.30 to 3.28 ft.) |
The illustrations shown are examples only.
With the system in unlock standby mode, grasp the front door outside handle assembly LH and check that the door unlocks.
- HINT:
- ·
The system is in unlock standby mode when the electrical key transmitter sub-assembly is in the detection area and the key ID code sent by the electrical key transmitter sub-assembly matches the key ID code stored by the certification ECU (smart key ECU assembly).
·Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the door outside handle assembly.
·Inspect the front passenger door using the same procedure.
| *a | Unlock Sensor (Backside) |
The illustrations shown are examples only.
Check the unlock response sensitivity. With the system in unlock standby mode, touch the area shown in the illustration and check that the door unlocks.
- NOTICE:
-
If the sensor is touched too quickly or released too slowly, the sensor may not react and the door will not unlock.
- HINT:
- ·
Inspect the front passenger door using the same procedure.
CHECK ENTRY LOCK FUNCTION
- NOTICE:
-
If the electrical key transmitter sub-assembly is in the vehicle but outside the detection area (on the instrument panel, in the glove box, on the floor) and a door lock operation is performed, the key lock-in prevention function will not operate and the electrical key transmitter sub-assembly will be locked inside the vehicle.
| *a | Lock Sensor |
The illustrations shown are examples only.
With the door closed and unlocked, touch the lock sensor of the front door outside handle assembly of the driver door while carrying the electrical key transmitter sub-assembly and check that the door locks.
- HINT:
- ·
If the door does not lock even when touching the lock sensor, touch it with your palm.
·Inspect the front passenger door using the same procedure.
| *1 | Electrical key transmitter sub-assembly |
| *a | 0.3 m (0.984 ft.) |
The illustrations shown are examples only.
Inspect the entry lock operating range. Hold the electrical key transmitter sub-assembly approximately 0.1 m (0.328 ft.) below the bottom edge of the door glass and approximately 0.3 m (0.984 ft.) from the vehicle as shown in the illustration, press the back end of the door outside handle sub-assembly and check that the door locks.
- HINT:
- ·
If the door does not lock even when touching the lock sensor, touch it with your palm.
·As communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the front door outside handle assembly, the door may not lock if the lock sensor is touched with the same hand that is carrying the electrical key transmitter sub-assembly, etc.
·If the key lock-in prevention function buzzer sounds, radio waves from the indoor electrical key antenna may be leaking from the vehicle.
·The entry lock function cannot be operated more than 2 times consecutively.
·Inspect the front passenger door using the same procedure.
CHECK ENTRY BACK DOOR UNLOCK FUNCTION
Perform a wireless lock operation to lock the doors, operate the unlock switch of the back door opener switch assembly while carrying the electrical key transmitter sub-assembly and check that the back door opens.
| *1 | Electrical key transmitter sub-assembly |
| *2 | Back Door Opener Switch Assembly (Unlock Switch) |
| *a | 0.7 to 1 m (2.30 to 3.28 ft.) |
The illustrations shown are examples only.
Inspect the entry back door open operating range. While standing at the rear of the vehicle, hold the electrical key transmitter sub-assembly so that it is facing the direction shown in the above illustration at the same height as the back door opener switch assembly and approximately 0.7 to 1 m (2.30 to 3.28 ft.) from the vehicle, press the back door opener switch assembly and check that the back door opens.
CHECK ENTRY BACK DOOR LOCK FUNCTION
- NOTICE:
-
If the electrical key transmitter sub-assembly is in the vehicle but outside the detection area (on the instrument panel, in the glove box, on the floor) and a back door lock operation is performed, the key lock-in prevention function will not operate and the electrical key transmitter sub-assembly will be locked inside the vehicle.
With the back door closed and unlocked, press the lock switch of the back door opener switch assembly while carrying the electrical key transmitter sub-assembly outside of the vehicle and check that the back door locks.
| *1 | Electrical key transmitter sub-assembly |
| *2 | Back Door Opener Switch Assembly (Lock Switch) |
| *a | 0.7 to 1 m (2.30 to 3.28 ft.) |
The illustrations shown are examples only.
Inspect the entry back door lock operating range. Hold the electrical key transmitter sub-assembly at the same height as the rear bumper upper surface and approximately 0.7 to 1 m (2.30 to 3.28 ft.) from the vehicle as shown in the illustration, press the lock switch of the back door opener switch assembly and check that the back door locks.
- HINT:
- ·
Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the rear bumper.
·If the key lock-in prevention function buzzer sounds, radio waves from the indoor electrical key antenna may be leaking from the vehicle.
CHECK PUSH-BUTTON START FUNCTION
CHECK KEY LOCK-IN PREVENTION FUNCTION
- NOTICE:
-
In order to prevent the electrical key transmitter sub-assembly from being locked inside the vehicle, perform this inspection with the window of a door open.
Turn the ignition switch off.
Place the electrical key transmitter sub-assembly on a front seat, rear seat or luggage compartment.
Close all of the doors and make sure they are unlocked.
Touch a door lock sensor and check that the doors do not lock and the key lock-in prevention function buzzer sounds for approximately 5 seconds.
CHECK POWER BACK DOOR RESERVATION LOCK FUNCTION (w/ Power Back Door System)
Check that the doors lock after the back door is closed when the lock sensor is operated during the back door closing operation via the power back door function.
CHECK HANDS FREE POWER BACK DOOR OPERATION (w/ Hands Free Power Back Door)
Inspect the entry back door open operating range. Hold the electrical key transmitter sub-assembly at the same height as the back door opener switch assembly and approximately 0.7 m (2.30 ft.) from the vehicle as shown in the illustration.

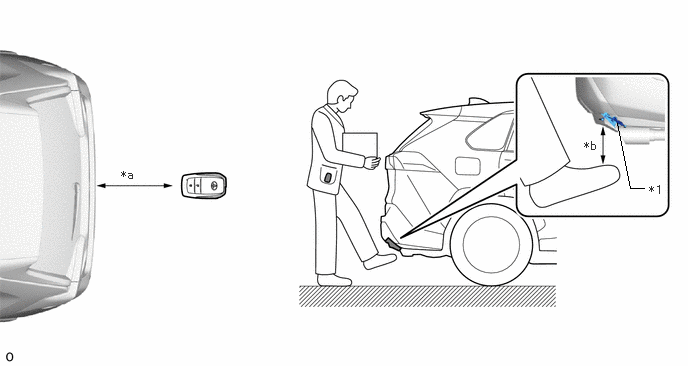

With the back door closed, while carrying the electrical key transmitter sub-assembly, kick your leg so that your foot is 0.1 m (0.328 ft.) or closer to the rear bumper surface. Pull your leg away from the sensor and check that the back door begins to open automatically.
| *1 | Kick Door Control Sensor | - | - |
| *a | Approximately 0.7 m (2.30 ft.) | *b | 0.1 m (0.328 ft.) |
- HINT:
- ·
Refer to Power Back Door System.
·Inspect the close function using the same procedure.
CHECK ANSWER-BACK FUNCTION
Check the answer-back function (hazard warning light flashing).
| Entry Operation | Hazard Warning Light |
|---|---|
| Entry Lock | Flashes once |
| Entry Unlock | Flashes twice |
CHECK TRANSMITTER BATTERY SAVING MODE FUNCTION
CHECK ENTRY CANCEL FUNCTION
KEY DIAGNOSTIC MODE (Using GTS)
- HINT:
- ·
With key diagnostic mode, it is possible to check if the electrical key transmitter sub-assembly is operating properly with the selected electrical key antenna and within the selected detection area by the sounding of the buzzer.
·If the buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.
Enter the following menus: Body Electrical / Entry&Start / Utility / Communication Check(Key Diag Mode).
- Body Electrical > Entry&Start > Utility
-
Tester Display Communication Check(Key Diag Mode) - 50005 440 2541
Inspect the appropriate item according to the following table.
| Tester Display | Inspection Item |
|---|---|
| [CH1/CH2] Overhead + Driver Side*1 | Front door outside handle assembly LH (electrical key antenna) |
| [CH1] Overhead + Driver Side*1 | |
| [CH2] Overhead + Driver Side*1 | |
| [CH1/CH2] Overhead + Passenger Side*2 | Front door outside handle assembly RH (electrical key antenna) |
| [CH1] Overhead + Passenger Side*2 | |
| [CH2] Overhead + Passenger Side*2 | |
| [CH1/CH2] Overhead + Front Room*3 | No. 1 indoor electrical key antenna assembly (front floor) |
| [CH1] Overhead + Front Room*3 | |
| [CH2] Overhead + Front Room*3 | |
| [CH1/CH2] Overhead + Rear Room*4 | No. 2 indoor electrical key antenna assembly (rear floor) |
| [CH1] Overhead + Rear Room*4 | |
| [CH2] Overhead + Rear Room*4 | |
| [CH1/CH2] Overhead + Back Door*5 | Electrical key antenna (outside luggage compartment) |
| [CH1] Overhead + Back Door*5 | |
| [CH2] Overhead + Back Door*5 | |
| [CH1/CH2] Luggage + Back Door (inside)/Rear2*6 | No. 1 indoor electrical key antenna assembly (inside luggage compartment) |
| [CH1] Luggage + Back Door (inside)/Rear2*6 | |
| [CH2] Luggage + Back Door (inside)/Rear2*6 | |
| [CH1/CH2] Immobiliser Amp*7 | Amplifier (engine switch) |
| [CH1] Immobiliser Amp*7 | |
| [CH2] Immobiliser Amp*7 |
[CH1]: Channel 1 is set.
[CH2]: Channel 2 is set.
[CH1/CH2]: Channel 1 and 2 switch automatically at a specific interval*.
*: If the electrical key transmitter sub-assembly is detected with either channel 1 or 2, the buzzer sounds.
Bring the electrical key transmitter sub-assembly near the selected electrical key antenna and check that the buzzer sounds.
- HINT:
-
The buzzer sounds in short, repeated beeps for all items except "Overhead + Rear Room"*4. For "Overhead + Rear Room"*4, the buzzer sounds in one long, continuous beep.
| *1 | Electrical key transmitter sub-assembly |
| *a | 0.7 to 1 m (2.30 to 3.28 ft.) |
The illustrations shown are examples only.
*1: Front door outside handle assembly LH
- HINT:
- ·
Hold the electrical key transmitter sub-assembly at the same height as the front door outside handle assembly in the position shown in the illustration.
·*2: Perform the same inspection for the front passenger door.
| *a | Electrical key transmitter sub-assembly Inspection Point |
The illustrations shown are examples only.
*3: No. 1 indoor electrical key antenna assembly (front floor)
- HINT:
-
Place the electrical key transmitter sub-assembly on the front seat cushion of the driver seat or front passenger seat.
| *a | Electrical key transmitter sub-assembly Inspection Point |
The illustrations shown are examples only.
*4: No. 2 indoor electrical key antenna assembly (rear floor)
- HINT:
-
Place the electrical key transmitter sub-assembly on the rear seat cushion.
| *1 | Electrical key transmitter sub-assembly |
| *a | 0.7 to 1 m (2.30 to 3.28 ft.) |
The illustrations shown are examples only.
*5: Electrical key antenna (outside luggage compartment)
- HINT:
-
Hold the electrical key transmitter sub-assembly at the same height as the rear bumper upper surface and align it with the center of the rear of the vehicle as shown in the illustration.
| *a | Electrical key transmitter sub-assembly Inspection Point |
The illustrations shown are examples only.
*6: No. 1 indoor electrical key antenna assembly (inside luggage compartment)
- HINT:
-
Place the electrical key transmitter sub-assembly on the luggage compartment.

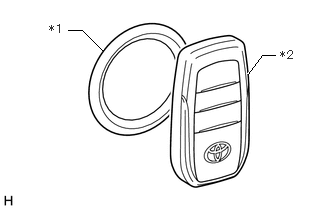

| *1 | Engine Switch |
| *2 | Electrical Key Transmitter Sub-assembly |
*7: Amplifier (engine switch)
- HINT:
-
While facing the logo side of the electrical key transmitter sub-assembly toward the engine switch, hold the transmitter near the engine switch.
