HEATING / AIR CONDITIONING  AIR CONDITIONING SYSTEM(for Gasoline Model)  Blower Motor Circuit


DESCRIPTION

The blower with fan motor sub-assembly reads the signal from the air conditioning amplifier assembly and controls operation and speed changes of the blower motor.

If the blower air volume is weak, or there are any other blower malfunctions such as the temperature or air volume cannot be changed, the following causes are possible.

Malfunction Status Factor
Airflow volume cannot be changed
·

Air conditioning amplifier assembly malfunction

·

Blower with fan motor sub-assembly malfunction

·

Air conditioning control assembly malfunction

·

Air conditioning filter clogging

·

Evaporator or heater core fin clogging

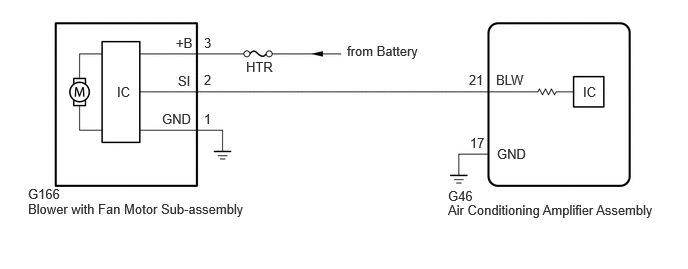

WIRING DIAGRAM

E316644E57
5.167,0.75 5.625,0.948 0.458,0.198 10 false BLW 4.885,0.75 5.344,0.948 0.458,0.198 10 false 21 5.177,1.521 5.635,1.719 0.458,0.198 10 false GND 4.896,1.406 5.354,1.604 0.458,0.198 10 false 17 6.073,0.875 6.531,1.073 0.458,0.198 10 false IC 2.563,0.615 3.021,0.813 0.458,0.198 10 false HTR 3.615,0.448 5.042,0.656 1.427,0.208 10 false from Battery 1.219,0.875 1.677,1.073 0.458,0.198 10 false IC 1.833,0.365 2.292,0.563 0.458,0.198 10 false +B 2.125,0.365 2.583,0.563 0.458,0.198 10 false 3 1.854,0.76 2.313,0.958 0.458,0.198 10 false SI 2.125,0.75 2.583,0.948 0.458,0.198 10 false 2 2.125,1.156 2.583,1.354 0.458,0.198 10 false 1 1.688,1.156 2.146,1.354 0.458,0.198 10 false GND 0.292,1.938 0.75,2.135 0.458,0.198 10 false G166 0.292,2.094 2.865,2.344 2.573,0.25 10 false Blower with Fan Motor Sub-assembly 4.667,1.958 5.125,2.156 0.458,0.198 10 false G46 4.667,2.104 7.042,2.323 2.375,0.219 10 false Air Conditioning Amplifier Assembly

CAUTION / NOTICE / HINT

NOTICE:

Inspect the fuses for circuits related to this system before performing the following procedure.


PROCEDURE

1.PERFORM ACTIVE TEST USING GTS (BLOWER MOTOR)
a.

Perform the Active Test according to the display on the GTS.

Body Electrical > Air Conditioner > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Blower Level Blower with fan motor sub-assembly operation 0 to 31 -
Body Electrical > Air Conditioner > Active Test
Tester Display
Blower Level
50004 450 1
OK:

Blower with fan motor sub-assembly is operated.



Result:
Proceed to
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (BLOWER WITH FAN MOTOR SUB-ASSEMBLY - BATTERY AND BODY GROUND)

NG

5.CHECK AIR CONDITIONING AMPLIFIER ASSEMBLY
2.CHECK HARNESS AND CONNECTOR (BLOWER WITH FAN MOTOR SUB-ASSEMBLY - BATTERY AND BODY GROUND)
a.

Disconnect the G166 blower with fan motor sub-assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G166-1 (GND) - Body ground Always Below 1 Ω



c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
G166-3 (+B) - Body ground Always 11 to 14 V



Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER ASSEMBLY - BLOWER WITH FAN MOTOR SUB-ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER ASSEMBLY - BLOWER WITH FAN MOTOR SUB-ASSEMBLY)
a.

Disconnect the G46 air conditioning amplifier assembly connector.


b.

Disconnect the G166 blower with fan motor sub-assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G46-21 (BLW) - G166-2 (SI) Always Below 1 Ω
G46-21 (BLW) or G166-2 (SI) - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

4.CHECK BLOWER WITH FAN MOTOR SUB-ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK BLOWER WITH FAN MOTOR SUB-ASSEMBLY
a.

Disconnect the G46 air conditioning amplifier assembly connector.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
G46-21 (BLW) - Body ground Always 4.75 to 5.25 V



Result:
Proceed to
OK
NG



OK

5.CHECK AIR CONDITIONING AMPLIFIER ASSEMBLY

NG

REPLACE BLOWER WITH FAN MOTOR SUB-ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>FRONT BLOWER MOTOR>REMOVAL


5.CHECK AIR CONDITIONING AMPLIFIER ASSEMBLY
a.

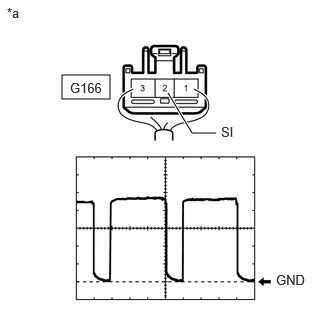

E349843C30
0.646,0.781 1.146,1.031 0.5,0.25 1.75,0.969 2,1.385 2,1.385 2.25,1.385 true 0.729,0.833 1.188,1.031 0.458,0.198 10 false G166 2.302,1.292 2.76,1.49 0.458,0.198 10 false SI 2.875,2.833 3.229,3.042 0.354,0.208 10 false GND 0.073,0.052 0.531,0.25 0.458,0.198 10 false *a
*a Component with harness connected
(Blower with Fan Motor Sub-assembly)


Using the oscilloscope, check for the waveform.

Item Content
Terminal No. G166-2 (SI) - Body ground
Tool Setting 1 V/DIV., 500 μs./DIV.
Vehicle Condition
·

Power switch on (IG)

·

Blower switch: LO



HINT:

The waveform varies with the blower speed.


OK:

Waveform is similar to that shown in the illustration.



Result:
Proceed to
OK
NG



OK

REPLACE BLOWER WITH FAN MOTOR SUB-ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>BLOWER UNIT>DISASSEMBLY


NG

REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING AMPLIFIER>REMOVAL
