RM36D0EC _58 Vehicle Interior _083104 HEATING / AIR CONDITIONING _0403078 AIR CONDITIONING AMPLIFIER A

HEATING / AIR CONDITIONING AIR CONDITIONING AMPLIFIER REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the air conditioning amplifier assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)
Replacement Part or Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Air conditioning amplifier assembly	Servo motor initialization (Air conditioning system)	DTCs are stored	(202409,999999,_58,_083104,_0402829,RM100000002NSIZ,)

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replacement Part or Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Air conditioning amplifier assembly	· Reset air conditioning information · Learning air conditioning information	Stop and start system	(202409,999999,_51,_083056,_0402418,RM100000002NSFT,)
Air conditioning amplifier assembly	Servo motor initialization (Air conditioning system)	DTCs are output	(202409,999999,_58,_083104,_0402828,RM100000002NSHC,)

PROCEDURE

Hide Display 78010F 1.REMOVE ACCELERATOR PEDAL ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>ACCELERATOR PEDAL SENSOR>REMOVAL201910,999999,_51,_083048,_0400701,RM100000001J9E9,

Hide Display 88650N 2.REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY

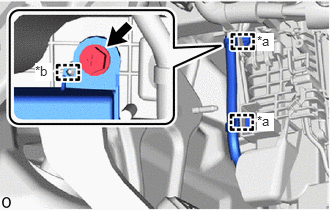

2.677,1.177 2.854,1.365 0.177,0.188 10 true *a 2.677,0.344 2.854,0.531 0.177,0.188 10 true *a 0.365,0.656 0.542,0.844 0.177,0.188 10 true *b

*a	Clamp
*b	Guide

Detach the clamp.

Remove the screw.

Detach the guide.

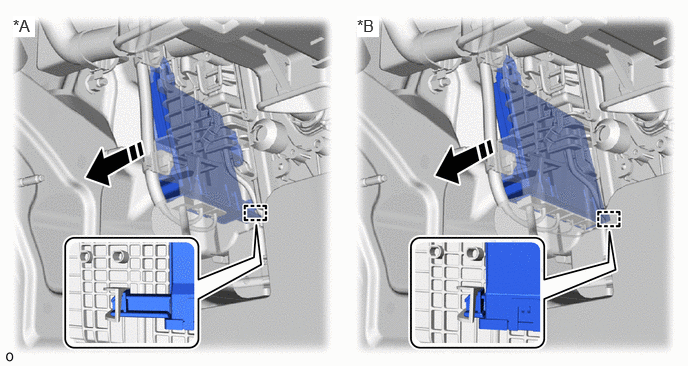

0.135,0.167 0.365,0.385 0.229,0.219 12 true *A 3.719,0.167 3.948,0.385 0.229,0.219 12 true *B

*A	w/o Climate Control Seat System	*B	w/ Climate Control Seat System
	Remove in this Direction	-	-

Pull out the air conditioning amplifier assembly as shown in the illustration.

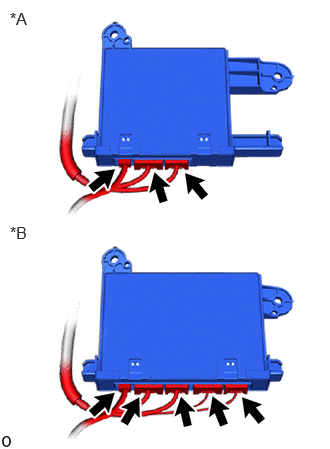

0.104,0.094 0.479,0.333 0.375,0.24 12 false *A 0.104,2.323 0.479,2.563 0.375,0.24 12 false *B

*A	w/o Climate Control Seat System
*B	w/ Climate Control Seat System

Disconnect each connector and remove the air conditioning amplifier assembly.
