K121 CVT TRANSMISSION WIRE REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the transmission wire removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedure	Effect/Inoperative when not Performed	Link
CVT fluid	ATF thermal degradation estimate reset	The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly	(202409,999999,_52,_138176,_0584691,RM100000002NRHB,)
CVT fluid	Air bleed oil pump with motor assembly	Stop and start system	(202409,999999,_51,_083056,_0402418,RM100000002NSFT,)

PROCEDURE

Hide Display 35410J 1.REMOVE TRANSMISSION VALVE BODY ASSEMBLY

Click hereDrivetrain>K121 (CVT)>VALVE BODY ASSEMBLY>REMOVAL202409,999999,_52,_138176,_0579411,RM100000002NGJC,

Hide Display 82125M 2.REMOVE TRANSMISSION WIRE

1.146,1.292 1.302,1.49 0.156,0.198 10 false -

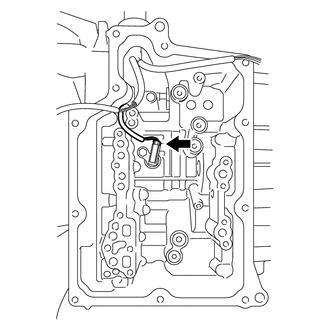

Remove in this Direction

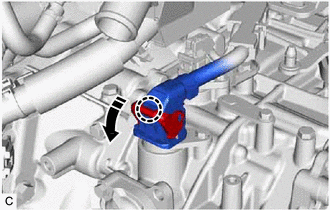

Detach the claw, rotate the lever and disconnect the transmission wire connector.

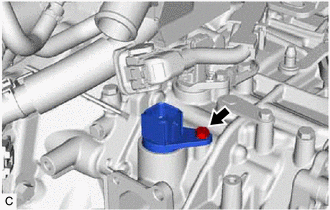

Disconnect the transmission revolution sensor (NC1) connector.

Remove the bolt and transmission wire from the transaxle case sub-assembly.

Remove the O-ring from the temperature sensor.
