DOOR LOCK  FRONT DOOR LOCK  INSTALLATION

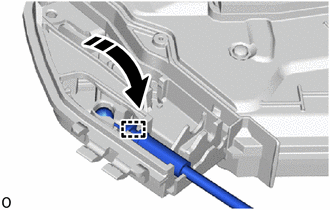

69760B 1.INSTALL FRONT DOOR INSIDE LOCKING CABLE ASSEMBLY

a.

0,0 0,0 false

Install in this Direction

Attach the clamp and install the front door inside locking cable assembly as shown in the illustration.

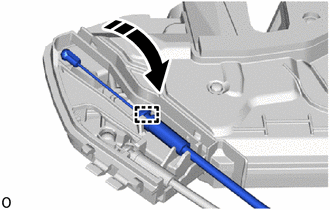

69720D 2.INSTALL FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY

a.

0,0 0,0 false

Install in this Direction

Attach the clamp and install the front door lock remote control cable assembly as shown in the illustration.

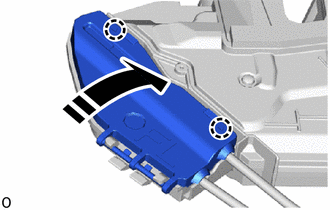

69036A 3.INSTALL FRONT DOOR LOCK COVER SUB-ASSEMBLY LH

a.

Attach the claw.

b.

0,0 0,0 false

Install in this Direction

Attach the claw and install the front door lock cover sub-assembly LH as shown in the illustration.

69318C 4.INSTALL DOOR LOCK WIRING HARNESS SEAL

NOTICE:

·

When reusing the removed front door lock with motor assembly LH, be sure to replace the door lock wiring harness seal on the connector with a new one.

·

Keep the door lock wiring harness seal of the connector free from grease and dust, etc.

·

Reusing the door lock wiring harness seal or using a damaged door lock wiring harness seal may cause water to enter the connecting part. This may result in a malfunction of the front door lock with motor assembly LH.

a.

When reusing front door lock with motor assembly LH:

i.

Install a new door lock wiring harness seal to the front door lock with motor assembly LH.

69040A 5.INSTALL FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH

a.

Apply MP grease to the sliding parts of the front door lock with motor assembly LH.

b.

Using a T30 "TORX" socket wrench, install the front door lock with motor assembly LH with the 3 "TORX" screws.

Torque:

5.5 N*m (56 kgf*cm, 49 in.*lbf)

69312 6.INSTALL FRONT DOOR LOCK OPEN ROD LH

a.

0,0 0,0 false

Install in this Direction

Install the front door lock open rod LH on the front door lock with motor assembly LH as shown in the illustration.

HINT:

Check that the front door lock open rod LH is securely attached to the front door lock with motor assembly LH.

b.

1.219,0.531 1.927,0.344 true 1.979,0.229 2.219,0.417 0.24,0.188 10 false *1

*1	Snap
	Install in this Direction (1)
	Install in this Direction (2)

Install the front door lock open rod LH to the front door outside handle frame sub-assembly LH and attach the snap of the front door outside handle as shown in the illustration.

7.INSTALL FRONT DOOR LOCK CYLINDER ASSEMBLY LH (for Driver Side)

69220 8.INSTALL FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH (for Driver Side)

67404F 9.INSTALL FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY LH

69802 10.INSTALL FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY LH

68151E 11.INSTALL FRONT DOOR GLASS RUN LH

67664C 12.INSTALL DOOR FRAME GARNISH LH

68102 13.INSTALL FRONT DOOR GLASS SUB-ASSEMBLY LH

67832 14.INSTALL FRONT DOOR SERVICE HOLE COVER LH

68193C 15.INSTALL FRONT DOOR FRONT BELT SEAL LH

68195B 16.INSTALL FRONT DOOR REAR BELT SEAL LH

68172A 17.INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP LH

67602 18.INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

19.INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)

20.INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)

74640C 21.INSTALL DOOR ASSIST GRIP ASSEMBLY LH

69278B 22.INSTALL FRONT DOOR INSIDE HANDLE BEZEL LH

23.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

24. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

25. INITIALIZE POWER WINDOW CONTROL SYSTEM

26. CHECK POWER WINDOW CONTROL SYSTEM

27. CHECK POWER DOOR LOCK CONTROL SYSTEM
