HEATING / AIR CONDITIONING  AIR CONDITIONING AMPLIFIER  INSTALLATION


PROCEDURE

Hide 88650N 1.INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY

a.
E407922C02
0.104,0.094 0.479,0.333 0.375,0.24 12 false *A 0.104,2.323 0.479,2.563 0.375,0.24 12 false *B
*A w/o Climate Control Seat System
*B w/ Climate Control Seat System


Connect each connector.


b.

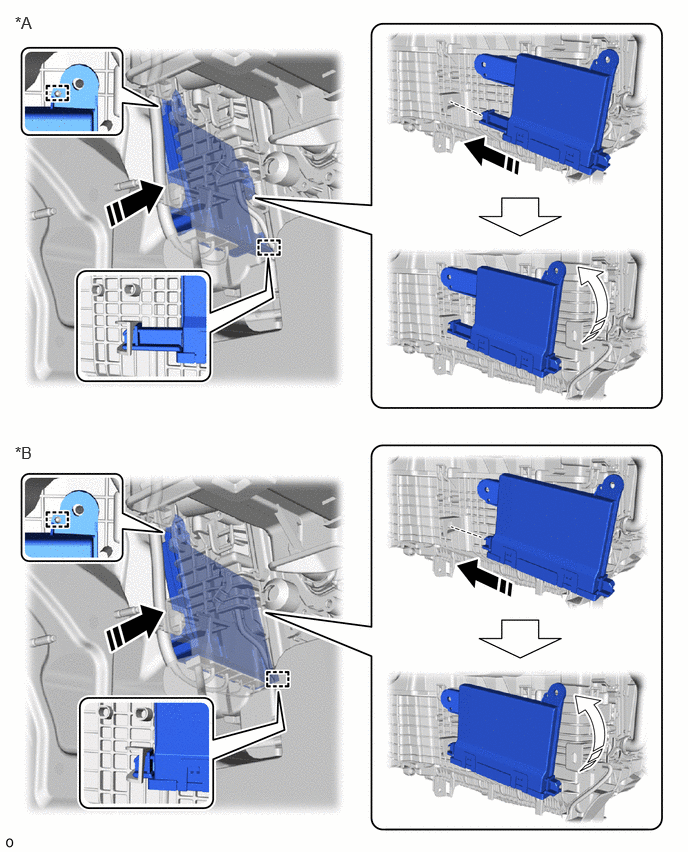

Insert the air conditioning amplifier assembly into the guide as shown in the illustration.

E407923C02
0.156,0.135 0.938,0.844 0.781,0.708 12 false *A 0.156,4.615 0.938,5.323 0.781,0.708 12 false *B
*A w/o Climate Control Seat System *B w/ Climate Control Seat System
V113147

Insert in this Direction
V113148

Rotate in this Direction



c.

Rotate, and then attach to the guide as shown in the illustration.


d.
E407925C02
0.135,0.104 0.5,0.354 0.365,0.25 12 false *A 0.135,2.427 0.5,2.677 0.365,0.25 12 false *B
*A w/o Climate Control Seat System
*B w/ Climate Control Seat System

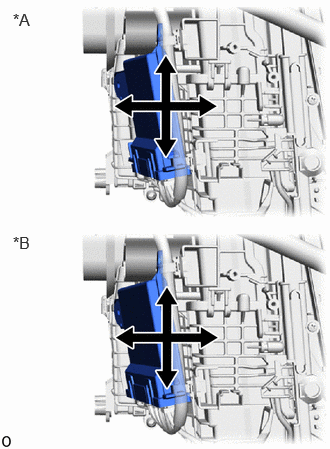

Move the air conditioning amplifier assembly in each direction shown in the illustration to check that the guide is securely engaged.


e.
E409578

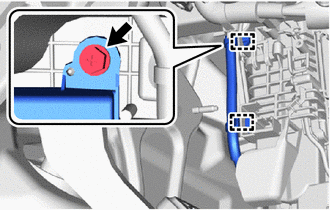

Install the air conditioning amplifier assembly with the screw.


f.

Attach the clamp.
