SUPPLEMENTAL RESTRAINT SYSTEMS FRONT SEAT SIDE AIRBAG ASSEMBLY(for GTMC Made Manual Seat) INSTALLATION
CAUTION / NOTICE / HINT
- CAUTION:
- ·
Wear protective gloves. Sharp areas on the parts may injure your hands.
·There is risk of injury.
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
PROCEDURE
73920A

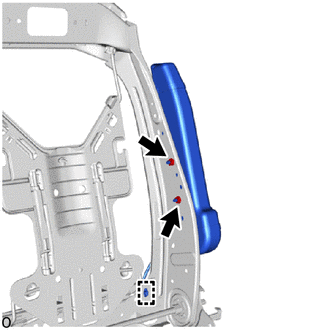

1.INSTALL FRONT SEAT AIRBAG ASSEMBLY LH
Install the front seat airbag assembly LH with 2 new nuts.
- Torque:
- 5.5 N*m (56 kgf*cm, 49 in.*lbf)
- CAUTION:
-
Do not reuse the nut.
Attach the wire harness clamp.
2.INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD
3.INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY
71862
4.INSTALL FRONT SEAT INNER CUSHION SHIELD LH (for Driver Side)
71861
5.INSTALL FRONT SEAT INNER CUSHION SHIELD RH (for Front Passenger Side)
71812D
6.INSTALL FRONT SEAT CUSHION SHIELD LH (for Driver Side)
71811D
7.INSTALL FRONT SEAT CUSHION SHIELD RH (for Front Passenger Side)
71849
8.INSTALL SEAT ADJUSTER COVER CAP LH (for Driver Side)
72526E
9.INSTALL RECLINING ADJUSTER RELEASE HANDLE LH
72552B
10.INSTALL RECLINING HINGE COVER LH
72495
11.INSTALL VERTICAL ADJUSTING HANDLE LH (for Driver Side)
12.INSTALL FRONT SEAT ASSEMBLY LH
13.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
14. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
- HINT:
-
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.
15. PERFORM DIAGNOSTIC SYSTEM CHECK
16.CHECK SRS WARNING LIGHT
