RM36D0EC _58 Vehicle Interior _083102 SEAT _0419055 FRONT SEAT ASSEMBLY(for GTMC Made Manual Seat) A

SEAT  FRONT SEAT ASSEMBLY(for GTMC Made Manual Seat)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
B543257

·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



PROCEDURE

Hide 1.INSTALL FRONT SEAT ASSEMBLY LH

a.

Place the front seat assembly LH in the vehicle as shown in the illustration.

NOTICE:
·

2 or more people are required when reinstalling the front seat assembly LH into the vehicle.

·

Protect the front seat leg.

·

Be careful not to damage the front seat assembly LH, body exterior or interior parts.




b.

Tilt the front seat assembly LH backward.

NOTICE:

Be careful not to damage the front seat assembly LH or interior parts.



c.

Connect the connector of the front seat airbag assembly.

HINT:

Refer to How to Connect or Disconnect Airbag Connector:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR



d.

Connect each connector under the front seat assembly LH.


e.

Attach each clamp and install the floor wire to the front seat assembly LH.


f.

Insert the location pin of the front seat assembly LH on the seat rail front side into the hole on the vehicle side.


g.

Temporarily install the front seat assembly LH with the 4 "TORX" screws.


h.

Operate the seat track adjusting handle and move the front seat assembly LH to the rearmost position.


i.

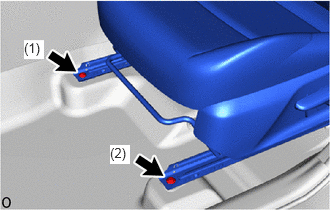

B570579N01
0.25,0.417 0.458,0.615 0.208,0.198 10 true (1) 1.146,1.51 1.354,1.708 0.208,0.198 10 true (2)

Using a T50 "TORX" socket wrench, tighten the 2 "TORX" screws in the order shown in the illustration.

Torque:
37 N*m (377 kgf*cm, 27 ft.*lbf)


j.

Operate the seat track adjusting handle and move the front seat assembly LH to the frontmost position.


k.

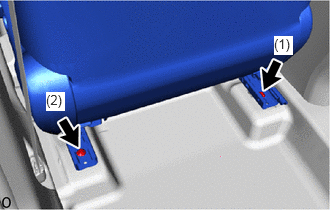

B521498N01
2.854,0.375 3.052,0.573 0.198,0.198 10 true (1) 0.479,0.958 0.677,1.156 0.198,0.198 10 true (2)

Using a T50 "TORX" socket wrench, tighten the 2 "TORX" screws in the order shown in the illustration.

Torque:
37 N*m (377 kgf*cm, 27 ft.*lbf)


Hide 72138J 2.INSTALL FRONT SEAT REAR OUTER TRACK COVER LH

a.

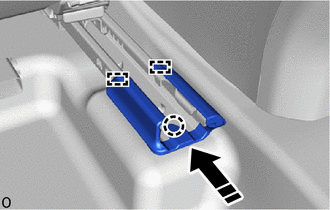

B521465C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and claw and install the front seat rear outer track cover LH as shown in the illustration.


Hide 72138H 3.INSTALL FRONT SEAT TRACK REAR INNER COVER LH

a.

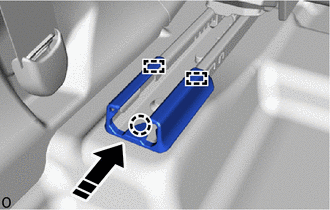

B521463C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and claw and install the front seat track rear inner cover LH as shown in the illustration.


Hide 72124C 4.INSTALL FRONT OUTER SEAT TRACK BRACKET COVER LH

a.

Operate the seat track adjusting handle and move the front seat assembly LH to the frontmost position.


b.
B521461C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and guide and install the front outer seat track bracket cover LH as shown in the illustration.


Hide 72128A 5.INSTALL FRONT INNER SEAT TRACK BRACKET COVER LH

HINT:

Use the same procedure described for the front outer seat track bracket cover LH.


Hide 71910A 6.INSTALL FRONT SEAT HEADREST ASSEMBLY

a.

Install the front seat headrest assembly.


Hide 8. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
