RM36D0EC _58 Vehicle Interior _083100 SUPPLEMENTAL RESTRAINT SYSTEMS _0400496 FRONT PASSENGER AIRBAG ASSEMBLY A

SUPPLEMENTAL RESTRAINT SYSTEMS FRONT PASSENGER AIRBAG ASSEMBLY INSTALLATION

PROCEDURE

Hide Display 73960A 1.INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

Attach the instrument panel passenger airbag assembly hook near the rear of the vehicle to the airbag door wall near the rear of the vehicle.

Slowly lower the instrument panel passenger airbag assembly to attach the instrument panel passenger airbag assembly hook near the front of the vehicle to the airbag door wall near the front of the vehicle.

Install the 2 screws.

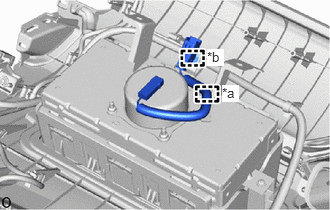

Hide Display 82143C 2.INSTALL NO. 3 INSTRUMENT PANEL WIRE

2.313,0.885 2.49,1.063 0.177,0.177 10 true *a 2.156,0.51 2.333,0.688 0.177,0.177 10 true *b

*a	Guide
*b	Wire Harness Clamp

Attach the guide and wire harness clamp.

Connect the airbag connector.

NOTICE:: When connecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; ·

for GTMC Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202405,999999,_58,_083100,_0694959,RM100000002LV1F,

·

for SFTM Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202405,999999,_58,_083100,_0694957,RM100000002LV4B,

Hide Display 55972C 3.INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REASSEMBLY202304,999999,_58,_083106,_0400607,RM1000000029Q1I_02_0022,

Hide Display 55086 4.INSTALL NO. 3 HEATER TO REGISTER DUCT SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REASSEMBLY202304,999999,_58,_083106,_0400607,RM1000000029Q1I_02_0023,

Hide Display 55950G 5.INSTALL DEFROSTER NOZZLE ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REASSEMBLY202304,999999,_58,_083106,_0400607,RM1000000029Q1I_02_0002,

Hide Display 6.INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION202405,999999,_58,_083106,_0400607,RM100000002LWUO,

Hide Display 7.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

for M20C-FKS:

Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>INSTALLATION202304,999999,_V1,_083136,_0418197,RM100000002A9BV,

for M20D-FKS:

Click hereGeneral>MAINTENANCE>M20D-FKS BATTERY>INSTALLATION202304,999999,_V1,_083136,_0403617,RM100000002A9CC,

for A25B-FXS:

Click hereGeneral>MAINTENANCE>A25B-FXS AUXILIARY BATTERY>INSTALLATION202304,999999,_V1,_083136,_0403618,RM100000002A9CD,

for A25D-FXS:

Click hereGeneral>MAINTENANCE>A25D-FXS AUXILIARY BATTERY>INSTALLATION202304,999999,_V1,_083136,_0477834,RM100000002A9D9,

for A25F-FXS:

Click hereGeneral>MAINTENANCE>A25F-FXS AUXILIARY BATTERY (Production date from 2021/08)>INSTALLATION202304,999999,_V1,_083136,_0486275,RM100000002A9DH,

Hide Display 8. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202405,202409,_V1,_083041,_0402304,RM100000002LTUF,202409,999999,_V1,_083041,_0402304,RM100000002NY03,

Hide Display 9. PERFORM DIAGNOSTIC SYSTEM CHECK

for GTMC Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>DTC CHECK / CLEAR202405,999999,_58,_083100,_0694959,RM100000002LV1B,

for SFTM Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>DTC CHECK / CLEAR202405,202409,_58,_083100,_0694957,RM100000002LV48,202409,999999,_58,_083100,_0694957,RM100000002NSO1,

Hide Display 10.CHECK SRS WARNING LIGHT

for GTMC Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>OPERATION CHECK202405,999999,_58,_083100,_0694959,RM100000002LV17,

for SFTM Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>OPERATION CHECK202405,202409,_58,_083100,_0694957,RM100000002LV45,202409,999999,_58,_083100,_0694957,RM100000002NSNY,
