INTERIOR PANELS / TRIM INSTRUMENT PANEL SAFETY PAD INSTALLATION

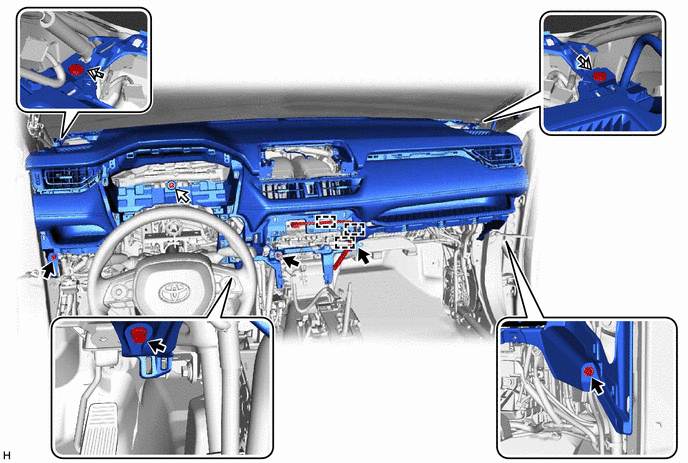

Hide Display 1.INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY

a.

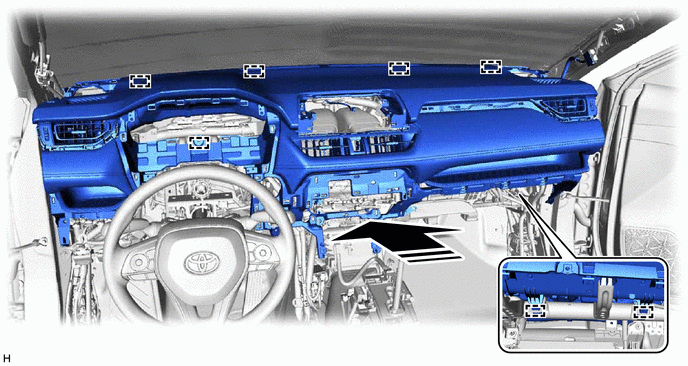

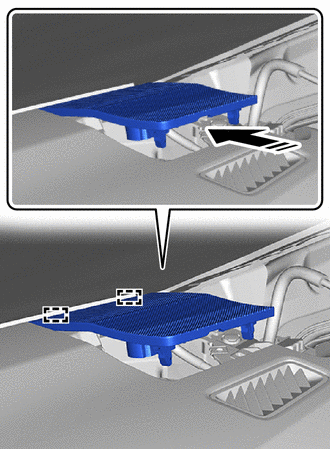

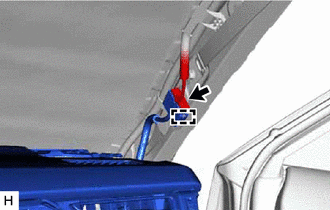

Push in the direction indicated by the arrow shown in the illustration and insert the guide to set the instrument panel safety pad assembly.

0,0 0,0 false

Install in this Direction

-

b.

Install the instrument panel safety pad assembly with the 5 bolts <B>, nut <E> and 2 clips <D>.

c.

Attach the clamp.

0,0 0,0 false

	Bolt <B>		Nut <E>
	Clip <D>	-	-

d.

for Automatic Air Conditioning System:

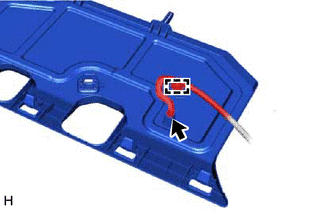

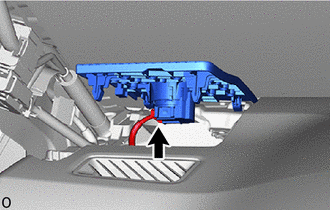

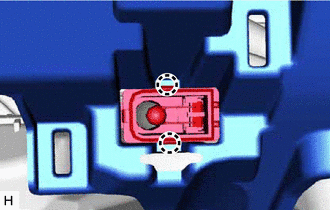

Attach the claw to install the cooler thermistor (room temperature sensor).

e.

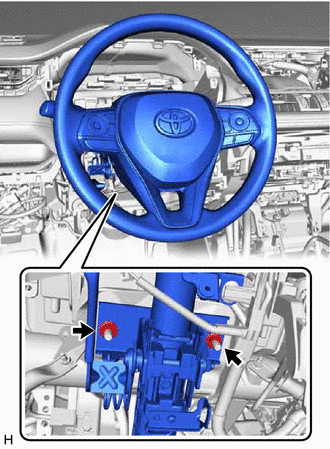

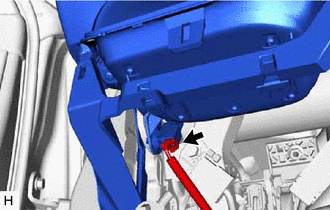

Install the steering column assembly with 2 nuts for the instrument panel reinforcement assembly.

Torque:: 36 N*m (367 kgf*cm, 27 ft.*lbf)

f.

w/ Interior Illumination:

Connect the connector.

g.

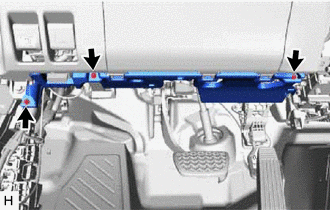

Connect each connector.

h.

0,0 0,0 false

Bolt <C>

Install the 2 bolts <C>.

Torque:: 20 N*m (204 kgf*cm, 15 ft.*lbf)

i.

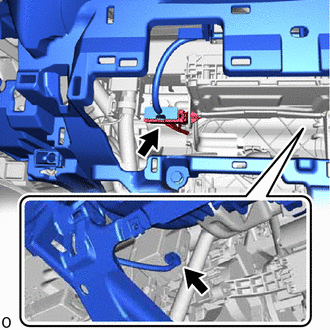

Connect the connector and attach the guide.

j.

0,0 0,0 false

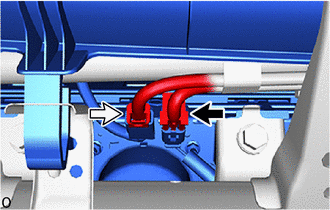

	Airbag Connector
	Connector

Connect the airbag connector.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; ·

for GTMC Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202405,999999,_58,_083100,_0694959,RM100000002LV1F,

·

for SFTM Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202405,999999,_58,_083100,_0694957,RM100000002LV4B,

k.

w/ Ion Generator:

i.

Connect the connector.

Hide Display 84330 2.INSTALL HAZARD WARNING SIGNAL SWITCH ASSEMBLY

Click hereVehicle Exterior>LIGHTING (EXT)>HAZARD WARNING SWITCH>INSTALLATION202304,999999,_59,_083096,_0402641,RM1000000029SCZ_01_0001,

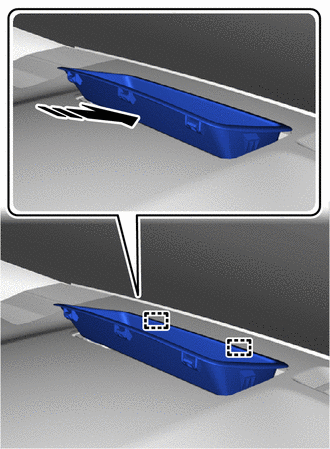

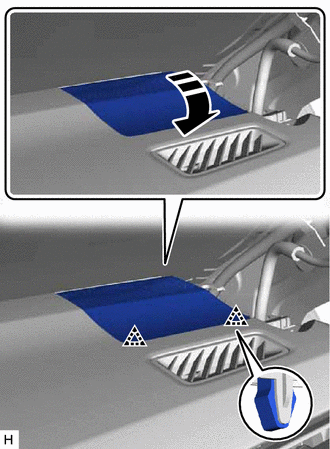

Hide Display 55548A 3.INSTALL INSTRUMENT PANEL HOLE COVER (w/ Headup Display)

a.

0,0 0,0 false

Install in this Direction

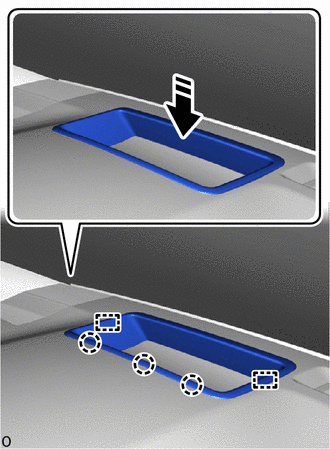

Attach the guide as shown in the illustration.

b.

0,0 0,0 false

Install in this Direction

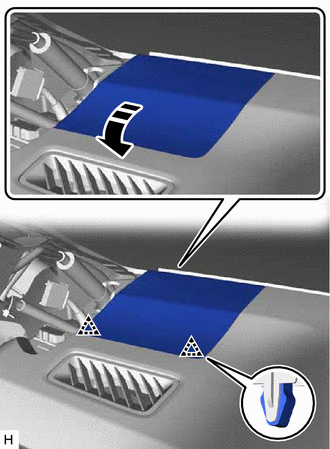

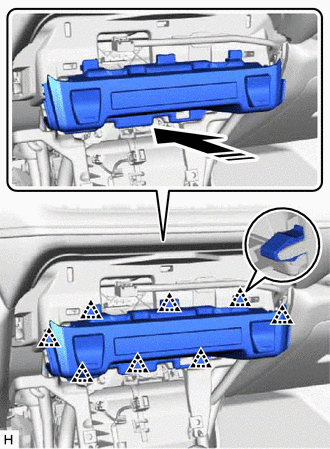

Attach the guide and claw to install the instrument panel hole cover as shown in the illustration.

Hide Display 86160P 4.INSTALL FRONT NO. 2 SPEAKER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>INSTRUMENT PANEL SPEAKER>INSTALLATION201910,999999,_56,_083086,_0400673,RM100000001J9BN_01_0001,

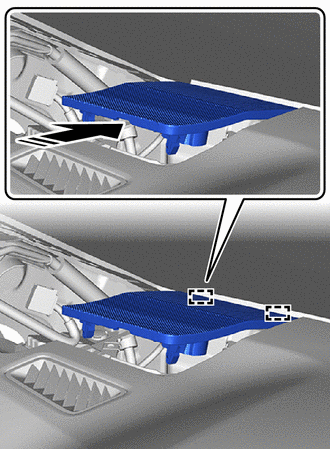

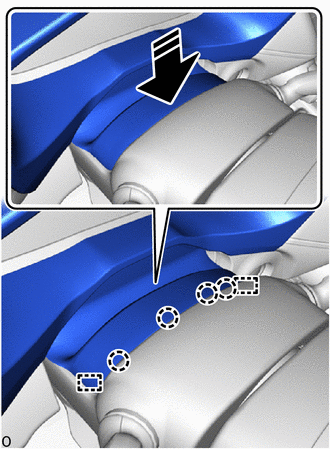

Hide Display 55535B 5.INSTALL NO. 2 SPEAKER HOLE COVER

a.

for 6 Speakers:

i.

Connect the connector.

b.

0,0 0,0 false

Install in this Direction

Insert the guide in direction indicated by the arrow shown in the illustration.

c.

0,0 0,0 false

Install in this Direction

Attach the clip to install the No. 2 speaker hole cover as shown in the illustration.

Hide Display 62211 6.INSTALL FRONT PILLAR GARNISH RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202304,999999,_58,_083106,_0400609,RM1000000029RSX_01_0004,

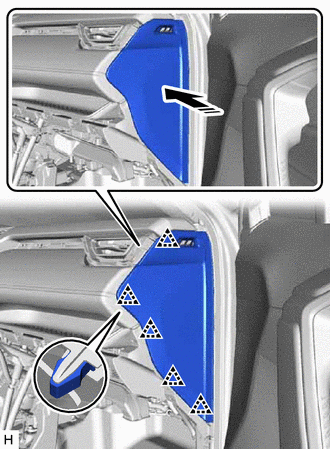

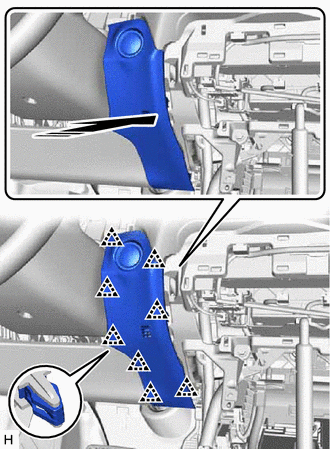

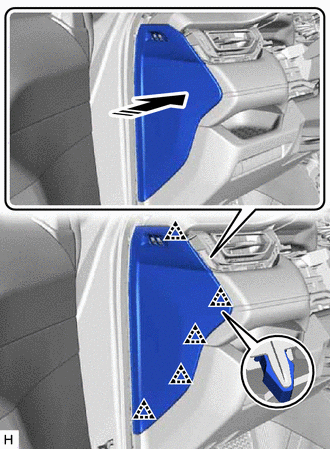

Hide Display 55317A 7.INSTALL INSTRUMENT SIDE PANEL RH

a.

0,0 0,0 false

Install in this Direction

Attach the guide as shown in the illustration.

b.

0,0 0,0 false

Install in this Direction

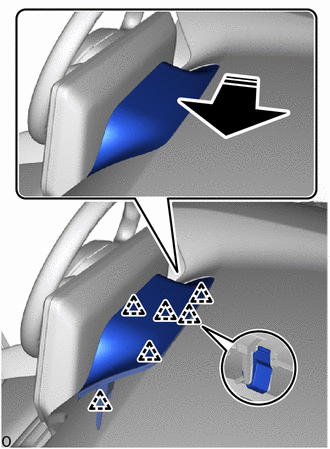

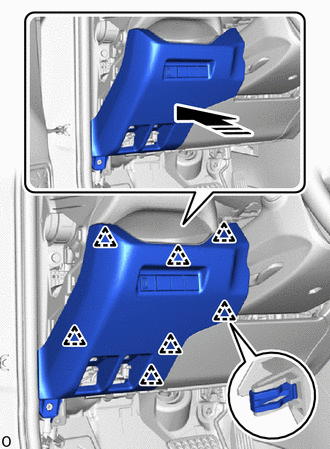

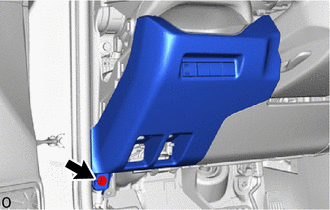

Attach the clip to install the instrument side panel RH as shown in the illustration.

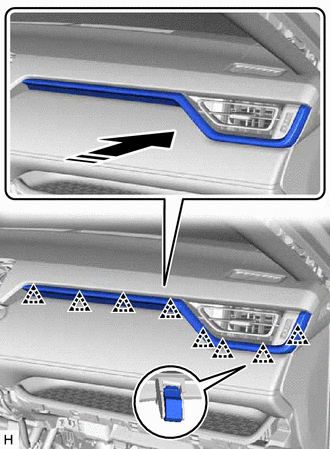

Hide Display 55475A 8.INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

a.

0,0 0,0 false

Install in this Direction

Attach the clip to install the No. 2 instrument cluster finish panel garnish as shown in the illustration.

Hide Display 55433B 9.INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

a.

0,0 0,0 false

Install in this Direction

Attach the clip to install the lower No. 2 instrument panel finish panel as shown in the illustration.

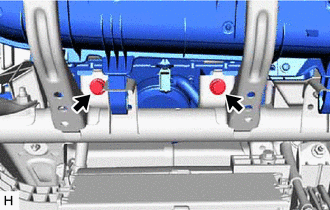

b.

0,0 0,0 false

	Bolt <B>
	Screw <A>

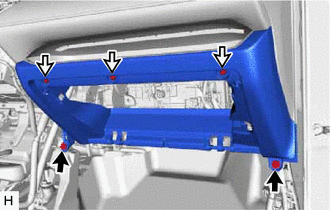

Install the 3 screws <A> and 2 bolts <B>.

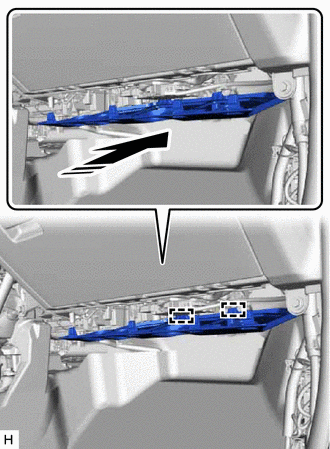

Hide Display 55550 10.INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY

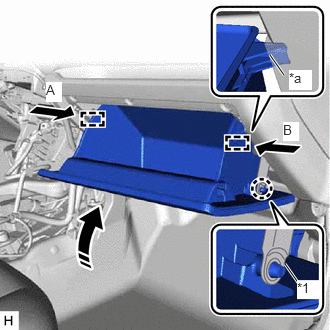

a.

0.531,0.135 0.844,0.292 0.313,0.156 10 false *a 2.031,0.125 2.344,0.281 0.313,0.156 10 false *b

*a	Assembly Position
*b	Closed Position
	Install in this Direction

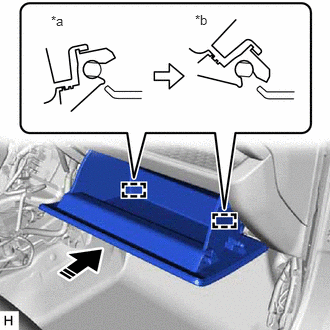

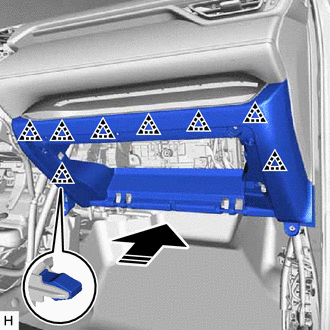

With the glove compartment door assembly in the assembly position, attach the hinge horizontally.

NOTICE:: Attach the hinges from the top will deform the hinges. Be sure to install the glove compartment door assembly horizontally.

b.

2.958,0.781 2.813,0.573 true 3.115,2.958 2.969,2.75 true 3.094,2.917 3.344,3.115 0.25,0.198 10 true *1 3.01,0.729 3.25,0.938 0.24,0.208 10 true *a 0.479,0.854 0.646,1.063 0.167,0.208 10 true A 2.948,1.271 3.115,1.469 0.167,0.198 10 true B

*1	Glove Compartment Door Stopper Sub-assembly
*a	Stopper
	Install in this Direction

Slightly bend the stoppers (A) and (B) in the directions indicated by the arrows in the illustration and attach the stoppers to install the glove compartment door assembly.

c.

Attach the claw to install the glove compartment door stopper sub-assembly.

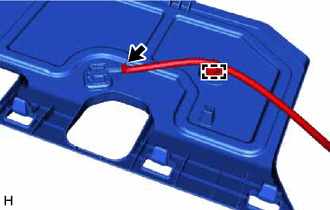

Hide Display 55607 11.INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

a.

w/ Foot light:

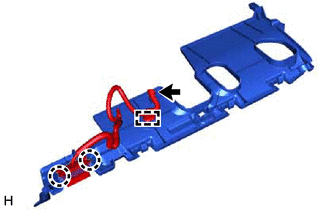

Attach the clamp and connect the connector.

HINT:: Even if there is no foot light, if there is a connector, connect the connector and attach the clamp.

b.

0,0 0,0 false

Install in this Direction

Insert the guide in the direction indicated by the arrow shown in the illustration.

c.

1.208,2.74 1.5,2.938 0.292,0.198 10 true (1) 0.385,2.771 0.688,2.969 0.302,0.198 10 true (2) 2.073,2.719 2.365,2.917 0.292,0.198 10 true (3) 2.74,2.677 3.104,2.865 0.365,0.188 10 true (4)

Install in this Direction

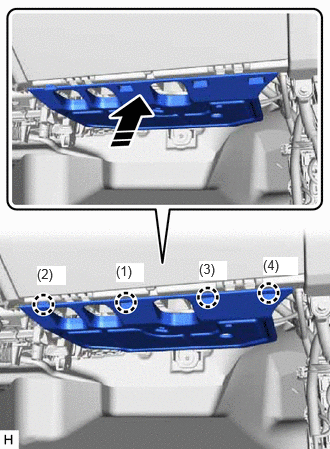

Lift up in the installation direction, attach the claw in the order shown in the illustration to install the No. 2 instrument panel under cover sub-assembly.

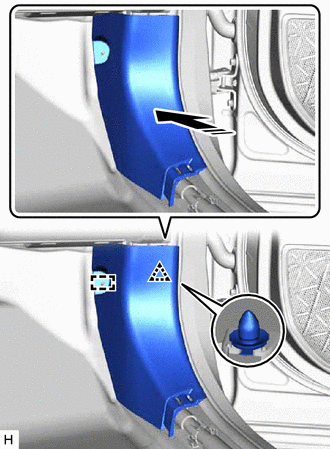

Hide Display 62111C 12.INSTALL COWL SIDE TRIM BOARD RH

a.

0,0 0,0 false

Install in this Direction

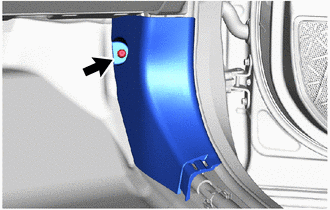

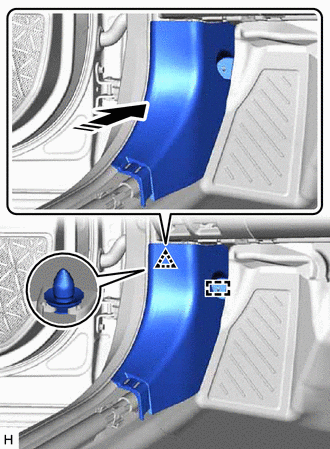

Attach the clamp and clip to install the cowl side trim board RH in the direction indicated by the arrow shown in the illustration.

b.

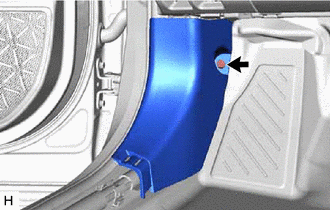

Install the cap nut.

Hide Display 67913B 13.INSTALL FRONT DOOR SCUFF PLATE RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202304,999999,_58,_083106,_0400609,RM1000000029RSX_01_0035,

Hide Display 62311B 14.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

a.

Install the front door opening trim weatherstrip RH.

Hide Display 86160P 15.INSTALL FRONT NO. 2 SPEAKER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>INSTRUMENT PANEL SPEAKER>INSTALLATION201910,999999,_56,_083086,_0400673,RM100000001J9BN_01_0001,

Hide Display 55525 16.INSTALL NO. 1 SPEAKER HOLE COVER

a.

for 6 Speakers:

i.

Connect the connector.

b.

0,0 0,0 false

Install in this Direction

Insert the guide in direction indicated by the arrow shown in the illustration.

c.

0,0 0,0 false

Install in this Direction

Attach the clip to install the No. 1 speaker hole cover as shown in the illustration.

Hide Display 62212 17.INSTALL FRONT PILLAR GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202304,999999,_58,_083106,_0400609,RM1000000029RSX_01_0004,

Hide Display 73900 18.INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>KNEE AIRBAG ASSEMBLY>INSTALLATION202405,202409,_58,_083100,_0400495,RM100000002LW6M_01_0188,202409,999999,_58,_083100,_0400495,RM100000002NG0C_01_0188,

Hide Display 55480D 19.INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

a.

w/ Entry and Start System:

Connect the connector.

b.

0,0 0,0 false

Install in this Direction

Attach the clip to install the lower instrument panel finish panel assembly as shown in the illustration.

Hide Display 55545 20.INSTALL FUSE BOX OPENING COVER

a.

for HV Model:

Connect the connector.

b.

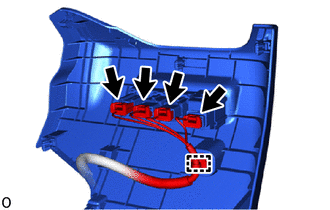

Attach the clamp.

c.

Connect each connector.

d.

0,0 0,0 false

Install in this Direction

Attach the clip to install the fuse box opening cover as shown in the illustration.

e.

0,0 0,0 false

Bolt <B>

Install the bolt <B>.

Hide Display 77306 21.INSTALL FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY (for Gasoline Model)

a.

0,0 0,0 false

Install in this Direction

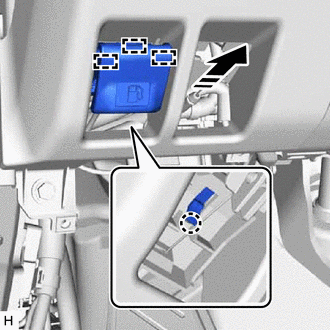

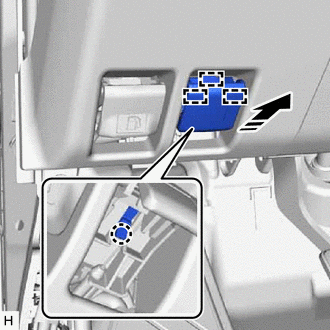

Attach the guide and claw to install the fuel lid lock open lever sub-assembly in the direction indicated by the arrow as shown in the illustration.

Hide Display 53601 22.INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

a.

0,0 0,0 false

Install in this Direction

Attach the guide and claw to install the hood lock control lever sub-assembly in the direction indicated by the arrow shown in the illustration.

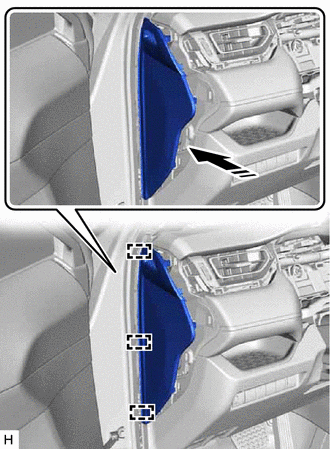

Hide Display 55318C 23.INSTALL INSTRUMENT SIDE PANEL LH

a.

0,0 0,0 false

Install in this Direction

Attach the guide as shown in the illustration.

b.

0,0 0,0 false

Install in this Direction

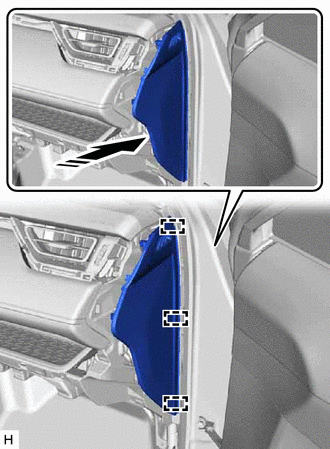

Attach the clip to install the instrument side panel LH as shown in the illustration.

Hide Display 62312B 24.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

a.

Install the front door opening trim weatherstrip LH.

Hide Display 55606 25.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

a.

w/ Foot light:

i.

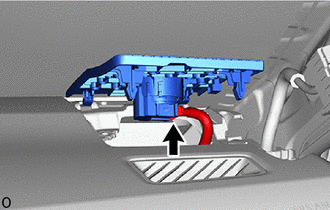

Attach the claw to install the DLC3.

ii.

Attach the clamp and connect the connector.

b.

w/o Foot Light:

i.

Attach the claw to install the DLC3.

HINT:: Even if there is no foot light, if there is a connector, connect the connector and attach the clamp.

c.

0,0 0,0 false

Install in this Direction

Insert the guide in the direction indicated by the arrow shown in the illustration.

d.

0,0 0,0 false

Install in this Direction

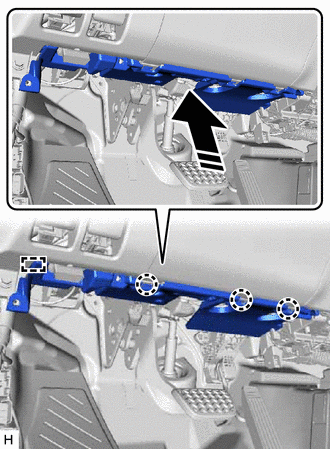

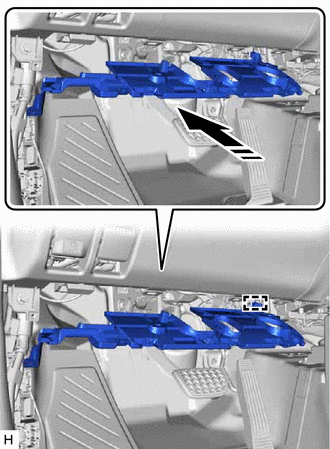

Lift up in the direction indicated by the arrow shown in the illustration to attach the guide and claw to install the No. 1 instrument panel under cover sub-assembly.

e.

0,0 0,0 false

Screw <A>

Install the 3 screws <A>.

Hide Display 62112 26.INSTALL COWL SIDE TRIM BOARD LH

a.

0,0 0,0 false

Install in this Direction

Attach the guide and clip to install the cowl side trim board LH in the direction indicated by the arrow shown in the illustration.

b.

Install the cap nut.

Hide Display 67914B 27.INSTALL FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202304,999999,_58,_083106,_0400609,RM1000000029RSX_01_0035,

Hide Display 55434B 28.INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

a.

Connect each connector.

b.

0,0 0,0 false

Install in this Direction

Attach the clip to install the lower center instrument panel finish panel.

Hide Display 55900 29.INSTALL AIR CONDITIONING CONTROL ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING PANEL>INSTALLATION201910,999999,_58,_083104,_0403077,RM100000001JNHS_01_0001,

Hide Display 83100 30.INSTALL COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>INSTALLATION202405,202409,_58,_083097,_0400582,RM100000002IF3X_01_0004,202409,999999,_58,_083097,_0400582,RM100000002NG1X_01_0004,

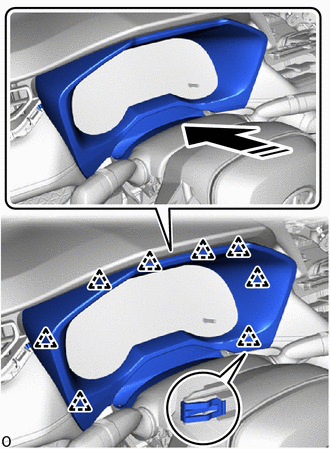

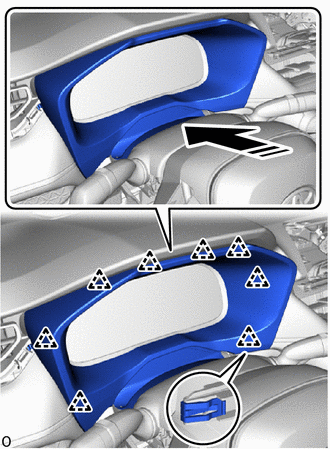

Hide Display 55410C 31.INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

a.

except 12.3 Inch Display:

i.

0,0 0,0 false

Install in this Direction

Attach the clip to install the instrument cluster finish panel assembly.

ii.

0,0 0,0 false

Install in this Direction

Attach the claw and guide.

b.

for 12.3 Inch Display:

i.

0,0 0,0 false

Install in this Direction

Attach the clip to install the instrument cluster finish panel assembly.

ii.

0,0 0,0 false

Install in this Direction

Attach the claw and guide.

Hide Display 55474B 32.INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH

a.

0,0 0,0 false

Install in this Direction

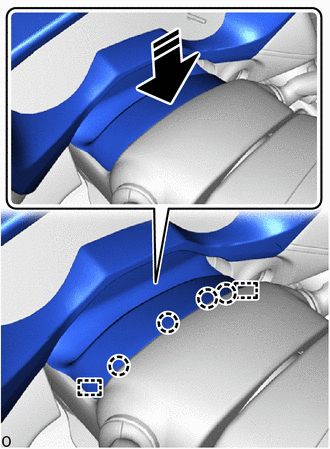

Attach the guide and clip to install the instrument cluster finish panel garnish as shown in the illustration.

Hide Display 33.INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for Radio and Display Type)

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>INSTALLATION202304,999999,_56,_083086,_0400670,RM1000000029SYS_01_0015,

Hide Display 34.INSTALL NAVIGATION RECEIVER ASSEMBLY WITH BRACKET (for Navigation Receiver Type)

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>INSTALLATION202304,999999,_56,_083086,_0400670,RM1000000029SYS_01_0017,

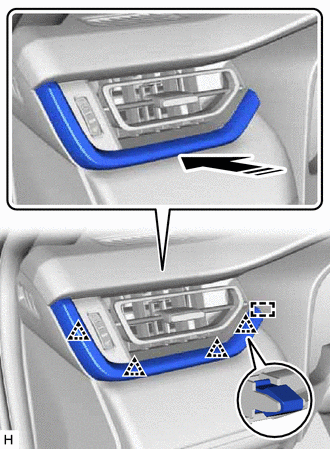

Hide Display 55422C 35.INSTALL CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL

a.

0,0 0,0 false

Install in this Direction

Attach the clip to install the center upper instrument cluster finish panel.

Hide Display 36.INSTALL CONSOLE BOX ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>INSTALLATION202304,999999,_58,_083106,_0400608,RM1000000029Q1L,

Hide Display 37.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

·

for M20C-FKS:

Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>INSTALLATION202304,999999,_V1,_083136,_0418197,RM100000002A9BV,

·

for M20D-FKS:

Click hereGeneral>MAINTENANCE>M20D-FKS BATTERY>INSTALLATION202304,999999,_V1,_083136,_0403617,RM100000002A9CC,

·

for A25B-FXS:

Click hereGeneral>MAINTENANCE>A25B-FXS AUXILIARY BATTERY>INSTALLATION202304,999999,_V1,_083136,_0403618,RM100000002A9CD,

·

for A25D-FXS:

Click hereGeneral>MAINTENANCE>A25D-FXS AUXILIARY BATTERY>INSTALLATION202304,999999,_V1,_083136,_0477834,RM100000002A9D9,

·

for A25F-FXS:

Click hereGeneral>MAINTENANCE>A25F-FXS AUXILIARY BATTERY (Production date from 2021/08)>INSTALLATION202304,999999,_V1,_083136,_0486275,RM100000002A9DH,

Hide Display 45287 38.INSTALL LOWER STEERING COLUMN COVER

Click hereVehicle Exterior>WIPER / WASHER>WIPER SWITCH>INSTALLATION201910,999999,_59,_083109,_0402379,RM100000001JI49_01_0003,

Hide Display 39. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202405,202409,_V1,_083041,_0402304,RM100000002LTUF,202409,999999,_V1,_083041,_0402304,RM100000002NY03,

Hide Display 40.CHECK SRS WARNING LIGHT

·

for GTMC Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>OPERATION CHECK202405,999999,_58,_083100,_0694959,RM100000002LV17,

·

for SFTM Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>OPERATION CHECK202405,202409,_58,_083100,_0694957,RM100000002LV45,202409,999999,_58,_083100,_0694957,RM100000002NSNY,

Hide Display 41. PERFORM DIAGNOSTIC SYSTEM CHECK

·

for GTMC Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>DTC CHECK / CLEAR202405,999999,_58,_083100,_0694959,RM100000002LV1B,

·

for SFTM Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>DTC CHECK / CLEAR202405,202409,_58,_083100,_0694957,RM100000002LV48,202409,999999,_58,_083100,_0694957,RM100000002NSO1,
