NETWORKING  CAN COMMUNICATION SYSTEM(for SFTM Made Gasoline Model)  ECM Communication Stop Mode

For the circuit diagram of the ECM source refer to the ECM power source circuit.

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>ECM Power Source Circuit202304,202409,_51,_083058,_0401834,RM1000000029CAJ,202409,999999,_51,_083058,_0401834,RM100000002NA5G,

For the circuit diagram of the ECM source refer to the VC output circuit.

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>VC Output Circuit202304,202409,_51,_083058,_0401834,RM1000000029CAK,202409,999999,_51,_083058,_0401834,RM100000002NA5I,

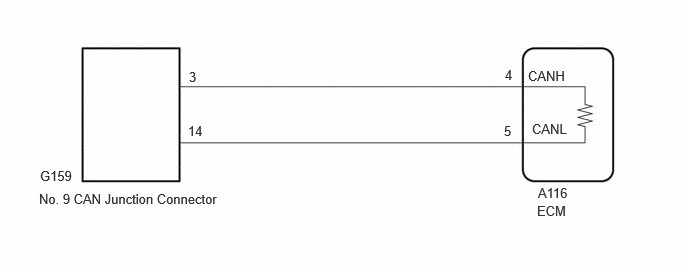

5.604,1.927 6.125,2.188 0.521,0.26 10 false A116 0.406,1.99 2.948,2.385 2.542,0.396 10 false No. 9 CAN Junction Connector 0.417,1.75 0.875,1.948 0.458,0.198 10 false G159 5.594,2.115 7.115,2.583 1.521,0.469 10 false ECM 5.542,1.26 6,1.458 0.458,0.198 10 false CANL 5.5,0.708 5.958,0.906 0.458,0.198 10 false CANH 5.26,0.698 5.719,0.896 0.458,0.198 10 false 4 5.25,1.281 5.708,1.479 0.458,0.198 10 false 5 1.969,0.719 2.427,0.917 0.458,0.198 10 false 3 1.958,1.281 2.417,1.479 0.458,0.198 10 false 14

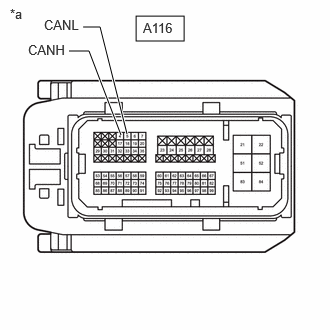

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.

NOTICE:

·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for SFTM Made Gasoline Model)>HOW TO PROCEED WITH TROUBLESHOOTING202405,202409,_57,_083091,_0694854,RM100000002LUIS,202409,999999,_57,_083091,_0694854,RM100000002NUBH,

·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.

·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202304,999999,_V1,_083041,_0402304,RM100000002AYZV,

·

When disconnecting and reconnecting the battery.

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202405,202409,_V1,_083041,_0402304,RM100000002LTUF,202409,999999,_V1,_083041,_0402304,RM100000002NY03,

·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE202405,202409,_V1,_083041,_0402305,RM100000002ISNH,202409,999999,_V1,_083041,_0402305,RM100000002NY04,

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for SFTM Made Gasoline Model)>DIAGNOSIS SYSTEM202405,999999,_57,_083091,_0694854,RM100000002LVP6,

HINT:

·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.
