RM36D0EC _58 Vehicle Interior _083097 METER / GAUGE / DISPLAY _0418056 HEADUP DISPLAY A

METER / GAUGE / DISPLAY HEADUP DISPLAY INSTALLATION

PROCEDURE

Hide Display 1.INSTALL HEADUP DISPLAY

a.

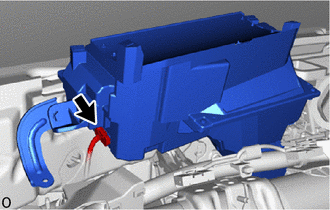

E430238

Connect the connector.

b.

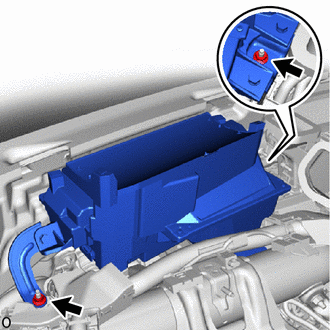

E430237

Install the headup display with the 2 nuts.

Hide Display 2.INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION202405,999999,_58,_083106,_0400607,RM100000002LWUO,

Hide Display 3.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

·

for M20C-FKS:

Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>INSTALLATION202304,999999,_V1,_083136,_0418197,RM100000002A9BV,

·

for A25B-FXS:

Click hereGeneral>MAINTENANCE>A25B-FXS AUXILIARY BATTERY>INSTALLATION202304,999999,_V1,_083136,_0403618,RM100000002A9CD,

·

for A25D-FXS:

Click hereGeneral>MAINTENANCE>A25D-FXS AUXILIARY BATTERY>INSTALLATION202304,999999,_V1,_083136,_0477834,RM100000002A9D9,

·

for A25F-FXS:

Click hereGeneral>MAINTENANCE>A25F-FXS AUXILIARY BATTERY (Production date from 2021/08)>INSTALLATION202304,999999,_V1,_083136,_0486275,RM100000002A9DH,

Hide Display 4. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202405,202409,_V1,_083041,_0402304,RM100000002LTUF,202409,999999,_V1,_083041,_0402304,RM100000002NY03,

Hide Display 5.CHECK SRS WARNING LIGHT

·

for GTMC Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>OPERATION CHECK202405,999999,_58,_083100,_0694959,RM100000002LV17,

·

for SFTM Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>OPERATION CHECK202405,202409,_58,_083100,_0694957,RM100000002LV45,202409,999999,_58,_083100,_0694957,RM100000002NSNY,

Hide Display 6. PERFORM DIAGNOSTIC SYSTEM CHECK

·

for GTMC Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>DTC CHECK / CLEAR202405,999999,_58,_083100,_0694959,RM100000002LV1B,

·

for SFTM Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>DTC CHECK / CLEAR202405,202409,_58,_083100,_0694957,RM100000002LV48,202409,999999,_58,_083100,_0694957,RM100000002NSO1,
