ACOUSTIC VEHICLE ALERTING SYSTEM  VEHICLE APPROACHING SPEAKER  INSTALLATION


PROCEDURE

Hide 86570 1.INSTALL VEHICLE APPROACHING SPEAKER ASSEMBLY

NOTICE:
·

When installing the vehicle approaching speaker assembly, take care not to damage it.

·

Do not reuse a vehicle approaching speaker assembly that has been dropped or subjected to a strong shock.

·

Do not push the vehicle approaching speaker assembly center area.



a.

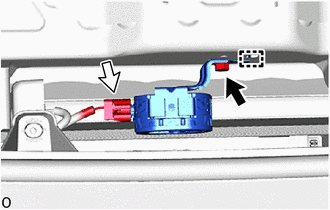

B515640C01
0,0 0,0 false
V100135

Bolt
V100136

Connector


Attach the guide and install the vehicle approaching speaker assembly with the bolt.

Torque:
23 N*m (235 kgf*cm, 17 ft.*lbf)


b.

Connect the connector.
