RM36D0EC _59 Vehicle Exterior _083111 EXTERIOR PANELS / TRIM _0417478 REAR BUMPER(for Type B) A

EXTERIOR PANELS / TRIM REAR BUMPER(for Type B) DISASSEMBLY

PROCEDURE

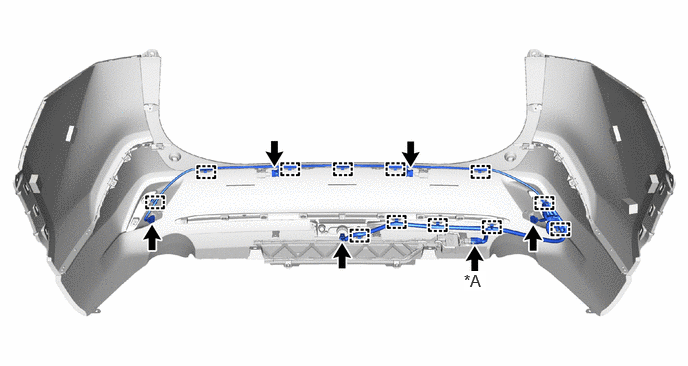

Hide Display 82182 1.REMOVE NO. 2 LUGGAGE ROOM WIRE

Disconnect each connector.

NOTICE:: Do not apply excessive loads to the retainer. Otherwise, it may peel off.

Detach the clamp and remove the No. 2 luggage room wire.

4.833,2.823 5.063,3.031 0.229,0.208 12 true *A

w/ Hands Free Power Back Door

Hide Display 89342 2.REMOVE REAR CORNER ULTRASONIC SENSOR

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Rear)>REMOVAL202405,202409,_56,_083082,_0403105,RM100000002LWF2_01_0043,202409,999999,_56,_083082,_0403105,RM100000002NU01_01_0043,

Hide Display 89342A 3.REMOVE REAR CENTER ULTRASONIC SENSOR

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Rear)>REMOVAL202405,202409,_56,_083082,_0403105,RM100000002LWF2_01_0044,202409,999999,_56,_083082,_0403105,RM100000002NU01_01_0044,

Hide Display 89C48A 4.REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Rear)>REMOVAL202405,202409,_56,_083082,_0403105,RM100000002LWF2_01_0045,202409,999999,_56,_083082,_0403105,RM100000002NU01_01_0045,

Hide Display 89C48B 5.REMOVE REAR CENTER ULTRASONIC SENSOR RETAINER

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Rear)>REMOVAL202405,202409,_56,_083082,_0403105,RM100000002LWF2_01_0037,202409,999999,_56,_083082,_0403105,RM100000002NU01_01_0037,

Hide Display 891B1 6.REMOVE KICK DOOR CONTROL BRACKET (w/ Hands Free Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>KICK SENSOR>REMOVAL202405,202409,_59,_083093,_0417406,RM100000002LU2V_02_0007,202409,999999,_59,_083093,_0417406,RM100000002NG1U_02_0007,

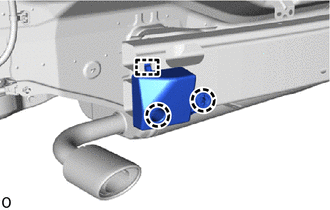

Hide Display 52162A 7.REMOVE REAR BUMPER PIECE LH

Remove the 2 screws.

Remove the 3 outside moulding retainers.

0,0 0,0 false

Remove in this Direction

Detach the guide and claw to remove the rear bumper piece LH.

Hide Display 52161A 8.REMOVE REAR BUMPER PIECE RH

HINT:: Use the same procedure described for the LH side.

Hide Display 9.REMOVE SPRING NUT

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR BUMPER (for Type A)>DISASSEMBLY202304,999999,_59,_083111,_0400752,RM1000000029RQY_01_0216,

Hide Display 81480A 10.REMOVE REAR FOG LIGHT ASSEMBLY

Click hereVehicle Exterior>LIGHTING (EXT)>REAR FOG LIGHT ASSEMBLY>REMOVAL202004,999999,_59,_083096,_0403540,RM100000001MODG_02_0003,

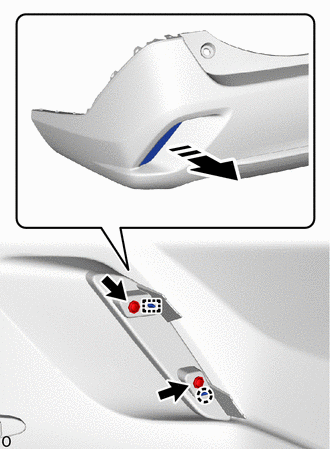

Hide Display 81920 11.REMOVE REFLEX REFLECTOR ASSEMBLY LH

0,0 0,0 false

Remove in this Direction

Remove the 2 screws.

Detach the guide and claw and remove the reflex reflector assembly LH.

Hide Display 81910 12.REMOVE REFLEX REFLECTOR ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

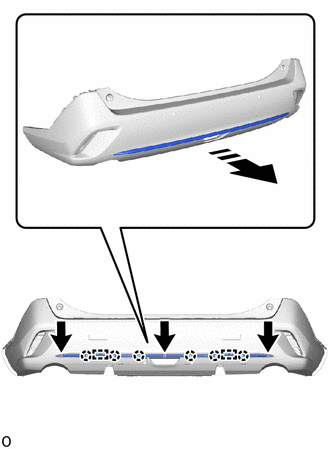

Hide Display 52751C 13.REMOVE REAR BUMPER MOULDING

0,0 0,0 false

Remove in this Direction

Remove the 3 screws.

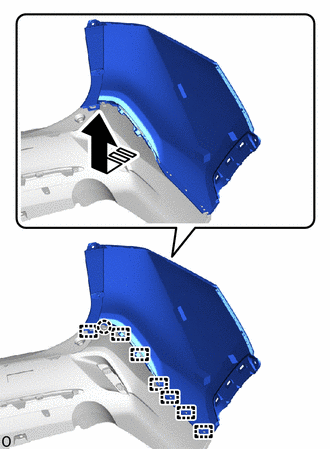

Detach the guide and claw and remove the rear bumper moulding as shown in the illustration.

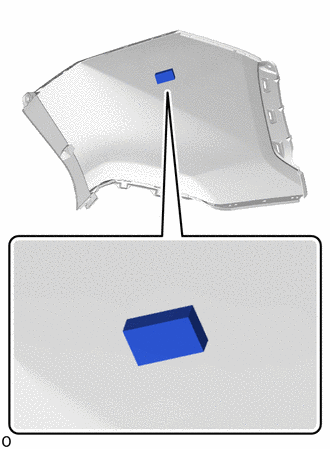

Hide Display 52461F 14.REMOVE REAR BUMPER CENTER PAD

HINT:: When removing the rear bumper center pad, if the double-sided tape is difficult to remove, heat the adhesive of the rear bumper center pad and rear bumper cover using a heat light.

Standard:

Item	Temperature
Rear Bumper Cover	20 to 30°C (68 to 86°F)
Rear Bumper Center Pad	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the rear bumper cover and rear bumper center pad excessively.

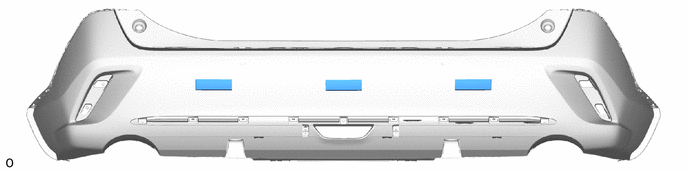

Remove the 3 rear bumper center pads.

Hide Display 76829A 15.REMOVE BACK DOOR GARNISH RETAINER

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR BUMPER (for Type A)>DISASSEMBLY202304,999999,_59,_083111,_0400752,RM1000000029RQY_01_0236,

Hide Display 52463B 16.REMOVE REAR BUMPER FRONT PAD LH

HINT:: When removing the rear bumper front pad LH, if the double-sided tape is difficult to remove, heat the adhesive of the rear bumper front pad LH using a heat light.

Standard:

Item	Temperature
Rear Bumper Front Pad LH	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the rear bumper front pad LH excessively.

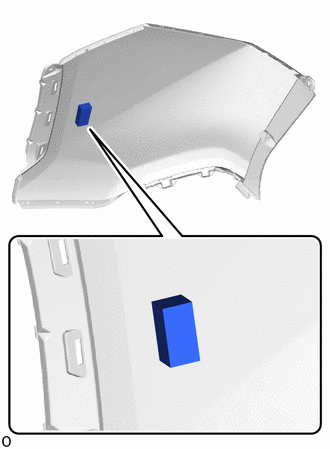

Remove the rear bumper front pad LH.

Hide Display 52463B 17.REMOVE REAR BUMPER FILLER PAD LH

HINT:: When removing the rear bumper filler pad LH, if the double-sided tape is difficult to remove, heat the adhesive of the rear bumper filler pad LH using a heat light.

Standard:

Item	Temperature
Rear Bumper Filler Pad LH	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the rear bumper filler pad LH excessively.

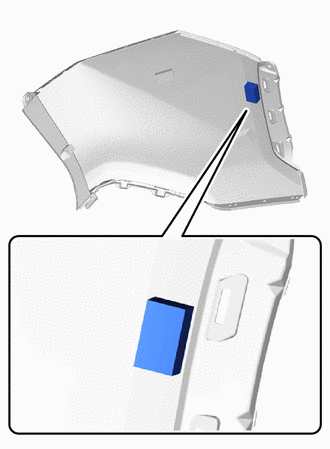

Remove the rear bumper filler pad LH.

Hide Display 52463 18.REMOVE REAR BUMPER PAD LH

HINT:: When removing the rear bumper pad LH, if the double-sided tape is difficult to remove, heat the adhesive of the rear bumper pad LH using a heat light.

Standard:

Item	Temperature
Rear Bumper Pad LH	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the rear bumper pad LH excessively.

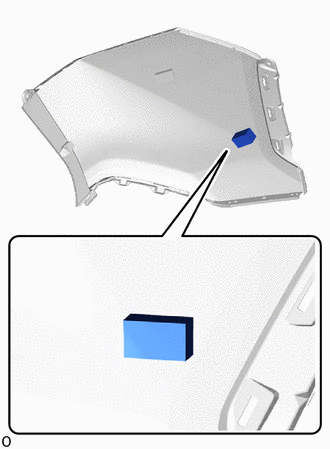

Remove the rear bumper pad LH.

Hide Display 52462 19.REMOVE REAR BUMPER PAD RH

HINT:: When removing the rear bumper pad RH, if the double-sided tape is difficult to remove, heat the adhesive of the rear bumper pad RH using a heat light.

Standard:

Item	Temperature
Rear Bumper Pad RH	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the rear bumper pad RH excessively.

Remove the rear bumper pad RH.

Hide Display 52462C 20.REMOVE REAR BUMPER FRONT PAD RH

HINT:: When removing the rear bumper front pad RH., if the double-sided tape is difficult to remove, heat the adhesive of the rear bumper front pad RH using a heat light.

Standard:

Item	Temperature
Rear Bumper Front Pad RH.	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the rear bumper front pad RH excessively.

Remove the rear bumper front pad RH.

Hide Display 21.REMOVE REAR COMBINATION LIGHT ASSEMBLY LH

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY>REMOVAL202004,999999,_59,_083096,_0402632,RM100000001MODL,

Hide Display 22.REMOVE REAR COMBINATION LIGHT ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

Hide Display 52563A 23.REMOVE REAR BUMPER UPPER RETAINER LH

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR BUMPER (for Type A)>DISASSEMBLY202304,999999,_59,_083111,_0400752,RM1000000029RQY_01_0239,

Hide Display 52562B 24.REMOVE REAR BUMPER UPPER RETAINER RH

HINT:: Use the same procedure described for the LH side.

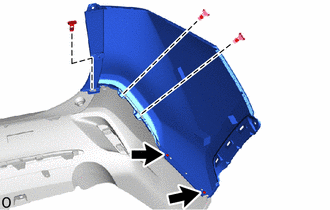

Hide Display 52156A 25.REMOVE REAR BUMPER SIDE SUPPORT LH

2.792,3.229 2.979,3.417 0.188,0.188 10 false *a

*a	90^°
	Remove in this Direction

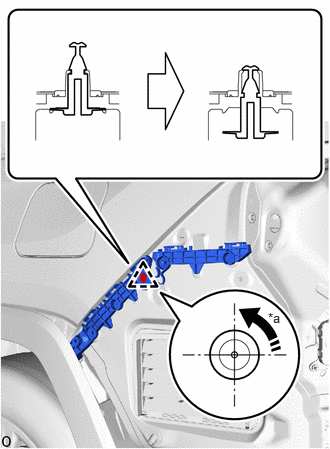

Using a screwdriver, turn the clip 90^°and detach the clip as shown in the illustration.

Remove the 2 screws.

0,0 0,0 false

Remove in this Direction

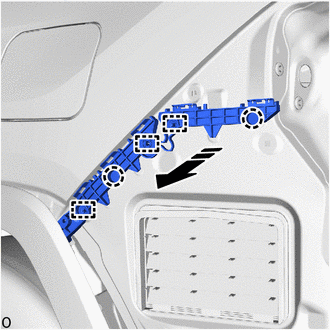

Detach the guide and claw to remove the rear bumper side support LH as shown in the illustration.

Hide Display 52155A 26.REMOVE REAR BUMPER SIDE SUPPORT RH

HINT:: Use the same procedure described for the LH side.

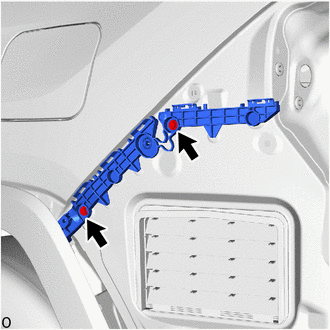

Hide Display 52188A 27.REMOVE REAR BUMPER ARM REINFORCEMENT LH

Detach the claw and guide and remove the rear bumper arm reinforcement LH.

Hide Display 52187A 28.REMOVE REAR BUMPER ARM REINFORCEMENT RH

HINT:: Use the same procedure described for the LH side.

Hide Display 52023 29.REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR BUMPER (for Type A)>DISASSEMBLY202304,999999,_59,_083111,_0400752,RM1000000029RQY_01_0243,
