RM36D0EC _59 Vehicle Exterior _083096 LIGHTING (EXT) _0402632 REAR COMBINATION LIGHT ASSEMBLY A

LIGHTING (EXT)  REAR COMBINATION LIGHT ASSEMBLY  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure described below is for the LH side.



PROCEDURE

Hide 64740E 5.REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

a.

Remove the rear side of the deck trim side panel assembly LH so that the connector of the rear combination light assembly LH can be disconnected.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL


Hide 81498 6.REMOVE REAR COMBINATION LIGHT COVER LH

a.

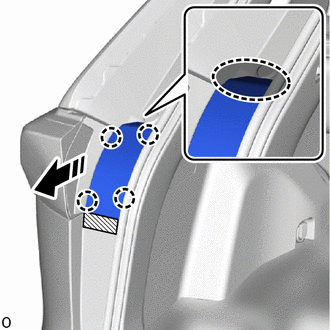

B555535C01
0,0 0,0 false
V113146

Place Hands Here
V113147

Remove in this Direction
V100155

Protective Tape


Apply protective tape as shown in the illustration.


b.

Place your hands at the position shown in the illustration, pull in the removal direction, detach the claw and remove the rear combination light cover LH.


Hide 7.REMOVE REAR COMBINATION LIGHT ASSEMBLY LH

a.
B555537

Insert your hand between the deck trim side panel assembly LH and the body and disconnect the connector.


b.

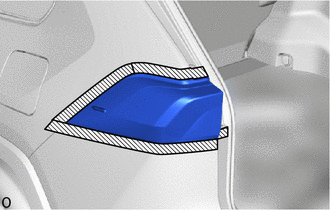

B555538C01
0,0 0,0 false
V100155

Protective Tape


for Type A:

i.

Apply protective tape as shown in the illustration.


ii.
B555539

Remove the 2 screws.


iii.
B555540C01
1.208,2.042 1.406,2.229 0.198,0.188 10 true *a 0.74,2.635 0.938,2.823 0.198,0.188 10 true *b 1.74,2.792 1.938,2.979 0.198,0.188 10 true *b 2.042,2.792 2.24,2.979 0.198,0.188 10 true *b
*a Pin
*b Guide
V113146

Place Hands Here
V113147

Remove in this Direction


Place your hands at the position shown in the illustration, pull in the removal direction, detach the guide and pin and remove the rear combination light assembly LH.

NOTICE:

Pull the rear combination light assembly LH straight towards the rear of the vehicle to prevent the guide from becoming damaged.




c.
B573026C01
0,0 0,0 false
V100155

Protective Tape


for Type B:

i.

Apply protective tape as shown in the illustration.


ii.
B573027

Remove the 2 screws.


iii.
B573028C02
1.208,2.219 1.406,2.406 0.198,0.188 10 true *a 0.771,2.865 0.969,3.052 0.198,0.188 10 true *b 1.854,3.042 2.052,3.229 0.198,0.188 10 true *b 2.167,3.052 2.365,3.24 0.198,0.188 10 true *b
*a Pin
*b Guide
V113146

Place Hands Here
V113147

Remove in this Direction


Place your hands at the position shown in the illustration, pull in the removal direction, detach the guide and pin and remove the rear combination light assembly LH.

NOTICE:

Pull the rear combination light assembly LH straight towards the rear of the vehicle to prevent the guide from becoming damaged.




d.

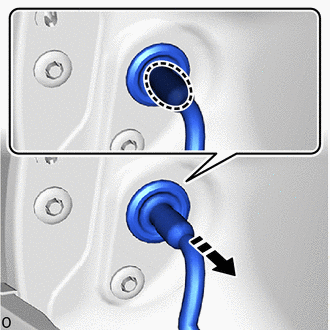

B557684C01
0,0 0,0 false
V113146

Place Hands Here
V113147

Remove in this Direction


Place your hands at the position shown in the illustration, remove the grommet and pull out the wire harness.

NOTICE:

Do not hold the cord when pulling out the wire harness.
