RM36D0EC _52 Drivetrain _138817 K121F CVT _0596468 CONTINUOUSLY VARIABLE TRANSAXLE SYSTEM C

K121F CVT  CONTINUOUSLY VARIABLE TRANSAXLE SYSTEM  P091412  Gear Shift Position Circuit Short to Battery


DESCRIPTION

A magnet is installed to the shift fork. When the ECM commands the S1 synchronizer to move, the shift fork moves the S1 synchronizer together and the magnet.

The Hall IC built into the shift stroke sensor converts the magnet position into a voltage signal and sends it to the ECM. The ECM judges the S1 synchronizer operating condition (whether the S1 synchronizer is engaged or released) based on this signal.

DTC No. Detection Item DTC Detection Condition Trouble Area MIL DTC Output from Priority Note
P091412 Gear Shift Position Circuit Short to Battery A short to +B is detected in the shift stroke sensor circuit for 5 seconds or more (1-trip detection logic).
·

Shift stroke sensor

·

Harness and connector

·

ECM


Comes on Engine A SAE Code:
P0917

MONITOR DESCRIPTION

This DTC indicates a short to +B in the shift stroke sensor circuit. If there is a short to +B in the shift stroke sensor circuit, the ECM detects the malfunction, illuminates the MIL and stores this DTC.

CONFIRMATION DRIVING PATTERN

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


HINT:
·

After repairs have been completed, clear the DTCs and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

·

When clearing the permanent DTCs, refer to the Clear Permanent DTC procedure.

Click hereDrivetrain>K121F (CVT)>CONTINUOUSLY VARIABLE TRANSAXLE SYSTEM>DTC CHECK / CLEAR



1.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

2.

Turn the ignition switch off and wait for 2 minutes or more.

3.

Perform the D Position Shift Test inspection in Road Test. [*1]

Click hereDrivetrain>K121F (CVT)>CONTINUOUSLY VARIABLE TRANSAXLE SYSTEM>ROAD TEST

HINT:

[*1]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.


4.

Stop the vehicle.

5.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

6.

Input the DTC: P091412.

7.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions


N/A
·

Unable to perform DTC judgment

·

Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit



HINT:
·

If the judgment result shows NORMAL, the system is normal.

·

If the judgment result shows ABNORMAL, the system has a malfunction.

·

If the judgment result shows INCOMPLETE or N/A, perform the normal judgment procedure again.

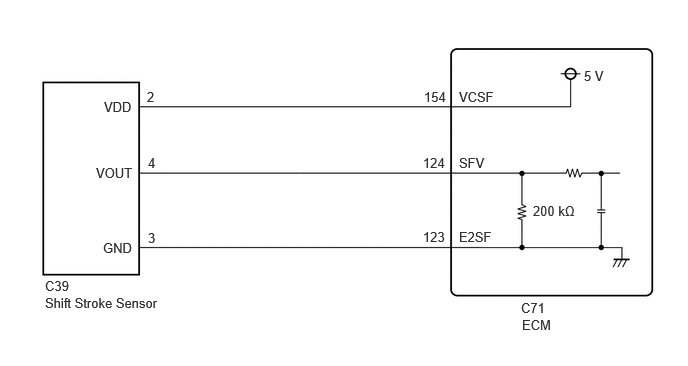

WIRING DIAGRAM

C508684E09
0.469,3.073 2.156,3.271 1.688,0.198 10 false Shift Stroke Sensor 5.438,3.302 6.25,3.667 0.813,0.365 10 false ECM 0.469,2.896 0.927,3.094 0.458,0.198 10 false C39 5.427,3.125 6.146,3.417 0.719,0.292 10 false C71 4.781,2.385 5.396,2.583 0.615,0.198 10 false E2SF 4.781,1.615 5.396,1.813 0.615,0.198 10 false SFV 4.781,0.927 5.396,1.125 0.615,0.198 10 false VCSF 1.083,1.031 1.698,1.229 0.615,0.198 10 false VDD 1,1.719 1.615,1.917 0.615,0.198 10 false VOUT 1.073,2.5 1.688,2.698 0.615,0.198 10 false GND 1.542,2.396 2.156,2.594 0.615,0.198 10 false 3 1.542,1.615 2.156,1.813 0.615,0.198 10 false 4 1.531,0.927 2.146,1.125 0.615,0.198 10 false 2 4.417,0.927 5.031,1.125 0.615,0.198 10 false 154 4.406,1.615 5.021,1.813 0.615,0.198 10 false 124 4.406,2.385 5.021,2.583 0.615,0.198 10 false 123 6.083,0.708 6.698,0.906 0.615,0.198 10 false 5 V 5.552,2.115 6.167,2.313 0.615,0.198 10 false 200 kΩ

PROCEDURE

1.INSPECT ECM (VDD VOLTAGE)

Pre-procedure1

a.

Disconnect the C39 shift stroke sensor connector.


b.

Turn the ignition switch to ON.


Procedure1

c.
C399105C31
1.49,0.188 1.906,0.438 0.417,0.25 1.833,1.156 2.5,0.906 true 0.875,1.677 1.542,1.427 true 1.573,0.24 2.031,0.438 0.458,0.198 10 false C39 0.167,0.167 0.479,0.365 0.313,0.198 10 false *a 2.552,0.833 3.01,1.031 0.458,0.198 10 false VDD 0.542,1.604 1,1.802 0.458,0.198 10 false GND
*a Front view of wire harness connector (to Shift Stroke Sensor)


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
C39-2 (VDD) - C39-3 (GND) Ignition switch ON 4.7 to 5.3 V


Result:
Proceed to
OK
NG



Post-procedure1

d.

Turn the ignition switch off.


e.

Connect the C39 shift stroke sensor connector.



OK

2.CHECK HARNESS AND CONNECTOR (SHIFT STROKE SENSOR - ECM)

NG

5.CHECK HARNESS AND CONNECTOR (SHIFT STROKE SENSOR - ECM)
2.CHECK HARNESS AND CONNECTOR (SHIFT STROKE SENSOR - ECM)

Pre-procedure1

a.

Disconnect the C39 shift stroke sensor connector.


b.

Disconnect the C71 ECM connector.


Procedure1

c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
C39-4 (VOUT) or C71-124 (SFV) - Other terminals Always 10 kΩ or higher


Result:
Proceed to
OK
NG



Post-procedure1

d.

Connect the C71 ECM connector.


e.

Connect the C39 shift stroke sensor connector.



OK

3.INSPECT SHIFT STROKE SENSOR

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CHECK HARNESS AND CONNECTOR (SHIFT STROKE SENSOR - ECM)

Pre-procedure1

a.

Disconnect the C39 shift stroke sensor connector.


b.

Disconnect the C71 ECM connector.


Procedure1

c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
C39-2 (VDD) or C71-154 (VCSF) - Other terminals Always 10 kΩ or higher


Result:
Proceed to
OK
NG



Post-procedure1

d.

Connect the C71 ECM connector.


e.

Connect the C39 shift stroke sensor connector.



OK

6.REPLACE ECM

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
