RM36D0EC _59 Vehicle Exterior _083109 WIPER / WASHER _0402380 WASHER MOTOR A

WIPER / WASHER WASHER MOTOR REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the windshield washer jar assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Front bumper assembly (Including removal and installation)	Front television camera view adjustment	Panoramic view monitor system	(202304,999999,_56,_083082,_0586733,RM1000000029R9F,)

PROCEDURE

Hide Display 1.REMOVE FRONT WHEEL

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL201910,202405,_V1,_083136,_0403660,RM100000001JU8A,202405,202409,_V1,_083136,_0403660,RM100000002LVI8,202409,999999,_V1,_083136,_0403660,RM100000002NOW9,

Hide Display 53895B 2.REMOVE FRONT FENDER FRONT SPLASH SHIELD RH

a.

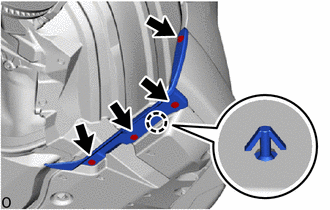

B526377

Remove the 4 screws.

b.

Detach the claw and remove the front fender front splash shield RH.

Hide Display 51441 3.REMOVE NO. 1 ENGINE UNDER COVER

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,202405,_51,_083059,_0403046,RM1000000029XAE_01_0003,202405,202409,_51,_083059,_0403046,RM100000002JNSM_01_0003,202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0003,

Hide Display 75601A 4.REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.; ·

for Off Road Package:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>WHEEL OPENING MOULDING (for Front)>REMOVAL202304,999999,_59,_083111,_0400766,RM1000000029RRO_02_0004,

·

except Off Road Package:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>WHEEL OPENING MOULDING (for Front)>REMOVAL202304,999999,_59,_083111,_0400766,RM1000000029RRO_02_0005,

Hide Display 53875A 5.REMOVE FRONT FENDER LINER RH

a.

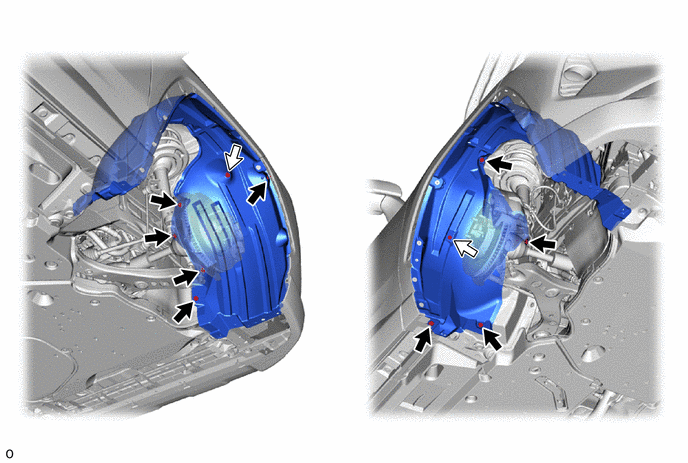

Remove the 9 clips and 2 screws.

B526379C02

0,0 0,0 false

V100135

Clip

V100136

Screw

b.

Remove the grommet.

c.

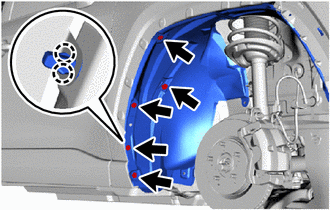

B558670

Using a screwdriver with its tip wrapped with protective tape, detach the claw and remove the 5 grommets.

d.

Remove the front fender liner RH.

Hide Display 6.DRAIN WASHER FLUID

a.

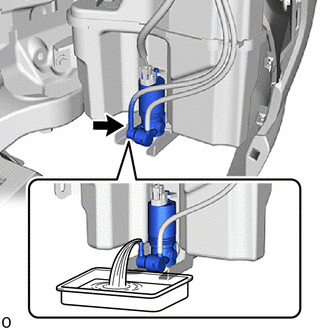

B558648

Disconnect the washer hose from the windshield washer motor and pump assembly, and drain the washer fluid.

HINT:: Use a container to collect the washer fluid.

Hide Display 85310 7.REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

a.

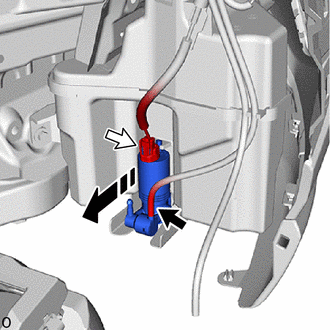

B558649C01

0,0 0,0 false

	Remove in this Direction
	Washer hose
	Connector

Disconnect the washer hose from the windshield washer motor and pump assembly.

b.

Disconnect the connector.

c.

Remove the windshield washer motor and pump assembly as shown in the illustration.

Hide Display 52119A 8.REMOVE FRONT BUMPER COVER

a.

for Type A:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for Type A)>REMOVAL202304,999999,_59,_083111,_0400751,RM1000000029RQQ,

b.

for Type B:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for Type B)>REMOVAL202304,999999,_59,_083111,_0417477,RM1000000029RQU,

c.

for Off Road Package:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for Off Road Package)>REMOVAL202304,999999,_59,_083111,_0587172,RM1000000029SJZ,

Hide Display 85319E 9.REMOVE INLET WASHER

a.

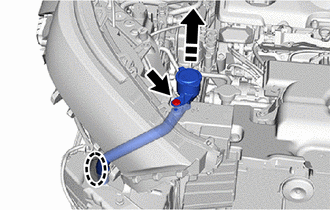

B526383C02

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Remove the clip.

b.

Place your hands at the position shown in the illustration and remove the inlet washer in the direction indicated by the arrow.

Hide Display 85330 10.REMOVE WINDSHIELD WASHER JAR ASSEMBLY

a.

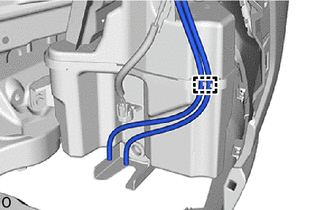

B558650

Detach the clamp and disconnect the washer hose.

b.

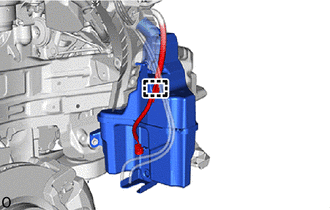

B558651

Detach the clamp.

c.

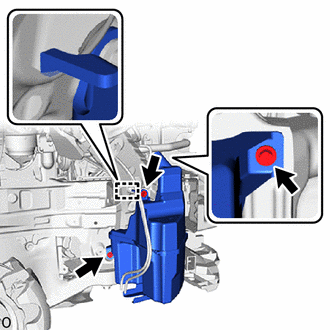

B558654

Remove the 3 bolts. Then detach the guide and remove the windshield washer jar assembly.
