RM36D0EC _53 Suspension _083073 FRONT SUSPENSION _0402673 FRONT SHOCK ABSORBER A

FRONT SUSPENSION FRONT SHOCK ABSORBER INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1.INSTALL SST

Align the cutout on end of the shock rod of the front shock absorber assembly LH with the installation position.

NOTICE:

2.167,0.896 2.917,0.896 true 2.958,0.833 3.292,1.083 0.333,0.25 10 false *a

*a	Cutout
	Vehicle Exterior

Be sure to install the part so that the cutout on the front suspension support sub-assembly LH and the cutout on the shock rod end are aligned.

Install SST (09727-58100) and SST (09727-58130) to the front shock absorber assembly LH.

SST: 09727-58100
09727-58130
09727-58010  (09727-58030)

2.365,0.677 2.365,1.26 2.365,1.26 2.542,1.26 true 2.302,5.573 2.135,5.573 2.135,5.573 1.74,5.094 true 1.844,3.458 1.677,3.458 1.677,3.458 1.427,3.042 true 4.729,3.615 4.563,3.615 4.563,3.615 4.563,3.354 true 4.74,2.188 4.51,1.656 4.51,1.656 4.344,1.656 true 6.156,3.615 5.99,3.615 5.99,3.615 5.99,3.354 true 2.604,1.177 2.917,1.375 0.313,0.198 10 true *1 1.052,2.344 1.365,2.542 0.313,0.198 10 true *a 0.313,3.042 0.625,3.24 0.313,0.198 10 true *b 4.833,3.51 5.146,3.708 0.313,0.198 10 true *c 3.708,0.042 4.094,0.26 0.385,0.219 10 false [#2] 3.75,1.479 4.135,1.698 0.385,0.219 10 false [#3] 0.115,1.938 0.5,2.156 0.385,0.219 10 true [#4] 0.115,0.083 0.5,0.302 0.385,0.219 10 false [#1] 0.219,4.438 0.604,4.656 0.385,0.219 10 true [#5] 2.365,5.5 2.677,5.698 0.313,0.198 10 true *2 1.917,3.365 2.229,3.563 0.313,0.198 10 true *d 6.198,3.51 6.51,3.708 0.313,0.198 10 true *c 4.01,1.552 4.323,1.75 0.313,0.198 10 true *d

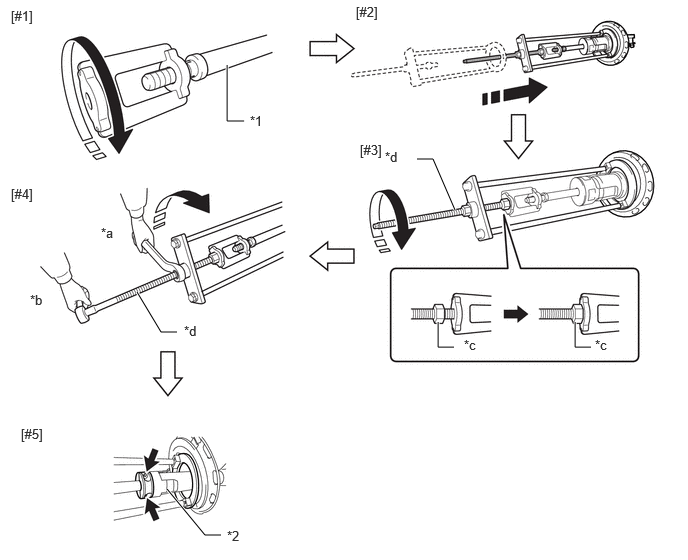

*1	Front Shock Absorber Assembly LH	*2	Shock Absorber Outer Shell
*a	Turn	*b	Hold
*c	Fixing Nut	*d	Bolt

NOTICE:

0,0 0,0 false

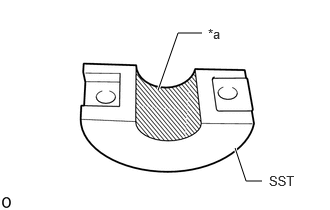

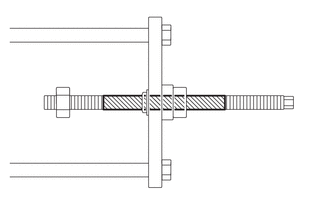

Application Area

Apply molybdenum grease to the bolt (area with diagonal lines) of SST (09727-58010).

Install SST (09727-58030) to the end of the shock rod of the front shock absorber assembly LH.[#1]

ii.

Install SST (09727-58010) to the front shock absorber assembly LH.[#2]

NOTICE:: Take due care when installing SST (09727-58010) to ensure the shock rod is not damaged.

iii.

Secure the SST (09727-58010) bolt and SST (09727-58030) with the fixing nut.[#3]

iv.

After securing the SST (09727-58010) bolt, rotate the nut clockwise.[#4]

HINT:: Extend the shock rod to its maximum length to install SST (09727-58100) and SST (09727-58130).

Using a piece of cloth, etc., clean the shock rod and remove any foreign matter and oil.

NOTICE:: Thoroughly clean the shock rod to prevent damage to the shock rod due to contact of foreign matter.

vi.

1.646,0.938 1.854,0.344 1.854,0.344 2.104,0.344 true 2.729,1.885 2.563,1.885 2.563,1.885 2.448,1.542 true 2.167,0.271 2.51,0.458 0.344,0.188 10 false *a 2.802,1.802 3.25,2.01 0.448,0.208 10 false SST

*a	Installation Surface

Clean the surface of SST (09727-58130) to which the front shock absorber assembly LH is installed and remove any foreign matter and oil.

NOTICE:: Thoroughly clean the installation surface to prevent damage to the shock rod due to contact of foreign matter.

vii.

Using a long ball hexagon 5, install SST (09727-58100) and SST (09727-58130) to the shock rod.[#5]

NOTICE:: Before installing, check the position of the cutout on end of the shock rod.

HINT:: Install SST (09727-58100) and SST (09727-58130) to the base of the shock rod and check that SST (09727-58100) and SST (09727-58130) are securing the shock rod.

viii.

After securing the SST (09727-58010) bolt, rotate the nut counterclockwise.

ix.

Check that the shock rod and SST (09727-58030) have become free before releasing the fixing nut and removing SST (09727-58010) from the shock rod.

NOTICE:: Take due care when removing SST (09727-58010) to ensure the shock rod is not damaged.

Remove SST (09727-58030) from the end of the shock rod.

xi.

Using a piece of cloth, etc., clean the end of the shock rod threads and remove any foreign matter and oil.

Hide Display 48158B 2.INSTALL FRONT LOWER COIL SPRING INSULATOR

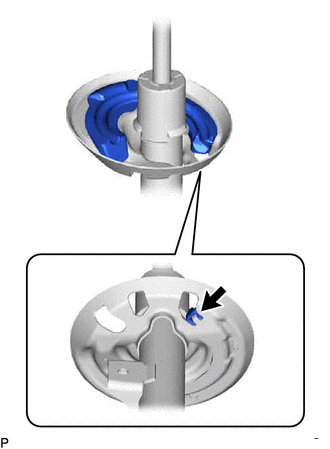

3.271,4.469 3.427,4.667 0.156,0.198 10 false -

Positioning Pin

Install the front lower coil spring insulator to the front shock absorber assembly.

NOTICE:: When installing the front lower coil spring insulator, insert the positioning pin of the spring seat into the hole of the front lower coil spring insulator.

Hide Display 48331C 3.INSTALL FRONT SPRING BUMPER

Install the front spring bumper to the front shock absorber assembly.

NOTICE:: ·

Face the smaller diameter end of the front spring bumper downward.

·

Do not apply lubricants to the front spring bumper.

·

Do not apply lubricants to the front shock absorber assembly cap or rod.

·

Do not clean the front spring bumper with water or solvent.

Hide Display 48132 4.INSTALL FRONT COIL SPRING

2.427,1.281 2.427,0.979 2.427,0.979 2.688,0.979 false 2.729,0.906 3.188,1.104 0.458,0.198 10 false SST

Secure SST in a vise.

SST: 09727-30022 09727-00051 (09727-00010, 09727-00031)

Attach the hooks of each SST arm across the diameter of the coil spring.

CAUTION:: ·

Make sure that the hooks are securely attached to the coil spring.

·

If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

·

Make sure that the hooks of the upper and lower SST arms are attached to the coil spring so that the distance between the hooks is as large as possible.

·

If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

·

Make sure that the arms of SST are parallel and the number of coils between the arms is the same on each side.

·

If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

Install the stopper pins to the hooks of SST.

CAUTION:: ·

Make sure that the stopper pins are installed securely.

·

If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

Using SST, compress the coil spring.

SST: 09727-00110

CAUTION:: ·

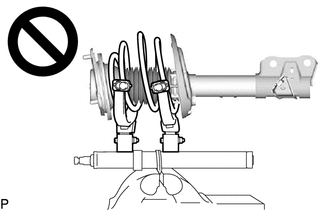

If the coil spring starts to bow out while using SST, stop immediately and reattach SST correctly.

·

If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

·

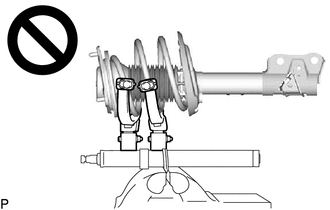

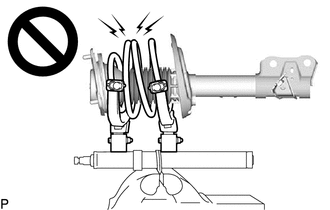

Do not compress the coil spring to the point where the coils touch each other.

·

If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

·

Do not use an impact wrench.

·

If an impact wrench is used, the threads of SST may be damaged, or sudden compression of the coil spring may cause a hook to disengage and the coil spring to fly out, resulting in injury.

·

1.01,3.167 1.594,3.167 true 0.708,3.104 1.208,3.354 0.5,0.25 10 false SST

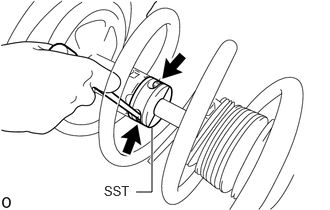

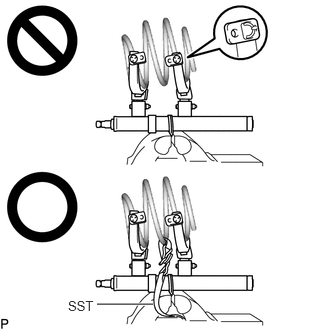

If a stopper pin touches the coil spring while using SST, remove the stopper pin and continue with the procedure.

·

If a stopper pin is removed, install a coil spring stopper belt as shown in the illustration.

·

If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

0.771,1.302 0.771,0.719 0.771,0.719 0.938,0.719 true 1,0.656 1.313,0.906 0.313,0.25 10 false *a

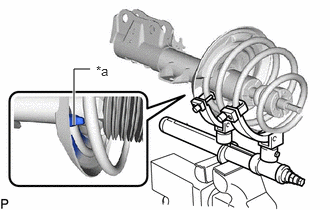

*a	Depression

Align the end of the front coil spring with the flange of the front lower coil spring insulator and install the front coil spring.

NOTICE:: Make sure to fit the end of the front coil spring that has the larger diameter into the depression of the front lower coil spring insulator.

Hide Display 48619A 5.INSTALL STRUT MOUNTING BEARING

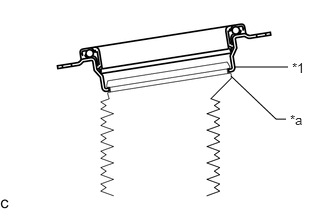

2.438,0.698 3,0.698 false 2.406,0.792 2.875,1.24 2.875,1.24 2.979,1.24 false 3.042,0.625 3.354,0.781 0.313,0.156 10 false *1 3.021,1.167 3.333,1.323 0.313,0.156 10 false *a

*1	Strut Mounting Bearing
*a	Top End of the Front No. 1 Shock Absorber Dust Cover

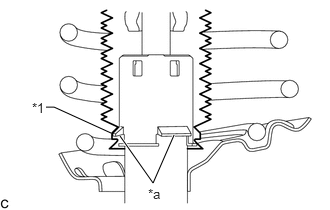

Install the strut mounting bearing to the front No. 1 shock absorber dust cover.

NOTICE:: Make sure that the top end of the front No. 1 shock absorber dust cover and strut mounting bearing are securely attached.

Hide Display 48157C 6.INSTALL FRONT UPPER COIL SPRING INSULATOR

Install the front upper coil spring insulator to the strut mounting bearing.

Hide Display 7.INSTALL STRUT MOUNTING BEARING WITH DUST COVER

Install the strut mounting bearing with dust cover to the front shock absorber assembly.

Hide Display 48603 8.INSTALL FRONT SUSPENSION SUPPORT SUB-ASSEMBLY

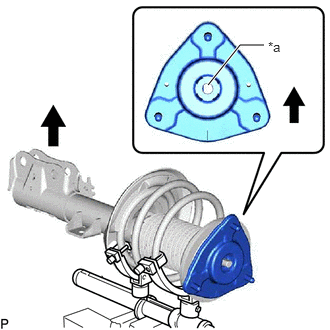

2.167,0.885 2.5,0.469 2.5,0.469 2.75,0.469 true 2.792,0.406 3.125,0.656 0.333,0.25 10 false *a

*a	Slot
	Outside of the Vehicle

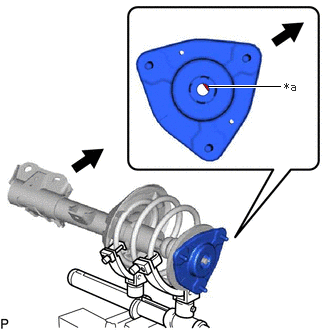

Install the front suspension support sub-assembly as shown in the illustration.

NOTICE:: Check that the slot on the piston rod and the slot on the front suspension support sub-assembly are aligned.

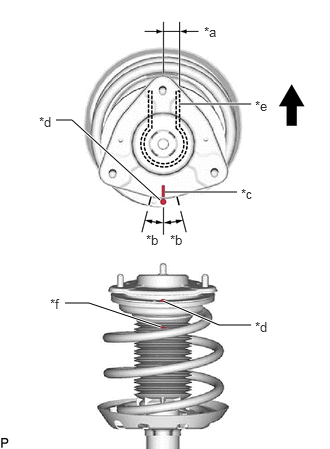

1.719,2 2.469,2 true 0.583,1.25 0.75,1.25 0.75,1.25 1.667,2.083 true 1.698,3.135 2.281,3.385 2.281,3.385 2.615,3.385 true 0.677,3.156 0.927,3.156 0.927,3.156 1.677,3.406 true 1.865,1.083 2.615,1.083 true 2.125,0.25 2.458,0.5 0.333,0.25 10 false *a 1.771,2.417 2.188,2.667 0.417,0.25 10 false *b 2.51,1.938 2.844,2.188 0.333,0.25 10 false *c 0.406,1.188 0.906,1.521 0.5,0.333 10 false *d 2.656,1.021 3.073,1.271 0.417,0.25 10 false *e 0.521,3.083 0.938,3.333 0.417,0.25 10 false *f 1.521,2.417 1.938,2.667 0.417,0.25 10 false *b 2.656,3.323 3.156,3.656 0.5,0.333 10 false *d

*a	0° +/- 3°
*b	15°
*c	Guide Line of Front Suspension Support Sub-assembly
*d	Alignment Mark of Strut Mounting Bearing
*e	Front Shock Absorber Lower Bracket
*f	Arrow of Shock Absorber Dust Cover
	Outside of the Vehicle

Align the alignment mark of the front suspension support sub-assembly with the front shock absorber lower bracket as shown in the illustration.

NOTICE:: Make sure to install the front suspension support sub-assembly so that the alignment mark of the front suspension support sub-assembly is aligned within +/- 3° of the center of the front shock absorber lower bracket.

Align the alignment mark of the strut mounting bearing with the guide line of the front suspension support sub-assembly as shown in the illustration.

NOTICE:: Make sure to install the strut mounting bearing so that the alignment mark of the strut mounting bearing is aligned within +/- 15° of the guide line of the front suspension support sub-assembly.

Align the arrow of the shock absorber dust cover with the alignment mark of the strut mounting bearing as shown in the illustration.

Hide Display 48680A 9.TEMPORARILY TIGHTEN FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT

Temporarily tighten a new front support to front shock absorber nut.

Remove SST from the front coil spring.

NOTICE:: Do not use an impact wrench. It will damage SST.

1.583,1.333 1.583,2 1.583,2 1.417,2 true 1.083,1.906 1.448,2.094 0.365,0.188 10 false SST

Fold back the No. 1 front shock absorber dust cover LH and then use a long ball hexagon 5 to remove SST (09727-58100) and SST (09727-58130) from the front shock absorber assembly LH.

NOTICE:: ·

Thoroughly remove SST (09727-58100) and SST (09727-58130).

·

Check that the No. 1 front shock absorber dust cover LH is not excessively deformed or crushed.

1.969,0.688 1.969,0.354 1.969,0.354 2.969,0.354 true 1.865,1.177 2.76,0.781 2.76,0.781 3,0.781 true 3.031,0.271 3.344,0.427 0.313,0.156 10 false *a 3.031,0.698 3.323,0.896 0.292,0.198 10 true *b

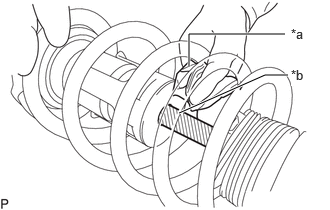

*a	Cloth, etc.
*b	Shock Rod

Using a piece of cloth, etc., clean the shock rod of the front shock absorber assembly LH and remove any foreign matter and oil.

NOTICE:: Thoroughly clean the shock rod to prevent damage to the front shock absorber assembly LH due to contact of foreign matter.

Hide Display 48559B 10.CONNECT FRONT NO. 1 SHOCK ABSORBER DUST COVER

1.813,1.406 1.594,1.906 1.594,1.906 1.25,1.417 true 0.479,1.115 0.563,1.115 0.563,1.115 1.156,1.385 false 0.333,1.042 0.646,1.198 0.313,0.156 10 false *1 1.542,1.938 1.854,2.094 0.313,0.156 10 false *a

*1	Front No. 1 Shock Absorber Dust Cover
*a	Claw

Connect the end of the front No. 1 shock absorber dust cover with the claws of the front shock absorber assembly.

NOTICE:: ·

Make sure that the end of the front No. 1 shock absorber dust cover is securely attached to the claws of the front shock absorber assembly.

·

Make sure there is no excessive damage to the bellows of the front No. 1 shock absorber dust cover.

·

Do not allow oil, grease, etc., to contact the front No. 1 shock absorber dust cover.

·

If there is oil or grease on the insulator, wipe clean with a cloth. Do not use an alcohol based cleaner.

Hide Display 11.INSTALL FRONT SHOCK ABSORBER WITH COIL SPRING

Install the front shock absorber with coil spring (upper side) with the 3 nuts.

Torque:: 50 N*m (510 kgf*cm, 37 ft.*lbf)

Install the front shock absorber with coil spring (lower side) to the steering knuckle with the 2 bolts and 2 nuts.

Torque:: 290 N*m (2957 kgf*cm, 214 ft.*lbf)

NOTICE:: ·

When installing the nuts, keep the bolts from rotating.

·

Do not apply lubricants to the steering knuckle and shock absorber contact surfaces.

HINT:: The bolts can be installed in either direction, however, make sure that they are both installed in the same direction.

Hide Display 48609E 12.FULLY TIGHTEN FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT

Fully tighten the front support to front shock absorber nut.

Torque:: 47 N*m (479 kgf*cm, 35 ft.*lbf)

NOTICE:: Perform this step only when the front shock absorber with coil spring has been disassembled.

Hide Display 89543 13.INSTALL FRONT SPEED SENSOR

3.271,1.979 3.427,2.177 0.156,0.198 10 false -

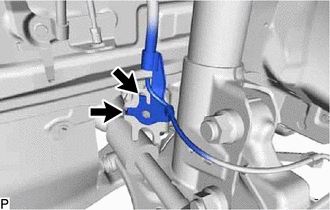

Hook

Engage the 2 hooks to install the front speed sensor clamp bracket.

NOTICE:: Do not twist the front speed sensor when installing it.

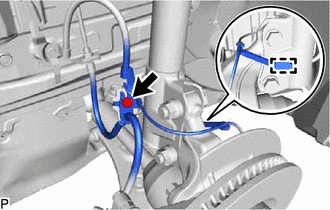

Install the front speed sensor and front flexible hose to the front shock absorber assembly with the bolt.

Torque:: 29 N*m (296 kgf*cm, 21 ft.*lbf)

NOTICE:: Do not twist the front flexible hose when installing it.

Engage the clamp.

NOTICE:: Do not twist the front speed sensor when installing it.

Hide Display 48810 14.INSTALL FRONT STABILIZER LINK ASSEMBLY

Install the front stabilizer link assembly to the front shock absorber assembly with the nut.

Torque:: 74 N*m (755 kgf*cm, 55 ft.*lbf)

HINT:: If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

Hide Display 55704B 15.INSTALL COWL VENTILATOR PANEL SUB-ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING UNIT (for A25B-FXS)>INSTALLATION202304,202405,_58,_083104,_0403064,RM1000000029RHV_03_0003,202405,202409,_58,_083104,_0403064,RM100000002L0K9_03_0003,202409,999999,_58,_083104,_0403064,RM100000002NFZC_03_0003,

Hide Display 55752 16.INSTALL COWL VENTILATOR SPLASH SHIELD

Click hereVehicle Exterior>WIPER / WASHER>FRONT WIPER MOTOR>INSTALLATION201910,999999,_59,_083109,_0402375,RM100000001JI3U_01_0005,

Hide Display 17.INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>FRONT WIPER MOTOR>INSTALLATION201910,999999,_59,_083109,_0402375,RM100000001JI3U,

Hide Display 18.INSTALL FRONT WHEEL

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>INSTALLATION201910,999999,_V1,_083136,_0403660,RM100000001JU8B,

Hide Display 19.INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

Click hereSuspension>ALIGNMENT / HANDLING DIAGNOSIS>FRONT WHEEL ALIGNMENT>ADJUSTMENT202304,999999,_53,_083072,_0403333,RM100000002AKI8,

Hide Display 20.PERFORM INITIALIZATION

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE202304,202405,_V1,_083041,_0402305,RM1000000029DM3,202405,202409,_V1,_083041,_0402305,RM100000002ISNH,202409,999999,_V1,_083041,_0402305,RM100000002NY04,
