RM36D0EC _56 Audio / Visual / Telematics _083087 TELEMATICS _0402655 TELEMATICS SYSTEM C

TELEMATICS  TELEMATICS SYSTEM  B15C511  Emergency Call Switch Circuit Short to Ground  B15C513  Emergency Call Switch Circuit Open


DESCRIPTION

If the telematics transceiver detects an error in the communication between the telematics transceiver and the map light sub-assembly (emergency call switch) as a result of the telematics transceiver self check, this DTC will be stored.

DTC No. Detection Item DTC Detection Condition Trouble Area
B15C511 Emergency Call Switch Circuit Short to Ground Emergency call switch impedance (Ω) is lower than the malfunction threshold for 10 seconds or more when the ignition switch is ON
·

Map light sub-assembly

·

Harness or connector

·

Telematics transceiver


B15C513 Emergency Call Switch Circuit Open Emergency call switch impedance (Ω) is higher than the malfunction threshold for 10 seconds or more when the ignition switch is ON
·

Map light sub-assembly

·

Harness or connector

·

Telematics transceiver



WIRING DIAGRAM

E354792E44
5.125,2.073 5.521,2.26 0.396,0.188 10 false G131 0.802,2.052 2.75,2.271 1.948,0.219 10 false P24 5.135,2.281 6.615,2.469 1.479,0.188 10 false Telematics Transceiver 0.813,2.229 4.104,2.469 3.292,0.24 10 false Map Light Sub-assembly (Emergency Call Switch) 2.479,0.573 2.875,0.76 0.396,0.188 10 false SIG1 2.406,1.135 2.833,1.323 0.427,0.188 10 false GND3 5.188,0.677 5.583,0.865 0.396,0.188 10 false SIG1 5.188,1.094 5.542,1.281 0.354,0.188 10 false SIG- 4.885,0.49 5.135,0.677 0.25,0.188 10 false 21 4.938,1.104 5.188,1.292 0.25,0.188 10 false 3 2.927,0.573 3.823,0.76 0.896,0.188 10 false 22 2.948,1.135 4.177,1.385 1.229,0.25 10 false 14

CAUTION / NOTICE / HINT

NOTICE:
·

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Telematics System.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM>PRECAUTION

·

When replacing the telematics transceiver, make sure to replace it with a new one.

·

Before replacing the telematics transceiver, refer to Service Bulletin.



PROCEDURE

1.CHECK DTC OUTPUT
a.

Clear the DTCs.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM>DTC CHECK / CLEAR

Body Electrical > Telematics > Clear DTCs
50002 459

b.

Turn the ignition switch to ON and wait for 10 seconds or more.


c.

Recheck for DTCs and check if the same DTC is output again.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM>DTC CHECK / CLEAR

Body Electrical > Telematics > Trouble Codes
50001 459
OK:

No DTCs are output.



Result:
Proceed to
OK
NG



OK

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


NG

2.INSPECT MAP LIGHT SUB-ASSEMBLY
2.INSPECT MAP LIGHT SUB-ASSEMBLY
a.

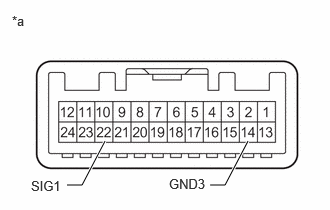

E513202C01
1.094,1.469 0.854,1.927 0.854,1.927 0.698,1.927 true 2.583,1.469 2.344,1.927 2.344,1.927 2.188,1.927 true 0.125,0.135 0.438,0.333 0.313,0.198 10 false *a 0.323,1.854 1.021,2.167 0.698,0.313 10 false SIG1 1.76,1.833 2.292,2.094 0.531,0.26 10 false GND3
*a Component without harness connected
(Map Light Sub-assembly)


Remove the map light sub-assembly.

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
22 (SIG1) - 14 (GND3) Emergency call switch not operated 410 to 414 Ω
22 (SIG1) - 14 (GND3) Emergency call switch operated 81 to 83 Ω



Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - MAP LIGHT SUB-ASSEMBLY [EMERGENCY CALL SWITCH])

NG

REPLACE MAP LIGHT SUB-ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL


3.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - MAP LIGHT SUB-ASSEMBLY [EMERGENCY CALL SWITCH])
a.

Disconnect the G131 telematics transceiver connector.


b.

Disconnect the P24 map light sub-assembly (emergency call switch) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G131-21 (SIG1) - P24-22 (SIG1) Always Below 1 Ω
G131-21 (SIG1) or P24-22 (SIG1) - Body ground Always 10 kΩ or higher
G131-3 (SIG-) - P24-14 (GND3) Always Below 1 Ω
G131-3 (SIG-) or P24-14 (GND3) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

4.REPLACE TELEMATICS TRANSCEIVER

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.REPLACE TELEMATICS TRANSCEIVER
a.

Replace the telematics transceiver with a new one.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER>REMOVAL


Result:
Proceed to
NEXT



NEXT

PERFORM REGISTRATION

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM>REGISTRATION
