TELEMATICS  TELEMATICS SYSTEM  B157111  Indicator (Green) Circuit Short to Ground  B157113  Indicator (Green) Circuit Open


DESCRIPTION

This DTC is stored when the telematics transceiver detects an open or short in the emergency call switch indicator (green) circuit of the emergency call switch.

The emergency call switch indicator (green) illuminates for 5 seconds after the ignition switch is turned to ON.

If the telematics system is not active, the emergency call switch indicator (green) will turn off.

If the telematics system is active, the emergency call switch indicator (green) will blink while communicating with the call center.

DTC No. Detection Item DTC Detection Condition Trouble Area
B157111 Indicator (Green) Circuit Short to Ground Emergency call switch indicator (green) impedance (Ω) is lower than the malfunction threshold for 10 seconds or more when the ignition switch is ON
·

Telematics transceiver

·

Map light sub-assembly (emergency call switch)

·

Harness or connector


B157113 Indicator (Green) Circuit Open Emergency call switch indicator (green) impedance (Ω) is higher than the malfunction threshold for 10 seconds or more when the ignition switch is ON
·

Telematics transceiver

·

Map light sub-assembly (emergency call switch)

·

Harness or connector

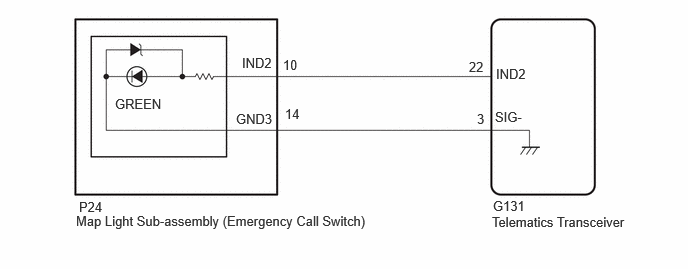

WIRING DIAGRAM

E503078E08
1.198,1 1.792,1.198 0.594,0.198 10 false GREEN 2.948,0.594 3.708,0.813 0.76,0.219 10 false 10 2.969,1.104 3.948,1.333 0.979,0.229 10 false 14 2.521,0.573 3.135,0.771 0.615,0.198 10 false IND2 2.458,1.156 3.073,1.354 0.615,0.198 10 false GND3 5.135,2.063 5.594,2.26 0.458,0.198 10 false G131 0.792,2.219 4.271,2.469 3.479,0.25 10 false Map Light Sub-assembly (Emergency Call Switch) 4.885,0.615 5.198,0.813 0.313,0.198 10 false 22 4.969,1.156 5.281,1.354 0.313,0.198 10 false 3 5.167,0.688 5.781,0.885 0.615,0.198 10 false IND2 5.156,1.135 5.771,1.333 0.615,0.198 10 false SIG- 0.823,2.073 2.458,2.292 1.635,0.219 10 false P24 5.125,2.229 6.583,2.438 1.458,0.208 10 false Telematics Transceiver

CAUTION / NOTICE / HINT

NOTICE:
·

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Telematics System.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM>PRECAUTION

·

When replacing the telematics transceiver, make sure to replace it with a new one.

·

Before replacing the telematics transceiver, refer to Service Bulletin.



PROCEDURE

1.CHECK DTC
a.

Turn the ignition switch to ON and wait for 10 seconds or more.


b.

Clear the DTCs.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM>DTC CHECK / CLEAR

Body Electrical > Telematics > Clear DTCs
50002 459

c.

Check for DTCs and check that no DTCs are output.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM>DTC CHECK / CLEAR

Body Electrical > Telematics > Trouble Codes
50001 459
OK:

No DTCs are output.



Result:
Proceed to
OK
NG



OK

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


NG

2.INSPECT MAP LIGHT SUB-ASSEMBLY (EMERGENCY CALL SWITCH) (GREEN INDICATOR)
2.INSPECT MAP LIGHT SUB-ASSEMBLY (EMERGENCY CALL SWITCH) (GREEN INDICATOR)
a.

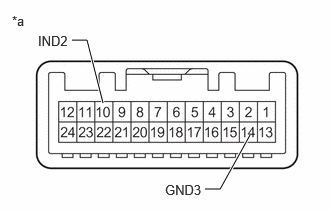

E513202C04
1.073,1.073 0.906,0.417 0.906,0.417 0.75,0.417 true 2.604,1.406 2.292,1.969 2.292,1.969 2.135,1.969 true 0.125,0.135 0.438,0.333 0.313,0.198 10 false *a 0.396,0.344 1.094,0.656 0.698,0.313 10 false IND2 1.719,1.896 2.438,2.177 0.719,0.281 10 false GND3
*a Component without harness connected
(Map Light Sub-assembly [Emergency Call Switch])


Remove the map light sub-assembly (emergency call switch).

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL


b.

Connect 2 dry-cell batteries (1.5 V each) in series.


c.

Connect a positive (+) lead from batteries to terminal 10 (IND2) and a negative (-) lead to terminal 14 (GND3) of the map light sub-assembly (emergency call switch) connector.


d.

Check if the emergency call switch indicator (green) comes on.

OK:

Emergency call switch indicator (green) illuminates.



Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - MAP LIGHT SUB-ASSEMBLY [EMERGENCY CALL SWITCH])

NG

REPLACE MAP LIGHT SUB-ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL


3.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - MAP LIGHT SUB-ASSEMBLY [EMERGENCY CALL SWITCH])
a.

Disconnect the G131 telematics transceiver connector.


b.

Disconnect the P24 map light sub-assembly (emergency call switch) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G131-22 (IND2) - P24-10 (IND2) Always Below 1 Ω
G131-22 (IND2) or P24-10 (IND2) - Body ground Always 10 kΩ or higher
G131-3 (SIG-) - P24-14 (GND3) Always Below 1 Ω
G131-3 (SIG-) or P24-14 (GND3) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

4.REPLACE TELEMATICS TRANSCEIVER

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.REPLACE TELEMATICS TRANSCEIVER
a.

Replace the telematics transceiver with a new one.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER>REMOVAL


Result:
Proceed to
NEXT



NEXT

PERFORM REGISTRATION

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM>REGISTRATION
