RM36D0EC _58 Vehicle Interior _083092 DOOR LOCK _0403682 BACK DOOR LOCK A

DOOR LOCK BACK DOOR LOCK INSTALLATION

PROCEDURE

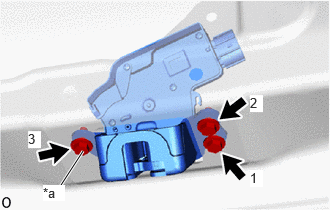

Hide Display 69350P 1.INSTALL BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY (w/o Power Back Door)

NOTICE:: When installing a new back door lock with courtesy light switch assembly, if there are any strings attached to it, cut the strings off.

Apply MP grease to the sliding parts of the back door lock with courtesy light switch assembly.

0.615,1.958 0.865,1.573 true 0.448,1.927 0.677,2.094 0.229,0.167 10 true *a 2.604,1.771 2.74,1.948 0.135,0.177 10 true 1 2.604,0.99 2.74,1.167 0.135,0.177 10 true 2 0.292,1.365 0.427,1.542 0.135,0.177 10 true 3

Bolt A

Temporarily install the bolt A.

Install the back door lock with courtesy light switch assembly with the 3 bolts in the order shown in the illustration.

Torque:: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

Connect the connector.

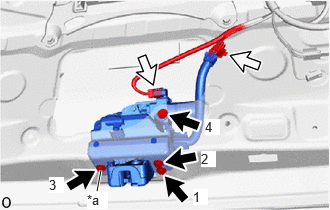

Hide Display 69350P 2.INSTALL BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY (w/ Power Back Door)

NOTICE:: When installing a new back door lock with courtesy light switch assembly, if there are any strings attached to it, cut the strings off.

Apply MP grease to the sliding parts of the back door lock with courtesy light switch assembly.

1.01,1.99 1.052,1.771 true 0.906,2 1.125,2.177 0.219,0.177 10 true *a 2.01,1.969 2.167,2.135 0.156,0.167 10 true 1 2.094,1.573 2.25,1.74 0.156,0.167 10 true 2 0.51,1.844 0.667,2.01 0.156,0.167 10 true 3 2.135,1.24 2.292,1.406 0.156,0.167 10 true 4
