RM36D0EC _56 Audio / Visual / Telematics _083087 TELEMATICS _0400690 TELEPHONE MICROPHONE ASSEMBLY A

TELEMATICS  TELEPHONE MICROPHONE ASSEMBLY  INSTALLATION


PROCEDURE

Hide 86730A 1.INSTALL TELEPHONE MICROPHONE ASSEMBLY

HINT:

The illustrations are representative examples, and details may differ.


a.

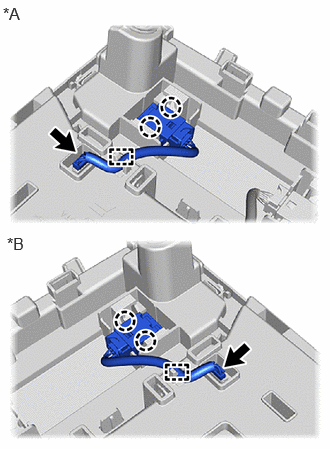

E503639C02
0.031,0.042 0.344,0.302 0.313,0.26 12 false *A 0.073,2.438 0.365,2.719 0.292,0.281 12 false *B
*A for LH Side
*B for RH Side


Attach the claw and clamp to install the telephone microphone assembliy.


b.

Connect the connector.
