LIGHTING (INT)  PERSONAL LIGHT  INSTALLATION


PROCEDURE

Hide 1.INSTALL MAP LIGHT ASSEMBLY

a.

Connect the connector.


b.

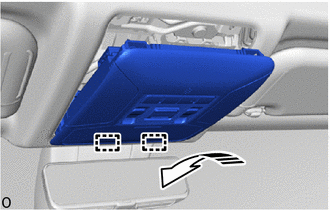

E400112C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide to temporarily install the map light assembly as shown in the illustration.


c.

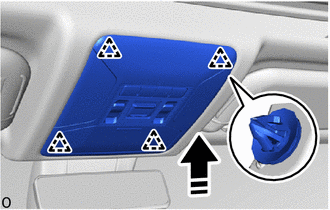

E400105C01
0,0 0,0 false
V113147

Install in this Direction


Attach the clip to install the map light assembly as shown in the illustration.
