RM36D0EC _59 Vehicle Exterior _083093 DOOR / HATCH _0403691 BACK DOOR A

DOOR / HATCH BACK DOOR DISASSEMBLY

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the multiplex network door ECU removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
· Multiplex network door ECU · Power back door unit assembly set	Reset back door close position	Power back door system	(202304,999999,_59,_083093,_0584672,RM1000000029PGT,)
Rear television camera assembly (Including removal and installation)	Rear television camera view adjustment	Panoramic view monitor system	(202304,999999,_56,_083082,_0586733,RM1000000029R9F,)

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
· Multiplex network door ECU · Power back door unit assembly set	Reset back door close position	Power back door system	(202304,999999,_59,_083093,_0584672,RM1000000029PGT,)
Rear television camera assembly (Including removal and installation)	Rear television camera view adjustment	Panoramic view monitor system	(202304,999999,_56,_083082,_0586733,RM1000000029R9F,)

PROCEDURE

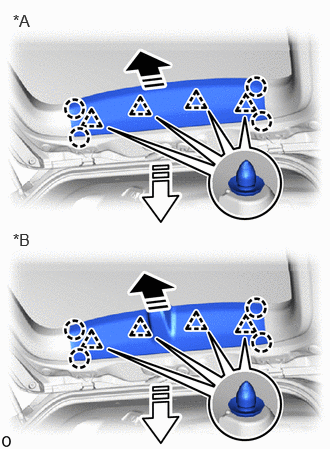

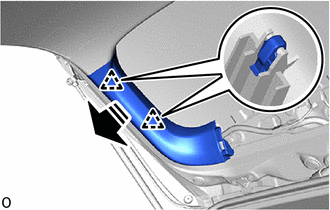

Hide Display 67939B 1.REMOVE BACK DOOR CENTER GARNISH

0.135,0.115 0.51,0.354 0.375,0.24 12 false *A 0.135,2.396 0.51,2.635 0.375,0.24 12 false *B

*A	w/o Digital Inner Mirror
*B	w/ Digital Inner Mirror
	Remove in this Direction (1)
	Remove in this Direction (2)

Detach the claw and clip to remove the back door center garnish as shown in the illustration.

Hide Display 67938A 2.REMOVE BACK DOOR SIDE GARNISH LH

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

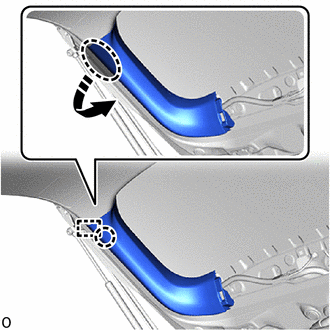

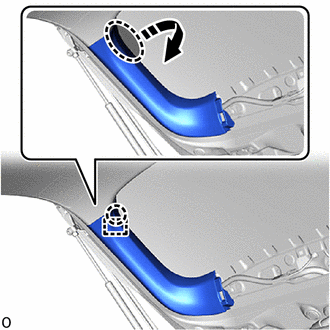

Place your hand at the position shown in the illustration, to detach the claw and guide.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration, to detach the claw and guide.

0,0 0,0 false

Remove in this Direction

Detach the clip and remove the back door side garnish LH as shown in the illustration.

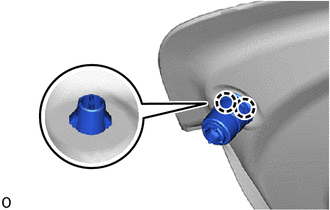

Remove the 2 clips from the back door side garnish LH.

NOTICE:: If the back door side garnish LH has been removed, replace the clip with a new one.

Hide Display 67937B 3.REMOVE BACK DOOR SIDE GARNISH RH

HINT:: Use the same procedure described for the LH side.

Hide Display 67199 4.REMOVE BACK DOOR HANDLE COVER

0,0 0,0 false

Remove in this Direction

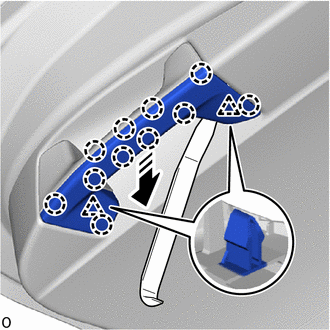

Using a moulding remover A, detach the claw and clip to remove the back door grip base as shown in the illustration.

HINT:: Use the same procedure for the RH and LH sides.

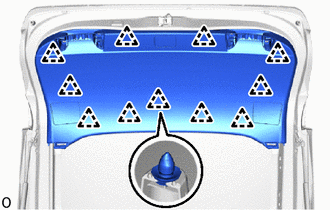

Hide Display 67750 5.REMOVE BACK DOOR TRIM BOARD ASSEMBLY

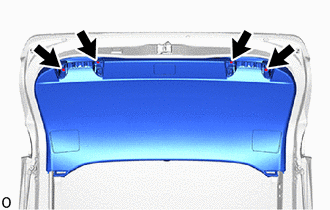

Remove the 4 bolts.

Detach the clip and remove the back door trim board assembly.

Hide Display 74654A 6.REMOVE BACK DOOR ASSIST GRIP LH

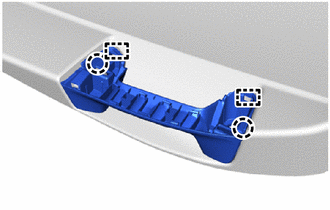

Detach the claw and guide to remove the back door assist grip LH.

Hide Display 74653 7.REMOVE BACK DOOR ASSIST GRIP RH

HINT:: Use the same procedure described for the LH side.

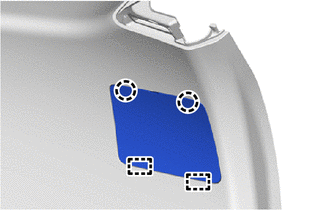

Hide Display 67848 8.REMOVE BACK DOOR SERVICE HOLE COVER LH

Detach the claw and guide to remove the back door service hole cover LH.

Hide Display 67847 9.REMOVE BACK DOOR SERVICE HOLE COVER RH

HINT:: Use the same procedure described for the LH side.

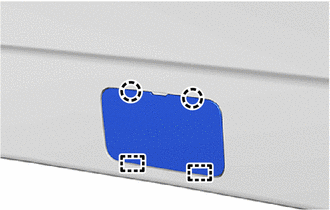

Hide Display 67766 10.REMOVE BACK DOOR NO. 2 SERVICE HOLE COVER

Detach the claw and guide to remove the back door No. 2 service hole cover.

Hide Display 84966A 11.REMOVE NO. 1 POWER BACK DOOR CONTROL SWITCH (w/ Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>POWER BACK DOOR CLOSER SWITCH>REMOVAL201910,999999,_59,_083093,_0403695,RM100000001JUGZ_01_0007,

Hide Display 84280D 12.REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH (w/ Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>POWER BACK DOOR TOUCH SENSOR>REMOVAL201910,999999,_59,_083093,_0403696,RM100000001JUH3_01_0007,

Hide Display 84270G 13.REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH (w/ Power Back Door)

HINT:: Use the same procedure described for the LH side.

Hide Display 76085 14.REMOVE REAR SPOILER SUB-ASSEMBLY

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR SPOILER>REMOVAL201910,999999,_59,_083111,_0400753,RM100000001J9LI_01_0070,

Hide Display 867C0 15.REMOVE INNER MIRROR CAMERA ASSEMBLY (w/ Digital inner mirror)

Click hereVehicle Interior>MIRROR (INT)>INNER MIRROR MONITOR CAMERA>REMOVAL201910,999999,_58,_083098,_0400606,RM100000001J8OG_01_0002,

Hide Display 85345R 16.REMOVE REAR WASHER NOZZLE

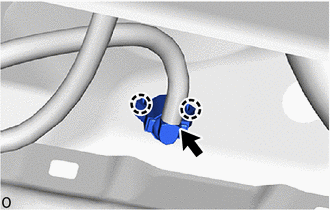

Disconnect the rear washer hose from the rear washer nozzle.

Detach the claw and remove the rear washer nozzle.

Hide Display 85292A 17.REMOVE REAR WIPER ARM HEAD CAP

Click hereVehicle Exterior>WIPER / WASHER>REAR WIPER MOTOR>REMOVAL201910,999999,_59,_083109,_0402376,RM100000001JI3X_01_0007,

Hide Display 18.REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>REAR WIPER MOTOR>REMOVAL201910,999999,_59,_083109,_0402376,RM100000001JI3X_01_0008,

Hide Display 85110R 19.REMOVE REAR WIPER MOTOR ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>REAR WIPER MOTOR>REMOVAL201910,999999,_59,_083109,_0402376,RM100000001JI3X_01_0009,

Hide Display 85143R 20.REMOVE REAR WIPER MOTOR GROMMET

Click hereVehicle Exterior>WIPER / WASHER>REAR WIPER MOTOR>REMOVAL201910,999999,_59,_083109,_0402376,RM100000001JI3X_01_0001,

Hide Display 69350P 21.REMOVE BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY (w/ Power Back Door)

Click hereVehicle Interior>DOOR LOCK>BACK DOOR LOCK>REMOVAL201910,999999,_58,_083092,_0403682,RM100000001JUF3_01_0007,

Hide Display 69350P 22.REMOVE BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY (w/o Power Back Door)

Click hereVehicle Interior>DOOR LOCK>BACK DOOR LOCK>REMOVAL201910,999999,_58,_083092,_0403682,RM100000001JUF3_01_0008,

Hide Display 89222A 23.REMOVE MULTIPLEX NETWORK DOOR ECU (w/ Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR CLOSER ECU>REMOVAL202304,999999,_59,_083093,_0403698,RM1000000029P8M_02_0014,

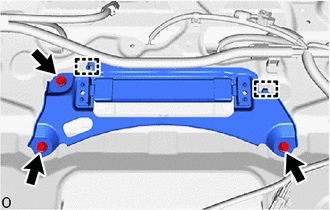

Hide Display 67372A 24.REMOVE BACK DOOR WEIGHT

Remove the 3 bolts.

Detach the guide and remove the back door weight.

Hide Display 76801 25.REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

for Type A

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>BACK DOOR OUTSIDE GARNISH (for Upper Side)>REMOVAL202004,999999,_59,_083111,_0400768,RM100000001MENJ_01_0094,

for Type B

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>BACK DOOR OUTSIDE GARNISH (for Upper Side)>REMOVAL202004,999999,_59,_083111,_0400768,RM100000001MENJ_01_0125,

Hide Display 81270 26.REMOVE LICENSE PLATE LIGHT ASSEMBLY

HINT:: Use the same procedure for the RH and LH sides.; Click hereVehicle Exterior>LIGHTING (EXT)>LICENSE PLATE LIGHT ASSEMBLY>REMOVAL202004,999999,_59,_083096,_0402636,RM100000001MODZ_01_0080,

Hide Display 84840G 27.REMOVE BACK DOOR OPENER SWITCH ASSEMBLY

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR OPENER SWITCH>REMOVAL201910,999999,_59,_083093,_0403693,RM100000001JUGR_01_0002,

Hide Display 86790D 28.REMOVE REAR TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>TELEVISION CAMERA (for Rear)>REMOVAL202304,999999,_56,_083082,_0403108,RM1000000029RT9_01_0011,

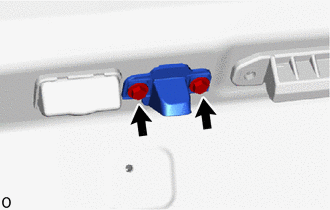

Hide Display 76825B 29.REMOVE BACK DOOR OUTSIDE GARNISH PROTECTOR (w/o Panoramic View Monitor System)

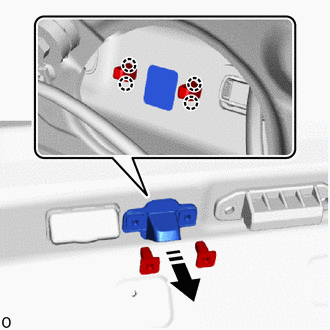

Remove the 2 screws.

0,0 0,0 false

Remove in this Direction

Detach the claw and remove the 2 screw grommets.

Remove the back door outside garnish protector.

Hide Display 30.REMOVE REAR LIGHT ASSEMBLY LH

Click hereVehicle Exterior>LIGHTING (EXT)>REAR LIGHT ASSEMBLY>REMOVAL202004,999999,_59,_083096,_0402633,RM100000001MODR_01_0001,

Hide Display 31.REMOVE REAR LIGHT ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

Hide Display 76802E 32.REMOVE BACK DOOR LOWER OUTSIDE GARNISH SUB-ASSEMBLY

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>BACK DOOR OUTSIDE GARNISH (for Lower Side)>REMOVAL201910,999999,_59,_083111,_0400769,RM100000001J9NA_01_0094,

Hide Display 68960C 33.REMOVE BACK DOOR STAY SET LH (w/o Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR SUPPORT>REMOVAL201910,999999,_59,_083093,_0403700,RM100000001JUHG_01_0001,

Hide Display 68950C 34.REMOVE BACK DOOR STAY ASSEMBLY RH (w/o Power Back Door)

HINT:: Use the same procedure described for the back door stay set LH.

Hide Display 68946 35.REMOVE BACK DOOR UPPER DAMPER STAY BRACKET LH (w/o Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR SUPPORT>REMOVAL201910,999999,_59,_083093,_0403700,RM100000001JUHG_01_0002,

Hide Display 68945 36.REMOVE BACK DOOR UPPER DAMPER STAY BRACKET RH (w/o Power Back Door)

HINT:: Use the same procedure described for the LH side.

Hide Display 68948 37.REMOVE BACK DOOR LOWER DAMPER STAY BRACKET LH (w/o Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR SUPPORT>REMOVAL201910,999999,_59,_083093,_0403700,RM100000001JUHG_01_0003,

Hide Display 68947 38.REMOVE BACK DOOR LOWER DAMPER STAY BRACKET RH (w/o Power Back Door)

HINT:: Use the same procedure described for the LH side.

Hide Display 68984 39.REMOVE BACK DOOR STAY STOPPER (w/o Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR SUPPORT>REMOVAL201910,999999,_59,_083093,_0403700,RM100000001JUHG_01_0004,

Hide Display 40.REMOVE POWER BACK DOOR UNIT ASSEMBLY LH (w/ Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>POWER BACK DOOR DRIVE UNIT>REMOVAL202304,999999,_59,_083093,_0403697,RM100000002AXZ7_02_0007,

Hide Display 41.REMOVE POWER BACK DOOR UNIT ASSEMBLY RH (w/ Power Back Door)

HINT:: Use the same procedure described for the LH side.

Hide Display 68946 42.REMOVE BACK DOOR UPPER DAMPER STAY BRACKET LH (w/ Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>POWER BACK DOOR DRIVE UNIT>REMOVAL202304,999999,_59,_083093,_0403697,RM100000002AXZ7_02_0008,

Hide Display 68945 43.REMOVE BACK DOOR UPPER DAMPER STAY BRACKET RH (w/ Power Back Door)

HINT:: Use the same procedure described for the LH side.

Hide Display 68948 44.REMOVE BACK DOOR LOWER DAMPER STAY BRACKET LH (w/ Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>POWER BACK DOOR DRIVE UNIT>REMOVAL202304,999999,_59,_083093,_0403697,RM100000002AXZ7_02_0009,

Hide Display 68947 45.REMOVE BACK DOOR LOWER DAMPER STAY BRACKET RH (w/ Power Back Door)

HINT:: Use the same procedure described for the LH side.

Hide Display 68984 46.REMOVE BACK DOOR STAY STOPPER (w/ Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>POWER BACK DOOR DRIVE UNIT>REMOVAL202304,999999,_59,_083093,_0403697,RM100000002AXZ7_02_0001,

Hide Display 67837N 47.REMOVE BACK DOOR DUST PROOF SEAL

Detach the claw and remove the back door dust proof seal.

Hide Display 67837N 48.REMOVE BACK DOOR DUST PROOF SEAL

Detach the claw and guide to remove the back door dust proof seal.

HINT:: Use the same procedure for the RH and LH sides.

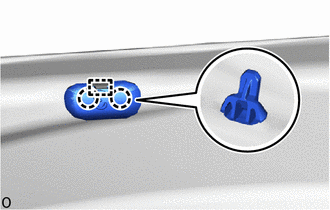

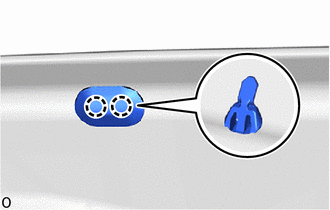

Hide Display 67005B 49.REMOVE BACK DOOR PANEL CUSHION

Detach the claw and remove the back door panel cushion.

HINT:: Use the same procedure for the RH and LH sides.
