SEAT  FRONT SEAT ASSEMBLY(for SFTM Made Power Seat)  REASSEMBLY

Attach the claw.

1.792,0.469 2.573,0.167 true 0.542,2.917 0.656,2.156 true 1.76,3.01 2.635,2.698 true 2.604,0.031 2.917,0.188 0.313,0.156 10 false *a 0.448,2.948 0.76,3.104 0.313,0.156 10 false *b 1.552,2.948 1.74,3.146 0.188,0.198 10 false *b

*a	Hook
*b	Guide

Attach the guide.

0,0 0,0 false

Install in this Direction

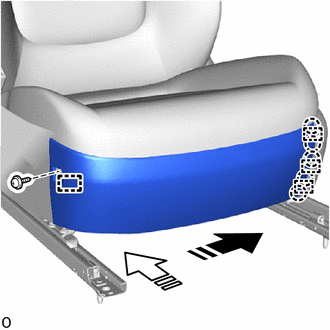

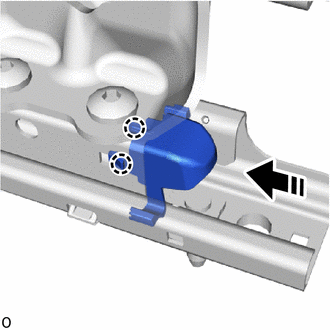

Attach the claw and install the seat track cover as shown in the illustration.

HINT:

Use the same procedure for all seat track covers.

Install the front seat cushion panel sub-assembly LH with the 4 bolts.

Torque:

4.5 N*m (46 kgf*cm, 40 in.*lbf)

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

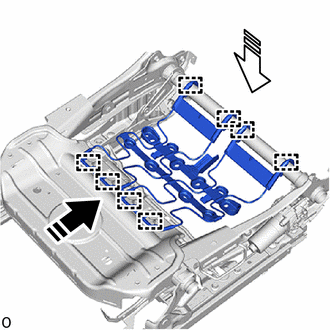

Attach the hook on the front side of the front seat cushion spring sub-assembly LH in the installation direction (1) shown in the illustration.

1.792,4.083 1.854,3.375 1.854,3.375 2.042,3.375 false 2.063,3.26 2.375,3.417 0.313,0.156 10 false *a 1.635,2.021 1.854,2.24 0.219,0.219 10 true (1) 0.958,1.927 1.177,2.146 0.219,0.219 10 true (2) 2.219,1.938 2.438,2.156 0.219,0.219 10 true (3) 1.635,0.729 1.854,0.948 0.219,0.219 10 true (4) 1.083,0.76 1.302,0.979 0.219,0.219 10 true (5) 0.458,0.792 0.677,1.01 0.219,0.219 10 true (6) 0.396,1.198 0.615,1.417 0.219,0.219 10 true (7) 0.385,1.781 0.604,2 0.219,0.219 10 true (8) 0.344,2.104 0.563,2.323 0.219,0.219 10 true (9) 2.094,0.74 2.385,0.958 0.292,0.219 10 true (10) 2.708,0.802 3,1.021 0.292,0.219 10 true (11) 2.781,1.219 3.073,1.438 0.292,0.219 10 true (12) 2.802,1.792 3.094,2.01 0.292,0.219 10 true (13) 2.833,2.115 3.125,2.333 0.292,0.219 10 true (14)

*a	Hog Ring Pliers

Using hog ring pliers, install the separate type front seat cushion cover with 14 new hog rings in the order shown in the illustration.

NOTICE:

·

Be careful not to dirty or damage the separate type front seat cushion cover.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seat cushion cover.

for Front Passenger Side:

i.

Attach the claw and install the connector of the occupant detection sensor.

Attach the hook and install the separate type front seat cushion cover with pad.

w/ Seat Heater System:

i.

Connect the connector and attach the clamp.

Attach the hook and install the lumbar support adjuster assembly LH.

1.792,4.083 1.854,3.375 1.854,3.375 2.042,3.375 false 2.063,3.26 2.375,3.417 0.313,0.156 10 false *a 1.625,1.552 1.844,1.771 0.219,0.219 10 true (1) 1.229,1.521 1.448,1.74 0.219,0.219 10 true (2) 2.021,1.521 2.24,1.74 0.219,0.219 10 true (3) 1.635,2.594 1.854,2.813 0.219,0.219 10 true (4) 1.24,2.563 1.458,2.781 0.219,0.219 10 true (5) 0.729,2.135 0.948,2.354 0.219,0.219 10 true (6) 0.677,1.719 0.896,1.938 0.219,0.219 10 true (7) 0.635,1.323 0.854,1.542 0.219,0.219 10 true (8) 0.708,0.875 0.927,1.094 0.219,0.219 10 true (9) 0.75,0.563 1.042,0.781 0.292,0.219 10 true (10) 1.958,2.563 2.25,2.781 0.292,0.219 10 true (11) 2.49,2.146 2.781,2.365 0.292,0.219 10 true (12) 2.542,1.729 2.833,1.948 0.292,0.219 10 true (13) 2.594,1.333 2.885,1.552 0.292,0.219 10 true (14) 2.51,0.875 2.802,1.094 0.292,0.219 10 true (15) 2.396,0.573 2.688,0.792 0.292,0.219 10 true (16)

*a	Hog Ring Pliers
	Fastening Tape

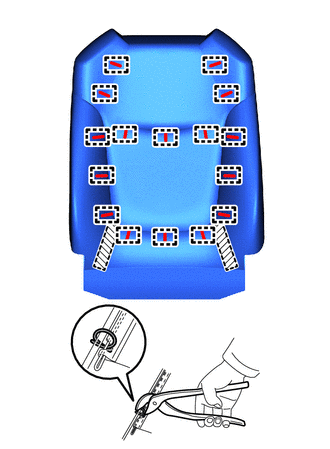

Using hog ring pliers, install the separate type front seatback cover with 16 new hog rings in the order shown in the illustration.

NOTICE:

·

Be careful not to dirty or damage the separate type front seatback cover.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seatback cover.

0,0 0,0 false

Install in this Direction

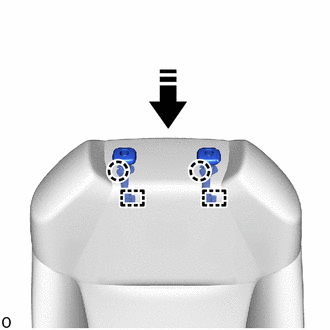

Attach the guide and claw and install the 2 front seat headrest supports as shown in the illustration.

Pass the wire harness through the hole on the separate type front seatback cover.

Attach the hook.

Close the 2 fasteners.

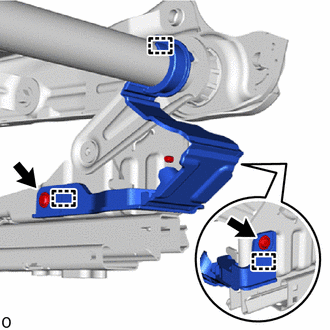

Attach the guide and install the LH seat reclining adjuster inside cover LH to the separate type front seatback assembly.

Attach the guide.

Attach the hook.

1.354,2.365 1.604,2.573 0.25,0.208 12 true *A 1.281,2.635 1.531,2.844 0.25,0.208 12 true *A

*A	w/ Seat Heater System

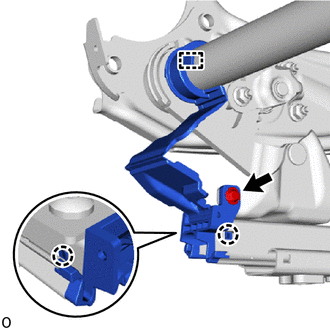

Connect the connector and attach the claw and clamp.

Attach the band.

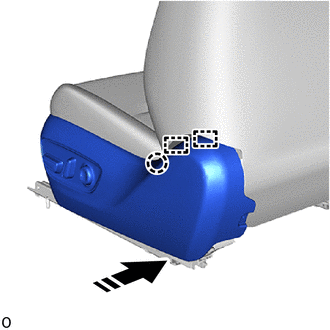

Attach the claw and install the LH seat reclining adjuster inside cover RH to the front seat inner cushion shield LH.

0,0 0,0 false

Install in this Direction

Attach the claw as shown in the illustration.

0,0 0,0 false

Install in this Direction

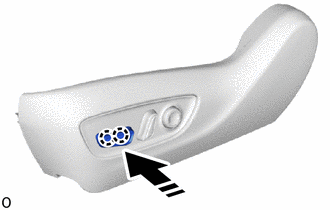

Attach the claw and install the reclining power seat switch knob as shown in the illustration.

0,0 0,0 false

Install in this Direction

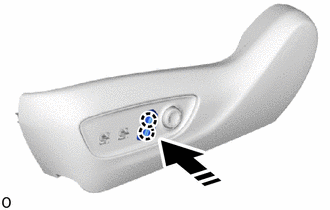

Attach the claw and install the slide and vertical power seat switch knob as shown in the illustration.

Connect the connector.

0,0 0,0 false

Install in this Direction

Attach the guide and claw as shown in the illustration.

0,0 0,0 false

Install in this Direction

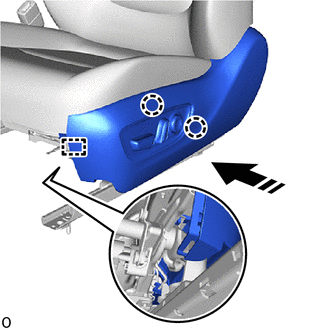

Attach the claw and guide as shown in the illustration.

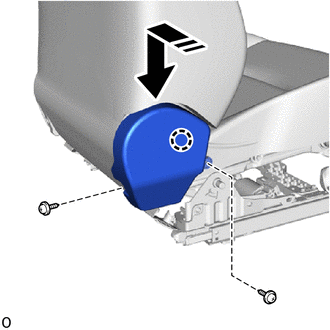

Install the front seat cushion shield LH with the 2 screws.

0.719,2.927 0.719,1.99 true 2.448,2.021 2.448,1.396 2.448,1.396 3.156,1.396 true 2.448,1.729 3.135,1.729 true 2.448,1.906 3.073,1.906 true 0.635,2.938 0.844,3.135 0.208,0.198 10 false *a 2.375,2.042 2.552,2.24 0.177,0.198 10 true *b

*a	Guide A
*b	Guide B
	Install in this Direction (1)
	Install in this Direction (2)

Attach the claw and guide B in the installation direction (1) shown in the illustration.
