RM36D0EC _52 Drivetrain _138176 K121 CVT _0579404 SHIFT LEVER POSITION SENSOR A

K121 CVT  SHIFT LEVER POSITION SENSOR  INSTALLATION


PROCEDURE

Hide 84540 1.INSTALL SHIFT LEVER POSITION SENSOR

a.

Temporarily install the shift lever position sensor to the transaxle case sub-assembly with the 2 bolts.


b.
C400913

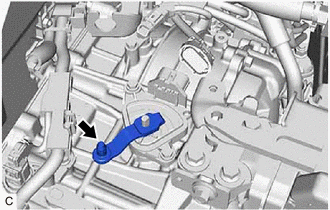

Temporarily install the transmission control shaft lever to the manual valve lever shaft.


c.
C420965C01
0.49,1.448 0.708,1.656 0.219,0.208 10 true *a
*a N

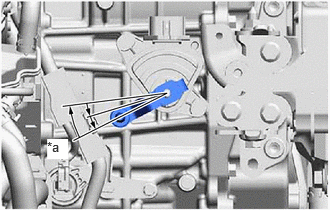

Turn the transmission control shaft lever clockwise until it stops, then turn it counterclockwise 2 notches.


d.

Remove the transmission control shaft lever from the manual valve lever shaft.


e.
C400915C03
2.552,0.604 2.969,0.365 2.969,0.365 2.563,0.438 true 2.99,0.281 3.24,0.542 0.25,0.26 10 false *a
*a Protrusion

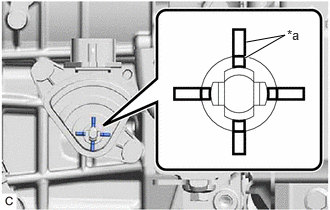

Align the protrusions of the shift lever position sensor as shown in the illustration.


f.

Hold the shift lever position sensor in that position and tighten the 2 bolts.

Torque:
5.4 N*m (55 kgf*cm, 48 in.*lbf)


g.

Install the transmission control shaft lever to the manual valve lever shaft with the washer and nut.

Torque:
12.7 N*m (130 kgf*cm, 9 ft.*lbf)

NOTICE:

Be careful of the direction of the transmission control shaft lever.



h.

Connect the shift lever position sensor connector.


Hide 33820B 2.CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

NOTICE:

Before connecting the transmission control cable assembly, check that the shift lever is in N.


a.
C420965C01
0.49,1.448 0.708,1.656 0.219,0.208 10 true *a
*a N


Turn the transmission control shaft lever clockwise until it stops, then turn it counterclockwise 2 notches.


b.

Connect the transmission control cable assembly to the No. 1 transmission control cable bracket with a new clip.


c.
C400908C02
0.51,2.073 0.823,2.229 0.313,0.156 10 false *a 1.948,2.083 2.26,2.24 0.313,0.156 10 false *b
*a Correct
*b Incorrect


Connect the transmission control cable assembly to the transmission control shaft lever as shown in the illustration.
