M20D-FKS ENGINE CONTROL ECM INSTALLATION
PROCEDURE
89668
1.INSTALL NO. 2 ECM BRACKET
Install the No. 2 ECM bracket to the ECM with the 2 screws.
- Torque:
- 4.5 N*m (46 kgf*cm, 40 in.*lbf)
89667E
2.INSTALL NO. 1 ECM BRACKET
Install the No. 1 ECM bracket to the ECM with the 2 screws.
- Torque:
- 4.5 N*m (46 kgf*cm, 40 in.*lbf)
89661
3.INSTALL ECM
Install the ECM with the 2 bolts and nut.
- Torque:
- 8.0 N*m (82 kgf*cm, 71 in.*lbf)
- NOTICE:
-
If the ECM has been struck or dropped, replace it.

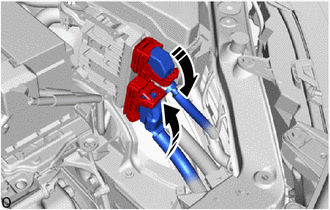

Connect the 2 ECM connectors and rotate the 2 levers to lock them.
- NOTICE:
- ·
When connecting the ECM connectors, make sure that the connecting parts of the ECM connectors are free of dirt, water and other foreign matter.
·Be sure to securely connect the ECM connectors.
4.INSTALL AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE
17751
5.INSTALL NO. 1 INLET AIR CLEANER
12601B
6.INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
7.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. UPDATE ECU SECURITY KEY
9. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL
- HINT:
-
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
10.PERFORM INITIALIZATION
11. GPF DEPOSITION VALUES
- NOTICE:
-
Before replacing the ECM, store the volumes of accumulated ash (metal oxide) and PM (Particulate Matter). After replacing the ECM, write the volumes of accumulated ash and PM to the new ECM.
