M20D-FKS ENGINE CONTROL  SFI SYSTEM  P212012  Throttle/Pedal Position Sensor/Switch "D" Circuit Short to Battery  P212014  Throttle/Pedal Position Sensor/Switch "D" Circuit Short to Ground or Open  P21201C  Throttle/Pedal Position Sensor/Switch "D" Circuit Voltage Out of Range  P21201F  Throttle/Pedal Position Sensor/Switch "D" Circuit Intermittent  P212099  Throttle/Pedal Position Sensor/Switch "D" Exceeded Learning Limit  P212512  Throttle/Pedal Position Sensor/Switch "E" Circuit Short to Battery  P212514  Throttle/Pedal Position Sensor/Switch "E" Circuit Short to Ground or Open  P21251F  Throttle/Pedal Position Sensor/Switch "E" Circuit Intermittent  P21382B  Throttle/Pedal Position Sensor/Switch "D"/"E" Voltage Correlation Signal Cross Coupled

HINT:

These DTCs relate to the accelerator pedal position sensor.

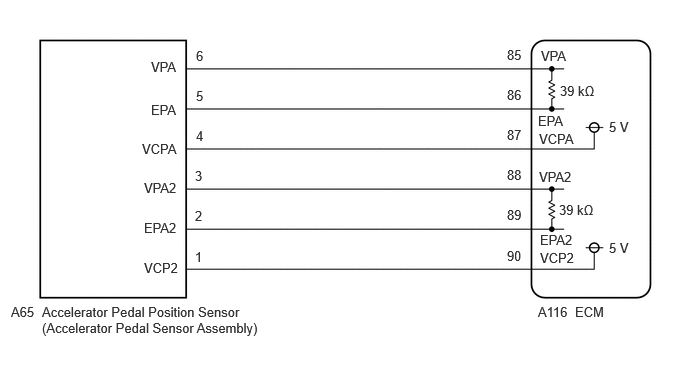

The accelerator pedal position sensor is built into the accelerator pedal sensor assembly and has 2 sensor circuits: VPA (main) and VPA2 (sub). This sensor is a non-contact type sensor and uses Hall-effect elements in order to yield accurate signals even in extreme driving conditions, such as at high speeds as well as very low speeds. The voltage, which is applied to terminals VPA and VPA2 of the ECM, varies between 0.5 V and 4.75 V in proportion to the operating angle of the accelerator pedal (throttle valve). A signal from VPA indicates the actual accelerator pedal opening angle (throttle valve opening angle) and is used for engine control. A signal from VPA2 conveys the status of the VPA circuit and is used to check the accelerator pedal position sensor itself.

The ECM monitors the actual accelerator pedal opening angle (throttle valve opening angle) through the signals from VPA and VPA2, and controls the throttle actuator according to these signals.

4.333,2.031 4.208,1.948 false 4.323,2.198 4.208,2.146 false 4.344,2.24 4.229,2.333 false 4.344,2.396 4.229,2.51 false 4.344,2.917 4.219,2.917 false 4.354,3.125 4.208,3.125 false 0.844,2.875 0.552,3.281 false 1.063,2.198 1.26,1.365 1.26,1.365 1.396,1.365 false 4.333,1.833 3.844,0.938 false 1.063,2.563 0.927,1.823 false 0.927,1.823 0.854,1.823 false 1.302,3.615 1.146,3.615 1.146,3.615 1,3.26 false 0.292,3.802 1.969,4.177 1.677,0.375 10 false Accelerator Pedal Position Sensor 1.448,1.302 1.927,1.479 0.479,0.177 10 false Magnet 0.313,1.74 0.844,1.917 0.531,0.177 10 false IC No. 1 0.313,3.313 0.844,3.49 0.531,0.177 10 false IC No. 2 2.063,1.74 2.531,1.917 0.469,0.177 10 false VPA 2.063,2.073 2.552,2.271 0.49,0.198 10 false EPA 2.063,2.385 2.583,2.563 0.521,0.177 10 false VCPA 2.063,2.688 2.573,2.865 0.51,0.177 10 false VPA2 2.063,3 2.563,3.198 0.5,0.198 10 false EPA2 2.063,3.323 2.583,3.5 0.521,0.177 10 false VCP2 2.677,3.76 3,3.938 0.323,0.177 10 false ECM 4.271,1.542 4.427,1.719 0.156,0.177 10 false *1 5.865,1.542 6.021,1.719 0.156,0.177 10 false *2 3.917,1.854 4.208,2.031 0.292,0.177 10 false 4.55 3.844,2.063 4.208,2.24 0.365,0.177 10 false 3.988 3.938,2.281 4.229,2.458 0.292,0.177 10 false 3.75 3.875,2.469 4.24,2.646 0.365,0.177 10 false 3.188 3.969,2.823 4.271,3 0.302,0.177 10 false 1.6 3.979,3.042 4.281,3.219 0.302,0.177 10 false 0.8 4.406,3.344 4.698,3.521 0.292,0.177 10 false 0.29 4.26,3.594 4.417,3.771 0.156,0.177 10 false 0 5.781,3.594 6.073,3.771 0.292,0.177 10 false 12.4 4.677,3.583 5.604,3.823 0.927,0.24 10 false Usable Range 4.667,3.896 7.167,4.094 2.5,0.198 10 false Accelerator Pedal Angle (°) 4.344,4.656 6.625,4.833 2.281,0.177 10 false *1: Accelerator Pedal Fully Released 4.344,4.969 6.729,5.135 2.385,0.167 10 false *2: Accelerator Pedal Fully Depressed 2.156,0.813 3.854,1.167 1.698,0.354 10 false Accelerator Pedal Position Sensor Output Voltage (V) 6.479,2.281 6.927,2.51 0.448,0.229 10 false VPA 6.438,1.823 6.865,2 0.427,0.177 10 false VPA2 1.375,3.531 1.854,3.708 0.479,0.177 10 false Magnet

HINT:

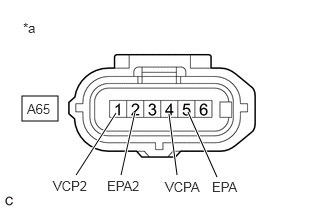

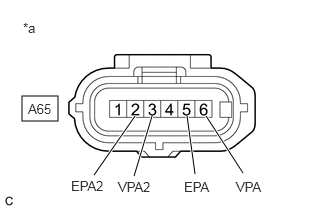

When any of these DTCs are output, check the accelerator pedal position sensor voltage using the GTS. Enter the following menus: Powertrain / Engine / Data List / Accelerator Position Sensor No.1 Voltage and Accelerator Position Sensor No.2 Voltage.

Trouble Area	Accelerator Pedal Fully Released		Accelerator Pedal Fully Depressed
	Accelerator Position Sensor No.1 Voltage	Accelerator Position Sensor No.2 Voltage	Accelerator Position Sensor No.1 Voltage	Accelerator Position Sensor No.2 Voltage
Open in VCP circuit	0 to 0.2 V	0 to 0.2 V	0 to 0.2 V	0 to 0.2 V
Open or ground short in VPA circuit	0 to 0.2 V	1.2 to 2.0 V	0 to 0.2 V	3.4 to 4.75 V
Open or ground short in VPA2 circuit	0.5 to 1.1 V	0 to 0.2 V	2.6 to 4.5 V	0 to 0.2 V
Open in EPA circuit	4.5 to 4.98 V	4.5 to 4.98 V	4.5 to 4.98 V	4.5 to 4.98 V
Normal condition	0.5 to 1.1 V	1.2 to 2.0 V	2.6 to 4.5 V	3.4 to 4.75 V

HINT:

Accelerator pedal positions are expressed as voltages.

When either output voltage of VPA or VPA2 deviates from the standard range, or the difference between the output voltages of the 2 sensor circuits exceeds the upper or lower threshold, the ECM determines that there is a malfunction in the accelerator pedal position sensor. The ECM then illuminates the MIL and stores a DTC.

Example:

When the output voltage of VPA is 0.4 V or less for 0.5 seconds or more when the accelerator pedal is fully depressed, DTC P212014 is stored.

HINT:

·

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR202304,202409,_51,_083058,_0401834,RM1000000029C72,202409,999999,_51,_083058,_0401834,RM100000002NA8O,

·

When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR202304,202409,_51,_083058,_0401834,RM1000000029C72,202409,999999,_51,_083058,_0401834,RM100000002NA8O,

P212012, P212014, P21201F, P212512, P212514, P21251F and P21382B

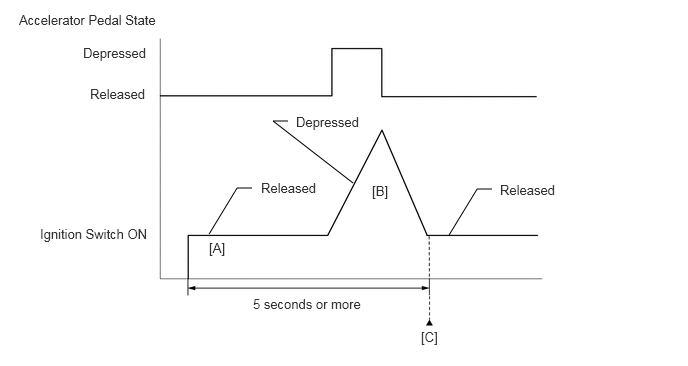

2.177,2.438 2.469,1.958 2.469,1.958 2.625,1.958 false 4.677,2.448 4.969,1.969 4.969,1.969 5.125,1.969 false 3.677,1.906 2.844,1.26 2.844,1.26 3,1.26 false 0.198,0.125 3.719,0.323 3.521,0.198 10 false Accelerator Pedal State 0.865,0.469 1.708,0.76 0.844,0.292 10 false Depressed 0.938,0.896 1.781,1.188 0.844,0.292 10 false Released 0.417,2.354 1.625,2.573 1.208,0.219 10 false Ignition Switch ON 2.177,2.5 2.5,2.75 0.323,0.25 10 false [A] 3.875,1.906 4.198,2.156 0.323,0.25 10 false [B] 4.385,3.427 4.708,3.677 0.323,0.25 10 false [C] 2.635,3.083 3.948,3.344 1.313,0.26 10 false 5 seconds or more 2.719,1.875 3.469,2.104 0.75,0.229 10 false Released 5.208,1.896 5.958,2.125 0.75,0.229 10 false Released 3.083,1.188 3.833,1.417 0.75,0.229 10 false Depressed

1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Turn the ignition switch to ON [A].

7.

Turn the GTS on.

8.

Fully depress and release the accelerator pedal [B].

9.

Check that 5 seconds or more have elapsed since the ignition switch ON.

10.

Enter the following menus: Powertrain / Engine / Trouble Codes [C].

11.

Read the pending DTCs.

HINT:

·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.

12.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

13.

Input the DTC: P212012, P212014, P21201F, P212512, P212514, P21251F or P21382B.

14.

Check the DTC judgment result.

GTS Display	Description
NORMAL	· DTC judgment completed · System normal
ABNORMAL	· DTC judgment completed · System abnormal
INCOMPLETE	· DTC judgment not completed · Perform driving pattern after confirming DTC enabling conditions

HINT:

·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system is malfunctioning.

·

If the judgment result is INCOMPLETE, perform steps [B] through [C] again.

·

[A] to [C]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

P21201C and P212099

3.635,2.01 2.771,1.302 2.771,1.302 2.927,1.302 false 4.729,2.448 5.115,1.802 5.115,1.802 5.26,1.802 false 2.208,2.438 2.438,2.094 2.438,2.094 2.542,2.094 false 0.125,0.094 1.74,0.271 1.615,0.177 10 false Accelerator Pedal State 0.865,0.417 1.583,0.563 0.719,0.146 10 false Depressed 0.948,0.875 1.594,1.031 0.646,0.156 10 false Released 0.448,2.375 1.615,2.583 1.167,0.208 10 false Ignition Switch ON 2.094,2.49 2.469,2.688 0.375,0.198 10 false [A] 4.417,3.438 4.844,3.615 0.427,0.177 10 false [C] 5.365,1.719 6.01,1.875 0.646,0.156 10 false Released 2.375,3.052 3.188,3.229 0.813,0.177 10 false 5 seconds 3.01,1.229 3.729,1.375 0.719,0.146 10 false Depressed 3.865,3.042 4.208,3.24 0.344,0.198 10 false [B] 2.594,2.01 3.24,2.167 0.646,0.156 10 false Released

1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Turn the ignition switch to ON [A].

7.

Turn the GTS on.

8.

Wait for 5 seconds after turning the ignition switch to ON.

9.

Operate the accelerator pedal in accordance with the following procedure [B].

(a)

Enter the following menus: Powertrain / Engine / Data List / Accelerator Position Sensor No.1 Voltage % and Accelerator Position Sensor No.2 Voltage %.

(b)

Slowly depress the accelerator pedal until Accelerator Position Sensor No.1 Voltage % is approximately 30% and Accelerator Position Sensor No.2 Voltage % is approximately 46%, then slowly release the accelerator pedal.

10.

Enter the following menus: Powertrain / Engine / Trouble Codes [C].

11.

Read the pending DTCs.

HINT:

·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.

12.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

13.

Input the DTC: P21201C or P212099.

14.

Check the DTC judgment result.

GTS Display	Description
NORMAL	· DTC judgment completed · System normal
ABNORMAL	· DTC judgment completed · System abnormal
INCOMPLETE	· DTC judgment not completed · Perform driving pattern after confirming DTC enabling conditions

HINT:

·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system is malfunctioning.

·

If the judgment result is INCOMPLETE, perform steps [B] through [C] again.

·

[A] to [C]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

When these DTCs are stored, the ECM enters fail-safe mode. If either of the 2 sensor circuits malfunctions, the ECM limits the engine output. If both of the circuits malfunction, the ECM regards the accelerator pedal as being released. As a result, the throttle valve is closed and the engine idles.

Fail-safe mode continues until a pass condition is detected, and the ignition switch is turned off.

HINT:

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
