RM36D0EC _51 Engine / Hybrid System _083058 M20D-FKS ENGINE CONTROL _0401823 ACCELERATOR PEDAL A

M20D-FKS ENGINE CONTROL ACCELERATOR PEDAL REMOVAL

PROCEDURE

Hide Display 67914B 1.REMOVE FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL201910,202004,_58,_083106,_0400609,RM100000001J8OU_01_0069,202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0069,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0069,

Hide Display 62112 2.REMOVE COWL SIDE TRIM BOARD LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL201910,202004,_58,_083106,_0400609,RM100000001J8OU_01_0014,202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0014,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0014,

Hide Display 55606 3.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201910,202004,_58,_083106,_0400607,RM100000001J8ON_01_0002,202004,202104,_58,_083106,_0400607,RM100000001MIPG_01_0002,202104,202304,_58,_083106,_0400607,RM100000001W6F2_01_0002,202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0002,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0002,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0002,

Hide Display 78110K 4.REMOVE ACCELERATOR PEDAL(W/SENSOR) ROD ASSEMBLY

NOTICE:: ·

Avoid physical shock to the accelerator pedal sensor assembly.

·

Do not disassemble the accelerator pedal sensor assembly.

·

The accelerator pedal sensor assembly does not require lubrication.

·

Do not apply oil or other lubricants to the accelerator pedal sensor assembly. If applied, the accelerator pedal sensor assembly must be replaced.

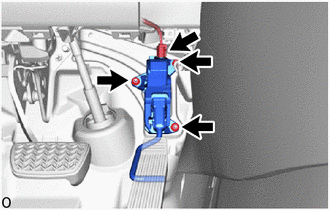

Disconnect the accelerator pedal sensor assembly connector.

Remove the 3 nuts and disconnect the rod of the accelerator pedal sensor assembly from the accelerator pedal to remove the accelerator pedal sensor assembly.

NOTICE:: If the accelerator pedal sensor assembly has been struck or dropped, replace it.

Hide Display 78118 5.REMOVE ACCELERATOR PEDAL PAD

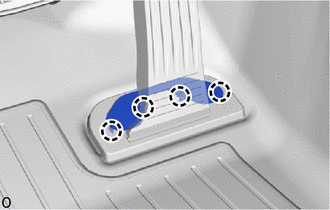

Detach the 4 claws and remove the accelerator pedal pad from the accelerator pedal assembly.

Hide Display 78010F 6.REMOVE ACCELERATOR PEDAL ASSEMBLY

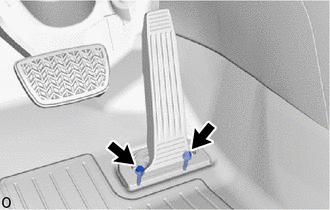

Remove the 2 bolts.

2.302,1.802 2.302,1.49 false 2.313,2.99 2.313,2.75 false 2.219,1.833 2.531,1.99 0.313,0.156 10 false *a 2.24,3.021 2.552,3.177 0.313,0.156 10 false *a

*a	Vehicle Body
	Remove in this Direction (1)
	Remove in this Direction (2)

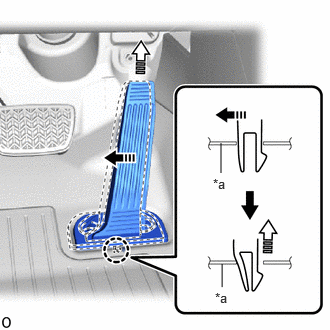

Push the accelerator pedal assembly in the direction indicated by the arrow (1) shown in the illustration to detach the claw.

Pull the accelerator pedal assembly in the direction indicated by the arrow (2) shown in the illustration to remove it.
