RM36D0EC _58 Vehicle Interior _083105 POWER OUTLETS (INT) _0402362 POWER OUTLET SOCKET(for Luggage Compartment) A

POWER OUTLETS (INT) POWER OUTLET SOCKET(for Luggage Compartment) REMOVAL

PROCEDURE

Hide Display 1.REMOVE REAR SEAT ASSEMBLY

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083102,_0419060,RM100000001MO2W,

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083102,_0419059,RM100000001MO2R,

Hide Display 73705 2.REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT BELT>CHILD RESTRAINT SEAT ANCHOR BRACKET>REMOVAL202004,999999,_58,_083103,_0401777,RM100000001MO7X_01_0002,

Hide Display 58410B 3.REMOVE DECK BOARD ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0009,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0009,

Hide Display 58416K 4.REMOVE REAR NO. 2 FLOOR BOARD

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0031,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0031,

Hide Display 58386 5.REMOVE REAR FLOOR FINISH PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0011,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0011,

Hide Display 58577E 6.REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0034,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0034,

Hide Display 62331C 7.REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

HINT:: ·

Remove the rear door opening trim weatherstrip RH so that the rear seat side garnish RH can be removed.

·

Use the same procedure described for the LH side.

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP>REMOVAL201910,999999,_59,_083093,_0403690,RM100000001JUGH_02_0002,

Hide Display 62551F 8.REMOVE REAR SEAT SIDE GARNISH RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0026,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0026,

Hide Display 73708A 9.REMOVE TETHER ANCHOR BRACKET SET

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0028,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0028,

Hide Display 58460D 10.REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0001,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0001,

Hide Display 64730J 11.REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0004,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0004,

Hide Display 64714J 12.REMOVE DECK SIDE TRIM COVER RH

Detach the claw and remove the deck side trim cover RH.

Hide Display 85530B 13.REMOVE REAR NO. 1 POWER OUTLET SOCKET ASSEMBLY

0,0 0,0 false

	Remove in this Direction
	Protective Tape

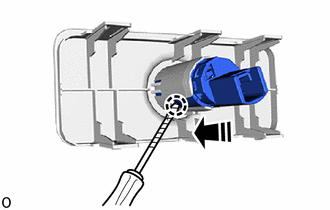

Using a screwdriver with its tip wrapped with protective tape, detach the claw and remove the rear No. 1 power outlet socket assembly as shown in the illustration.

Hide Display 85535C 14.REMOVE REAR POWER OUTLET SOCKET COVER

Detach the claw and guide to remove the rear power outlet socket cover.
