RM36D0EC _59 Vehicle Exterior _083093 DOOR / HATCH _0403701 FUEL LID OPENER MOTOR ASSEMBLY A

DOOR / HATCH FUEL LID OPENER MOTOR ASSEMBLY REMOVAL

PROCEDURE

Hide Display 1.REMOVE REAR SEAT ASSEMBLY

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083102,_0419060,RM100000001MO2W,

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083102,_0419059,RM100000001MO2R,

Hide Display 73706 2.REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

Click hereVehicle Interior>SEAT BELT>CHILD RESTRAINT SEAT ANCHOR BRACKET>REMOVAL202004,999999,_58,_083103,_0401777,RM100000001MO7X_01_0002,

Hide Display 58410B 3.REMOVE DECK BOARD ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0009,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0009,

Hide Display 58417H 4.REMOVE REAR NO. 3 FLOOR BOARD

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0030,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0030,

Hide Display 58386 5.REMOVE REAR FLOOR FINISH PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0011,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0011,

Hide Display 58577E 6.REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0034,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0034,

Hide Display 62332C 7.REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

HINT:: Remove the rear door opening trim weatherstrip LH so that the center pillar lower garnish LH and rear seat No. 3 side garnish LH can be removed.; Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP>REMOVAL201910,999999,_59,_083093,_0403690,RM100000001JUGH_02_0002,

Hide Display 62552F 8.REMOVE REAR SEAT SIDE GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0026,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0026,

Hide Display 73708A 9.REMOVE TETHER ANCHOR BRACKET SET

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0028,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0028,

Hide Display 58460D 10.REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0001,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0001,

Hide Display 64740E 11.REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0003,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0003,

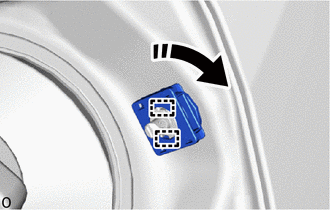

Hide Display 77378A 12.REMOVE FUEL FILLER OPENING LID LOCK COVER

0,0 0,0 false

Remove in this Direction

Detach the claw and remove the fuel filler opening lid lock cover as shown in the illustration.

HINT:: The fuel filler opening lid lock cover is a non-reusable part. Make sure to replace it with a new one.

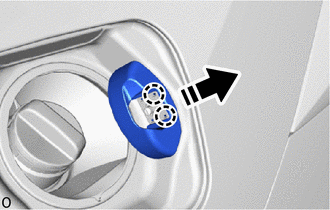

Hide Display 77377 13.REMOVE FUEL FILLER OPENING LID LOCK RETAINER

0,0 0,0 false

Remove in this Direction

Rotate the fuel filler opening lid lock retainer clockwise and detach the guide, then remove the fuel filler opening lid lock retainer as shown in the illustration.

HINT:: The fuel filler opening lid lock retainer is a non-reusable part. Make sure to replace it with a new one.

Hide Display 77030A 14.REMOVE FUEL LID LOCK WITH MOTOR ASSEMBLY

0,0 0,0 false

Remove in this Direction

Detach the guide and remove the fuel lid lock with motor assembly as shown in the illustration.

Disconnect the connector.
