RM36D0EC _59 Vehicle Exterior _083096 LIGHTING (EXT) _0402633 REAR LIGHT ASSEMBLY A

LIGHTING (EXT)  REAR LIGHT ASSEMBLY  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure described below is for the LH side.



PROCEDURE

Hide 1.INSTALL REAR LIGHT ASSEMBLY LH

a.

for Type A:

i.

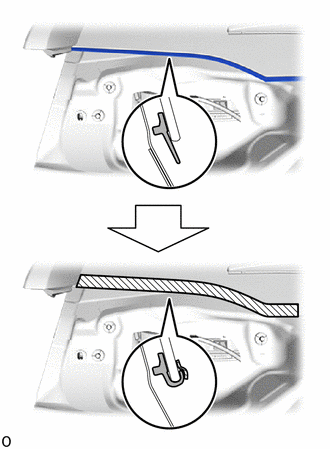

B555569C01
0,0 0,0 false
V100145

Back Window Lower Moulding
V100155

Tape


When installing the rear light assembly LH, secure the back window lower moulding to the surface of the back door glass with tape so that the back window lower moulding does not jam.


ii.

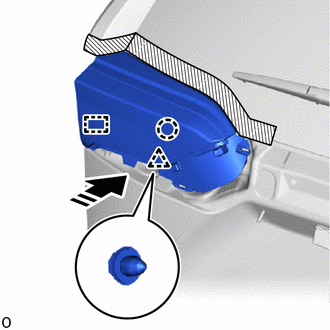

B555557C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw, clip and pin and install the rear light assembly LH as shown in the illustration.


iii.

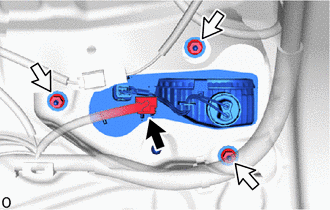

B555558C02
0,0 0,0 false
V100135

Connector
V100136

Nut


Install the 3 nuts.

Torque:
5.4 N*m (55 kgf*cm, 48 in.*lbf)



b.

Connect the connector.


c.

Remove the protective tape.


d.

Return the back window lower moulding to its original position.


e.

for Type B:

i.

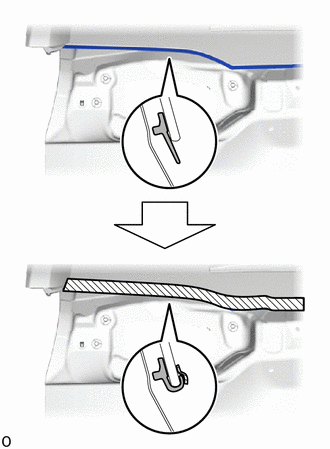

B573044C01
0,0 0,0 false
V100145

Back Window Lower Moulding
V100155

Tape


When installing the rear light assembly LH, secure the back window lower moulding to the surface of the back door glass with tape so that the back window lower moulding does not jam.


ii.

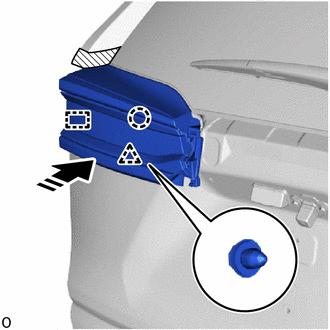

B573045C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw, clip and pin and install the rear light assembly LH as shown in the illustration.


iii.

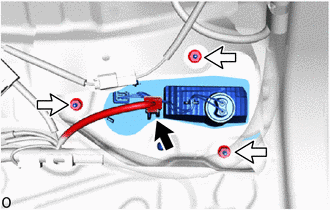

B573034C01
0,0 0,0 false
V100135

Connector
V100136

Nut


Install the 3 nuts.

Torque:
5.4 N*m (55 kgf*cm, 48 in.*lbf)
