EXTERIOR PANELS / TRIM BACK DOOR OUTSIDE GARNISH(for Upper Side) INSTALLATION
PROCEDURE
76801
1.INSTALL BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY (for Type A)
|
Back Window Lower Moulding |
|
Tape |

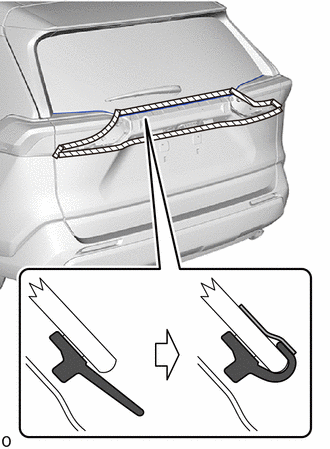

When installing the back door outside garnish sub-assembly, secure the back window lower moulding to the surface of the back door glass with tape so that the back window lower moulding does not jam.
|
Install in this Direction |

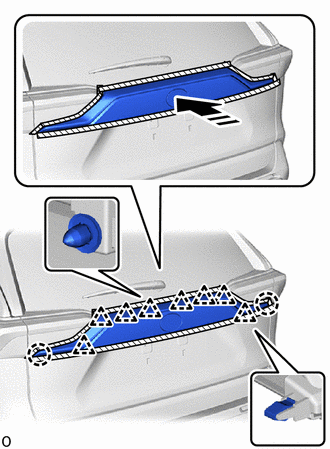

Attach the clip and claw to install the back door outside garnish sub-assembly.
Remove the protective tape.
Return the back window lower moulding to its original position.

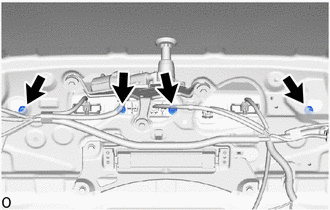

Install the 4 bolts.
- Torque:
- 5.0 N*m (51 kgf*cm, 44 in.*lbf)
76801
2.INSTALL BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY (for Type B)
|
|
Back Window Lower Moulding |
|
|
Tape |

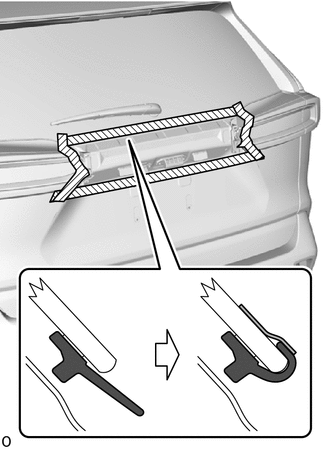

When installing the back door outside garnish sub-assembly, secure the back window lower moulding to the surface of the back door glass with tape so that the back window lower moulding does not jam.
|
|
Install in this Direction |

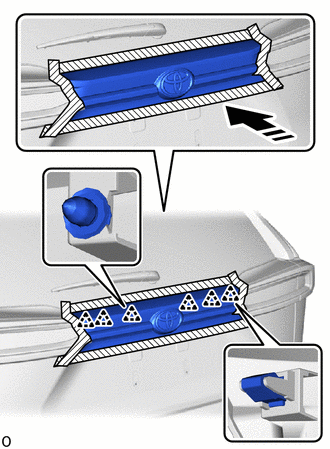

Attach the clip and install the back door outside garnish sub-assembly.
Remove the protective tape.
Return the back window lower moulding to its original position.
Install the 4 bolts.
- Torque:
- 5.0 N*m (51 kgf*cm, 44 in.*lbf)
67750
3.INSTALL BACK DOOR TRIM BOARD ASSEMBLY
67199
4.INSTALL BACK DOOR HANDLE COVER
- HINT:
-
Use the same procedure for the RH and LH sides.
67938A
5.INSTALL BACK DOOR SIDE GARNISH LH
67937B
6.INSTALL BACK DOOR SIDE GARNISH RH
- HINT:
-
Use the same procedure described for the LH side.
67939B
7.INSTALL BACK DOOR CENTER GARNISH
