RM36D0EC _58 Vehicle Interior _083102 SEAT _0419060 REAR SEAT ASSEMBLY(for GTMC Made) A

SEAT  REAR SEAT ASSEMBLY(for GTMC Made)  REASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



PROCEDURE

Hide 72057 1.INSTALL REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY RH

a.
B526533

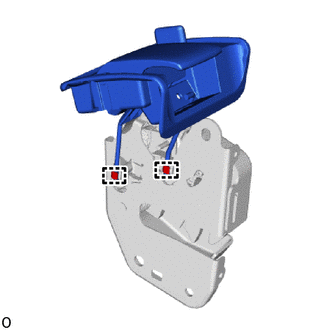

Attach the hook and install the rear seat lock control lever sub-assembly RH to the rear seatback lock assembly RH.


Hide 72630C 2.INSTALL REAR SEATBACK LOCK ASSEMBLY RH

a.
B526529

Install the rear seatback lock assembly RH with the 3 bolts.

Torque:
30 N*m (306 kgf*cm, 22 ft.*lbf)


b.
B526531

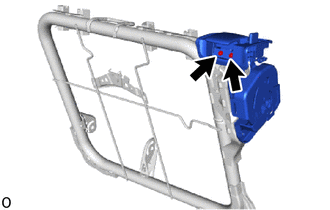

Install the 2 screws.


Hide 71077S 4.INSTALL SEPARATE TYPE REAR SEATBACK COVER RH

HINT:

When installing a separate type rear seatback cover RH, refer to Precaution in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Manual Seat)>PRECAUTION


a.
B526525

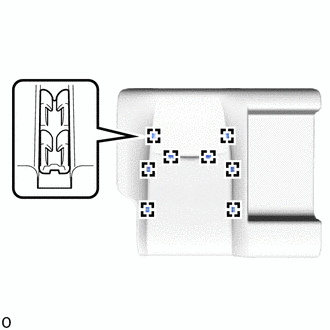

Attach the hook to install the separate type rear seatback cover RH to the separate type rear seatback pad RH.

NOTICE:

Be careful not to dirty or damage the separate type rear seatback cover RH.



Hide 5.INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD

a.

Set the separate type rear seatback cover with pad to the rear seatback frame sub-assembly RH.


b.
B526526

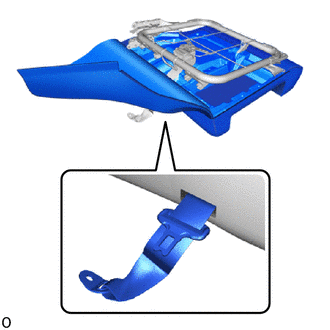

Pass the rear center seat outer belt assembly through the hole of separate type rear seatback cover with pad.


c.
B526534

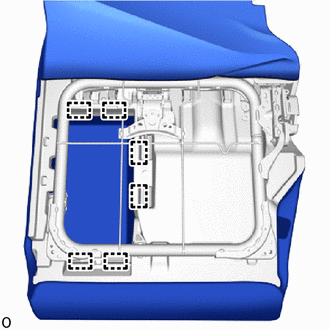

Attach the hook.


d.
B526521

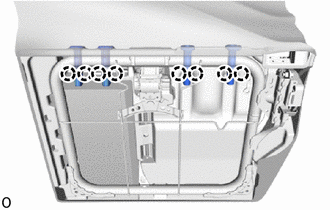

Attach the claw and install the 4 rear seat headrest supports.


Hide 72806B 6.INSTALL REAR CENTER SEAT ARMREST CUP HOLDER SUB-ASSEMBLY

a.
B572981
0,0 0,0 false
V113147

Install in this Direction

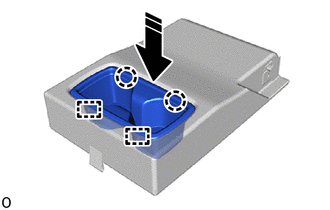

Attach the guide and claw and install the rear center seat armrest cup holder sub-assembly as shown in the illustration.


Hide 72830 7.INSTALL REAR CENTER SEAT ARMREST ASSEMBLY

a.
B526519

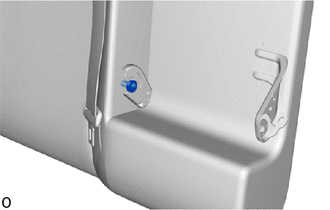

Install the bush.


b.
B526518C01
2.323,1.938 2.885,2.052 true 0.354,0.74 0.823,0.896 true 2.917,1.99 3.229,2.146 0.313,0.156 10 false *a 0.167,0.625 0.344,0.823 0.177,0.198 10 true *b
*a Outside Location Pin
*b Inside Location Pin
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Attach the inside location pin in the installation direction (1) shown in the illustration.


c.

Attach the outside location pin in the installation direction (2) shown in the illustration.


d.
B526515
2.823,1.719 2.823,1.354 false 2.75,1.74 3.063,1.896 0.313,0.156 10 false *a
*a Washer

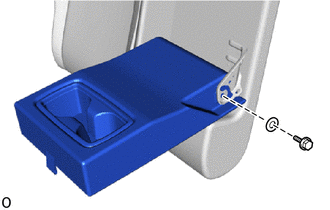

Fold the rear center seat armrest assembly forward.


e.

Install the rear center seat armrest assembly with the washer and bolt.

Torque:
21 N*m (214 kgf*cm, 15 ft.*lbf)


Hide 72868 8.INSTALL CENTER ARMREST HINGE COVER RH

a.
B526514
0,0 0,0 false
V113147

Install in this Direction

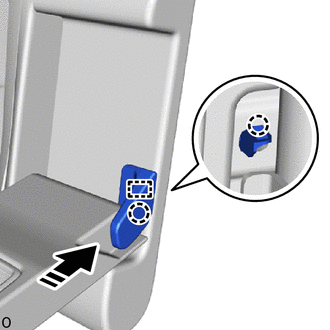

Attach the guide and claw and install the center armrest hinge cover RH.


Hide 71701C 9.INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY RH

a.
B526512
0.26,2.25 0.531,1.823 true 1.583,2.448 1.063,2.979 1.063,2.979 1.021,2.052 true 1.146,1.531 0.385,1.458 0.385,1.458 0.906,1.802 true 1.51,1.698 2.479,2.365 2.479,2.365 1.281,2.01 true 0.188,1.333 0.365,1.531 0.177,0.198 10 false *a 0.115,2.271 0.323,2.458 0.208,0.188 10 false *b 0.948,3.021 1.156,3.208 0.208,0.188 10 false *b 2.51,2.302 2.688,2.5 0.177,0.198 10 false *a
*a Guide
*b Hook
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)
V113149

Install in this Direction (3)

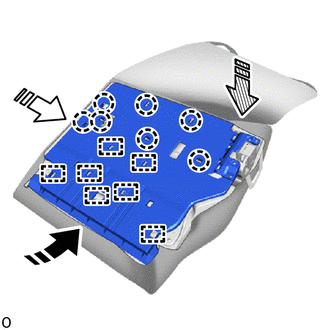

Attach the hook in the installation direction (1) shown in the illustration.


b.

Attach the guide in the installation direction (2) shown in the illustration.


c.

Attach the claw in the installation direction (3) shown in the illustration.


d.
B526510

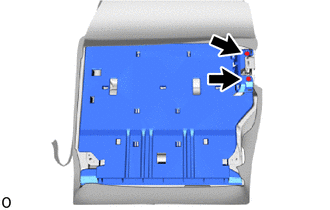

Install the rear seatback board sub-assembly RH with the 2 clips.


e.
B526506

Close the 2 fasteners.


f.

Put the 2 fasteners in the hole of rear seatback board sub-assembly RH.


g.
B526504

Attach the hook.


h.
B526502

Attach the hook.


Hide 72667A 10.INSTALL REAR UPPER SEATBACK LOCK BEZEL RH

a.
B526495
0,0 0,0 false
V113147

Install in this Direction

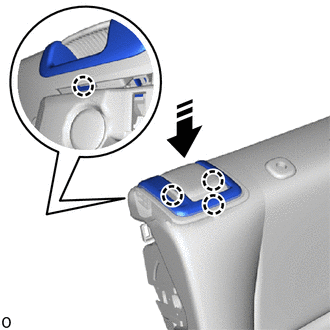

Attach the claw and install the rear upper seatback lock bezel RH.


Hide 72668E 11.INSTALL REAR LOWER SEATBACK LOCK BEZEL RH

a.
B526491
0,0 0,0 false
V113147

Install in this Direction

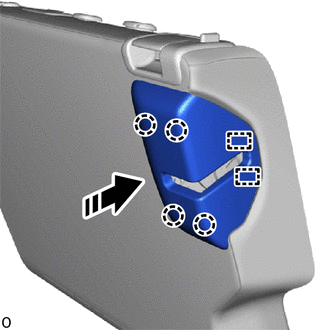

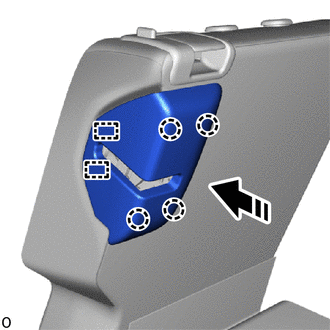

Attach the guide and claw and install the rear lower seatback lock bezel RH.


Hide 73178A 12.INSTALL SEAT BELT ANCHOR COVER CAP

a.
B526500

Pass the rear center seat outer belt assembly from the slit of rear seat shoulder belt cover.


b.
B526499C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and install the seat belt anchor cover cap as shown in the illustration.


Hide 73373 13.INSTALL REAR SEAT SHOULDER BELT COVER

a.
B526497C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and claw and install the rear seat shoulder belt cover.


Hide 72058A 14.INSTALL REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY LH

a.
B526532

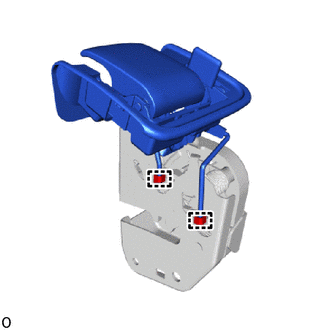

Attach the hook and install the rear seat lock control lever sub-assembly LH to the rear seatback lock assembly LH.


Hide 72640A 15.INSTALL REAR SEATBACK LOCK ASSEMBLY LH

a.
B526528

Install the rear seatback lock assembly LH with the 3 bolts.

Torque:
30 N*m (306 kgf*cm, 22 ft.*lbf)


b.
B526530

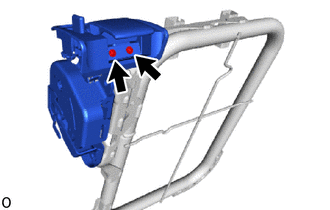

Install the 2 screws.


Hide 71078S 16.INSTALL SEPARATE TYPE REAR SEATBACK COVER LH

HINT:

When installing a separate type rear seatback cover LH, refer to Precaution in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Manual Seat)>PRECAUTION


a.
B526523

Attach the hook and install the separate type rear seatback cover LH to the separate type rear seatback pad LH.

NOTICE:

Be careful not to dirty or damage the separate type rear seatback cover LH.



Hide 17.INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD

a.

Set the separate type rear seatback cover with pad to the rear seatback frame sub-assembly LH.


b.
B526520

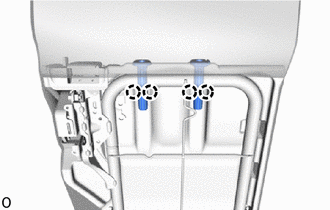

Attach the claw and install the 2 rear seat headrest supports.


Hide 71702C 18.INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY LH

a.
B526509
0.354,1.906 0.802,1.938 true 1.385,2.417 1.906,2.823 true 1.281,1.99 0.677,1.26 0.677,1.26 1.615,1.688 true 0.479,1.094 0.667,1.292 0.188,0.198 10 false *a 0.156,1.813 0.333,1.99 0.177,0.177 10 false *b 1.938,2.802 2.115,2.979 0.177,0.177 10 false *b
*a Guide
*b Hook
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)
V113149

Install in this Direction (3)

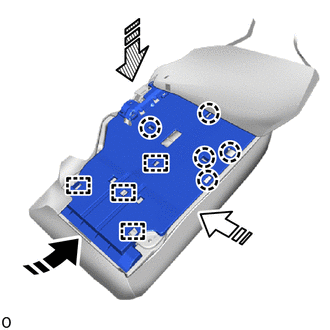

Attach the hook in the installation direction (1) shown in the illustration.


b.

Attach the guide in the installation direction (2) shown in the illustration.


c.

Attach the claw in the installation direction (3) shown in the illustration.


d.
B526507

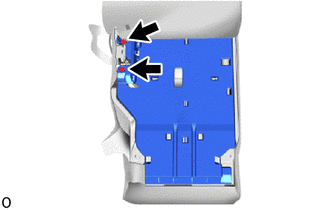

Install the rear seatback board sub-assembly LH with the 2 clips.


e.
B526505

Install the clip.


f.

Close the 2 fasteners.


g.

Put the 2 fasteners in the hole of rear seatback board sub-assembly LH.


h.
B526503

Attach the hook.


i.
B526501

Attach the hook.


Hide 72667B 19.INSTALL REAR UPPER SEATBACK LOCK BEZEL LH

a.
B526493
0,0 0,0 false
V113147

Install in this Direction

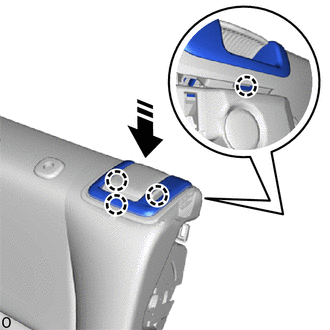

Attach the claw and install the rear upper seatback lock bezel LH.


Hide 72668F 20.INSTALL REAR LOWER SEATBACK LOCK BEZEL LH

a.
B526489
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and claw and install the rear lower seatback lock bezel LH.


Hide 71075B 21.INSTALL BENCH TYPE REAR SEAT CUSHION COVER

HINT:

When installing a bench type rear seat cushion cover, refer to Precaution in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Manual Seat)>PRECAUTION


a.

Attach the hook and install the bench type rear seat cushion cover to the rear seat cushion pad.

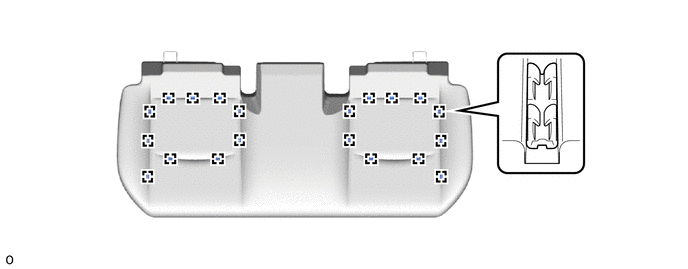

B526485

NOTICE:

Be careful not to dirty or damage the bench type rear seat cushion cover.



b.

Attach the hook.

i.

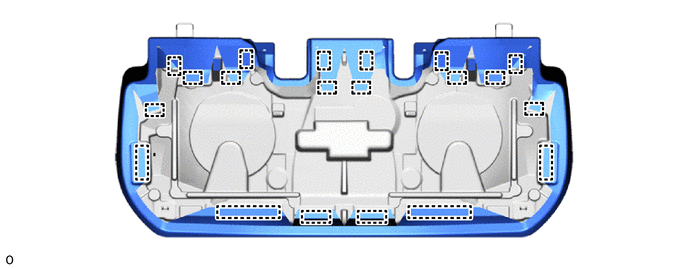

for Gasoline Model:

B521821


ii.

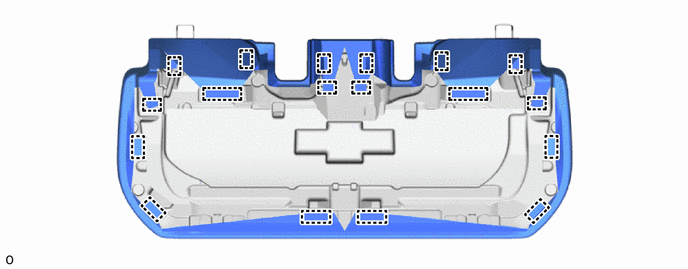

for HV Model:

B570590
