DOOR / HATCH  HOOD  ADJUSTMENT


CAUTION / NOTICE / HINT

HINT:
B286201C09
0.656,0.313 0.969,0.469 0.313,0.156 10 false *1 2.552,0.313 2.865,0.469 0.313,0.156 10 false *2
*1 Centering Bolt
*2 Standard Bolt


·

Centering bolts are used to mount the hood hinge to the vehicle body and hood. The hood cannot be adjusted with the centering bolts on. Substitute the centering bolts for standard bolts (with washers) when making adjustments.

·

A bolt without a torque specification is shown in the standard bolt chart.

Click hereGeneral>SPECIFICATIONS>STANDARD BOLT>SPECIFIED TORQUE FOR STANDARD BOLTS



PROCEDURE

Hide 53301 1.ADJUST HOOD SUB-ASSEMBLY

a.

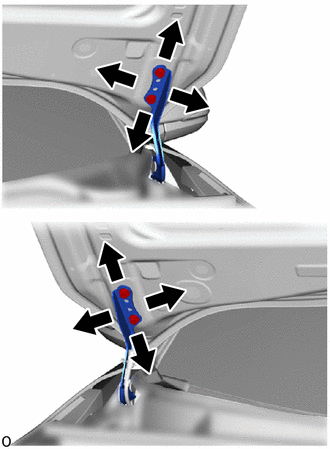

B521971

Adjust the hood position.

i.

Loosen the 4 hinge bolts on the hood and adjust the hood position.


ii.

Move the hood and adjust the clearance between the hood and front fender.


iii.

Tighten the 4 hinge bolts on the hood after the adjustment.

Torque:
13 N*m (133 kgf*cm, 10 ft.*lbf)



b.

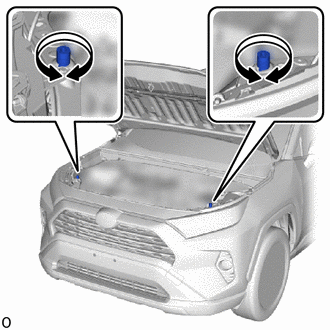

B521972

Adjust the cushion rubbers so that the hood and fender are aligned.

HINT:

Raise or lower the front end of the hood by turning the cushion rubber.



c.

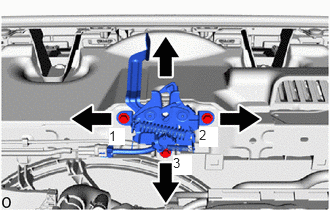

B521973N01
1.135,1.333 1.302,1.51 0.167,0.177 10 true 1 2.073,1.323 2.271,1.531 0.198,0.208 10 true 2 1.802,1.615 2,1.823 0.198,0.208 10 true 3

Adjust the hood lock.

i.

Loosen the 3 bolts.


ii.

Adjust the hood lock position so that the striker can enter it smoothly.


iii.

Tighten the 3 bolts after the adjustment in the order shown in the illustration.

Torque:
8.0 N*m (82 kgf*cm, 71 in.*lbf)
