RM36D0EC _58 Vehicle Interior _083104 HEATING / AIR CONDITIONING _0403510 COMPRESSOR(for M20D-FKS) A

HEATING / AIR CONDITIONING COMPRESSOR(for M20D-FKS) REMOVAL

CAUTION / NOTICE / HINT

NOTICE:: If metal dust is produced inside the compressor assembly with pulley, it could cause a clog in the modulator. If any metal dust comes out, replace the cooler dryer inside the modulator also.; Click hereVehicle Interior>HEATING / AIR CONDITIONING>CONDENSER (for Gasoline Model)>DISASSEMBLY201910,999999,_58,_083104,_0403070,RM100000001JNGZ,

PROCEDURE

Hide Display 1. PRECAUTION

NOTICE:: Do not race the engine before replacing the compressor assembly with pulley.

Hide Display 2.RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REFRIGERANT (for HFC-134a(R134a))>REPLACEMENT201910,999999,_58,_083104,_0403061,RM100000001JNG0_01_0001,

Hide Display 16361A 3.REMOVE V-RIBBED BELT

Click hereGeneral>MAINTENANCE>M20D-FKS DRIVE BELT>REMOVAL201910,999999,_V1,_083136,_0403251,RM100000001JQLC,

Hide Display 17751 4.REMOVE NO. 1 INLET AIR CLEANER

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>THROTTLE BODY>REMOVAL201910,202304,_51,_083058,_0401818,RM100000001JDU0_01_0024,202304,999999,_51,_083058,_0401818,RM100000002AC3Q_01_0024,

Hide Display 86510A 5.REMOVE SECURITY HORN ASSEMBLY

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SECURITY HORN ASSEMBLY>REMOVAL201910,999999,_58,_083094,_0400685,RM100000001J9CT,

Hide Display 88704 6.DISCONNECT SUCTION HOSE SUB-ASSEMBLY

a.

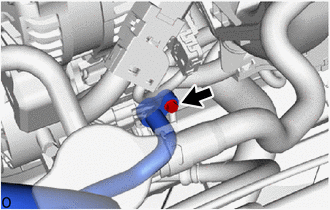

E406603

Remove the bolt and disconnect the suction hose sub-assembly.

NOTICE:: Do not apply excessive force to the suction hose sub-assembly.

b.

Remove the O-ring from the suction hose sub-assembly.

NOTICE:: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

Hide Display 88711 7.DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE

a.

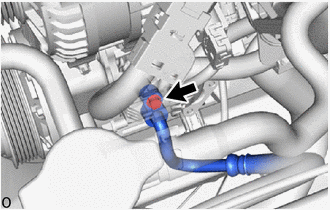

E406604

Remove the bolt and disconnect the No. 1 cooler refrigerant discharge hose.

NOTICE:: Do not apply excessive force to the No. 1 cooler refrigerant discharge hose.

b.

Remove the O-ring from the No. 1 cooler refrigerant discharge hose.

NOTICE:: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

Hide Display 88310 8.REMOVE COMPRESSOR ASSEMBLY WITH PULLEY

a.

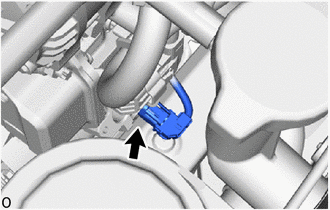

E406605

Disconnect the connector.

b.

for Type A:

i.

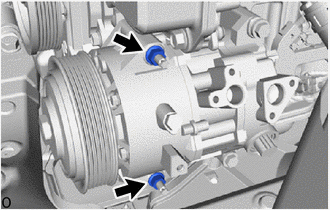

E406606

Remove the 2 nuts.

ii.

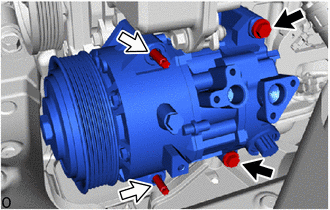

E406607C01

0,0 0,0 false

	Bolt
	Stud Bolt

Using an E8 "TORX" socket wrench, remove the 2 stud bolts, 2 bolts and compressor assembly with pulley.

c.

for Type B:

i.

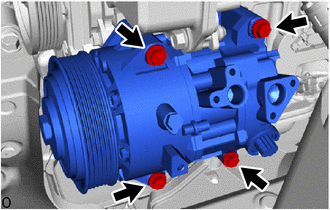

E414052

Remove the 4 bolts and compressor assembly with pulley.
