HEATING / AIR CONDITIONING  CONDENSER(for Gasoline Model)  DISASSEMBLY


PROCEDURE

Hide 88474 1.REMOVE COOLER DRYER

a.

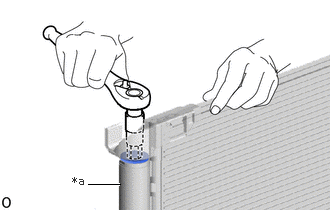

E407868C01
0.917,1.917 1.25,1.917 true 0.75,1.813 1.063,2.01 0.313,0.198 10 false *a
*a Modulator


Using a 14 mm straight hexagon socket wrench, remove the cap from the modulator.


b.

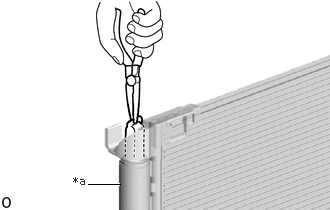

E407869C01
0.917,1.917 1.25,1.917 true 0.76,1.813 1.073,2.01 0.313,0.198 10 false *a
*a Modulator


Using needle-nose pliers, remove the cooler dryer from the modulator.
