HEATING / AIR CONDITIONING  REFRIGERANT LINE(for Gasoline Model)  REMOVAL

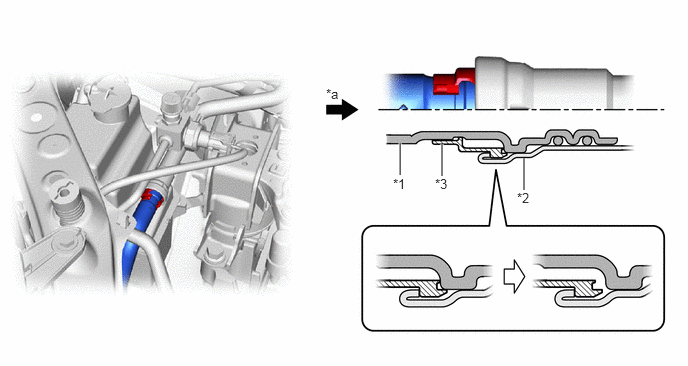

Press the suction hose sub-assembly to the suction tube sub-assembly B, and then release the piping clamp lock.

NOTICE:

Do not apply excessive force to the suction hose sub-assembly and suction tube sub-assembly B.

4.167,1.823 4.167,1.49 true 4.604,1.833 4.604,1.5 true 5.458,1.979 5.458,1.646 true 4.094,1.833 4.406,2.031 0.313,0.198 10 false *1 5.385,1.979 5.698,2.177 0.313,0.198 10 false *2 4.531,1.833 4.844,2.031 0.313,0.198 10 false *3 3.396,0.896 3.708,1.094 0.313,0.198 10 false *a

*1	Suction Hose Sub-assembly	*2	Suction Tube Sub-assembly B
*3	Piping Clamp	-	-
*a	Press In	-	-

While releasing the piping clamp lock, use pliers or another tool to pinch near the rear end of the piping clamp, and then disconnect the suction hose sub-assembly as you buckle it.

NOTICE:

·

If any foreign matter is attached to the connecting parts, brush it off or use compressed air to remove it before disconnecting the parts.

·

Make sure that fragments of the piping clamp do not enter the piping.

·

When the piping clamp is buckled, cracks form. Therefore, make sure to replace it with a new one.

·

Remove any foreign matter from the connecting parts of the suction hose sub-assembly and suction tube sub-assembly B.

4.313,2.667 4.313,2.333 true 5.479,2.813 5.479,2.479 true 4.583,2.667 4.583,2.333 true 4.24,2.688 4.552,2.885 0.313,0.198 10 false *1 5.396,2.833 5.708,3.042 0.313,0.208 10 false *2 4.5,2.688 4.813,2.896 0.313,0.208 10 false *3 4.802,2.802 5.115,3.01 0.313,0.208 10 false *a 4.802,0.792 5.115,1 0.313,0.208 10 false *a 3.781,1.729 4.094,1.938 0.313,0.208 10 false *b

*1	Suction Hose Sub-assembly	*2	Suction Tube Sub-assembly B
*3	Piping Clamp	-	-
*a	Buckle	*b	Pull Out
