AXLE AND DIFFERENTIAL  DIFFERENTIAL MOUNT CUSHION  INSTALLATION

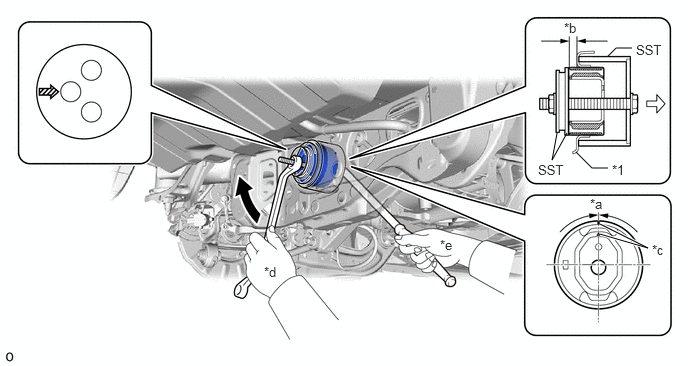

Using SST, install a new rear No. 1 differential mount cushion.

SST

09316-12010
09570-24011

5.802,1.385 5.75,1.667 5.75,1.667 5.906,1.385 false 6,1.583 6.167,1.75 6.167,1.75 6.333,1.75 false 6.333,0.583 6.417,0.5 6.417,0.5 6.583,0.5 false 6.25,2.438 6.75,2.583 6.75,2.583 6.25,2.333 true 6.375,1.688 6.708,1.938 0.333,0.25 10 false *1 6.146,2.042 6.563,2.375 0.417,0.333 10 false *a 5.875,0.208 6.208,0.458 0.333,0.25 10 false *b 2.75,2.75 3.083,3 0.333,0.25 10 false *d 4.583,2.469 4.917,2.719 0.333,0.25 10 false *e 6.625,0.438 7.042,0.688 0.417,0.25 10 false SST 5.604,1.688 6.021,1.938 0.417,0.25 10 false SST 6.792,2.521 7.146,2.76 0.354,0.24 10 false *c

*1	Rear Suspension Member Sub-assembly	-	-
*a	-3° to 3°	*b	9.8 to 10.8 mm (0.386 to 0.425 in.)
*c	Protrusion	*d	Turn
*e	Hold	-	-
	Turning Direction		Front of Vehicle
	SST Bolt Position	-	-

NOTICE:

·

Make sure that the rear No. 1 differential mount cushion is aligned within 3° from the center.

·

Install the rear No. 1 differential mount cushion so that the protrusion is positioned as shown in the illustration.

·

Be sure to use the correct combination of SST.

·

Before using SST, apply grease to SST bolt.

·

Temporarily install the rear No. 1 differential mount cushion to the rear suspension member sub-assembly in order to prevent it from tilting, and then install SST.

·

Make sure that SST contacts the entire circumference of the rear No. 1 differential mount cushion.

·

Do not tilt the bolts of SST.
