WIPER / WASHER
_0402381
WASHER NOZZLE
A
WIPER / WASHER WASHER NOZZLE INSTALLATION
PROCEDURE
85035
1.INSTALL WASHER NOZZLE SUB-ASSEMBLY
a.
Connect a new washer nozzle sub-assembly to the washer hose.
- HINT:
-
Insert washer hose to joint all the way.
b.
0,0 0,0
false
|
Install in this Direction (1) |
|
Install in this Direction (2) |

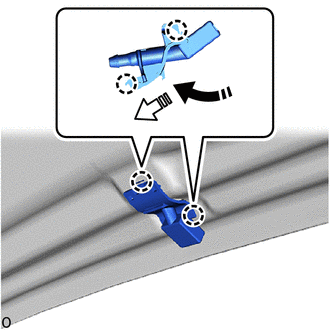

Attach the claw as indicated by the arrows, in the order shown in the illustration to install the washer nozzle sub-assembly.
53341B
2.INSTALL HOOD INSULATOR
85035
3.INSPECT WASHER NOZZLE SUB-ASSEMBLY
85035
4.ADJUST WASHER NOZZLE SUB-ASSEMBLY
