WIPER / WASHER  WASHER NOZZLE  ON-VEHICLE INSPECTION

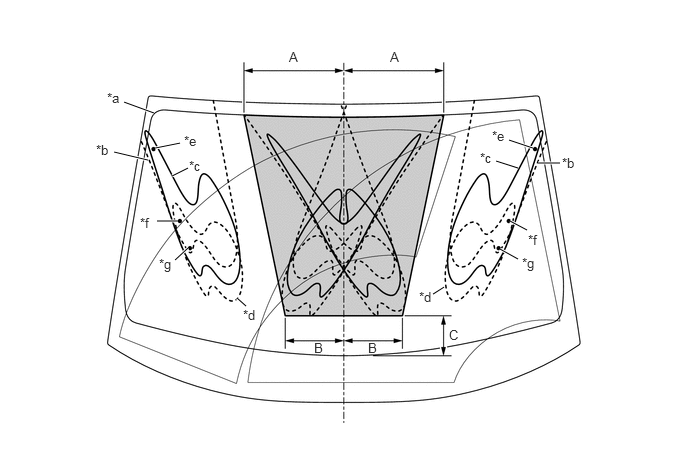

With the ignition switch to ON, check that the center stream of washer fluid sprays on the windshield within the hatched area shown in the illustration.

Standard:

Washer fluid hits the windshield in the area shown in the illustration.

1.292,1.063 1.604,1.177 true 1.188,1.583 1.542,1.667 true 1.615,1.542 1.875,1.49 true 1.792,1.833 1.958,1.75 true 1.635,2.302 1.854,2.302 true 1.823,2.708 1.958,2.583 true 2.469,3.104 2.563,3.188 true 4.51,3.063 4.625,2.99 true 5.396,2.698 5.208,2.594 true 5.313,2.302 5.49,2.396 true 5.604,1.698 5.833,1.698 true 5.167,1.677 5.396,1.75 true 5.302,1.458 5.552,1.542 true 3.01,0.51 3.344,0.854 0.333,0.344 10 false A 4.063,0.51 4.396,0.854 0.333,0.344 10 false A 3.271,3.542 3.604,3.885 0.333,0.344 10 false B 3.833,3.542 4.167,3.885 0.333,0.344 10 false B 4.677,3.406 5.01,3.75 0.333,0.344 10 false C 1.115,0.938 1.448,1.281 0.333,0.344 10 false *a 1,1.479 1.344,1.854 0.344,0.375 10 false *b 1.969,1.646 2.302,1.99 0.333,0.344 10 false *c 2.531,3.198 2.865,3.542 0.333,0.344 10 false *d 1.917,1.385 2.25,1.729 0.333,0.344 10 false *e 1.458,2.24 1.792,2.583 0.333,0.344 10 false *f 5.854,1.615 6.188,1.958 0.333,0.344 10 false *b 5,1.563 5.333,1.906 0.333,0.344 10 false *c 4.365,3.01 4.698,3.354 0.333,0.344 10 false *d 5.125,1.333 5.458,1.677 0.333,0.344 10 false *e 1.656,2.667 1.99,3.01 0.333,0.344 10 false *g 5.5,2.417 5.833,2.76 0.333,0.344 10 false *f 5.438,2.656 5.771,3 0.333,0.344 10 false *g

*a	Ceramic Edge	*b	Upper Limit
*c	Standard	*d	Lower Limit
*e	Tolerance MAX	*f	Tolerance NOMINAL
*g	Tolerance MIN	-	-
	Landing Area	-	-

Standard Measurement:

Area	Measurement	Area	Measurement
A	314.8 mm (1.03 ft.)	B	184 mm (7.24 in.)
C	125.1 mm (4.93 in.)	-	-
