HORN  HORN  INSTALLATION

86520 1.INSTALL LOW PITCHED HORN ASSEMBLY

a.

Connect the connector.

b.

for Type A:

i.

0.354,0.625 0.719,0.625 true 0.135,0.552 0.396,0.813 0.26,0.26 10 true *a

*a	Location
	Bolt
	Connector

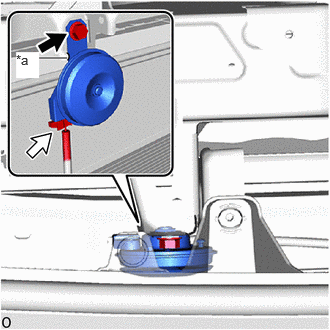

Align the stay of the low pitched horn assembly with the location on the body side.

c.

Install the low pitched horn assembly with the bolt.

Torque:

23 N*m (235 kgf*cm, 17 ft.*lbf)

86510 2.INSTALL HIGH PITCHED HORN ASSEMBLY

a.

Connect the connector.

b.

for Type A:

i.

0.365,0.604 0.698,0.604 true 0.167,0.542 0.406,0.813 0.24,0.271 10 true *a

*a	Location
	Bolt
	Connector

Align the stay of the high pitched horn assembly with the location on the body side.

c.

Install the high pitched horn assembly with the bolt.

Torque:

23 N*m (235 kgf*cm, 17 ft.*lbf)

16681A 3.INSTALL RADIATOR UPPER AIR GUIDE PLATE

53510 4.INSTALL HOOD LOCK ASSEMBLY

17751 5.INSTALL NO. 1 INLET AIR CLEANER (for Gasoline Model)

53301 6.INSPECT HOOD SUB-ASSEMBLY
